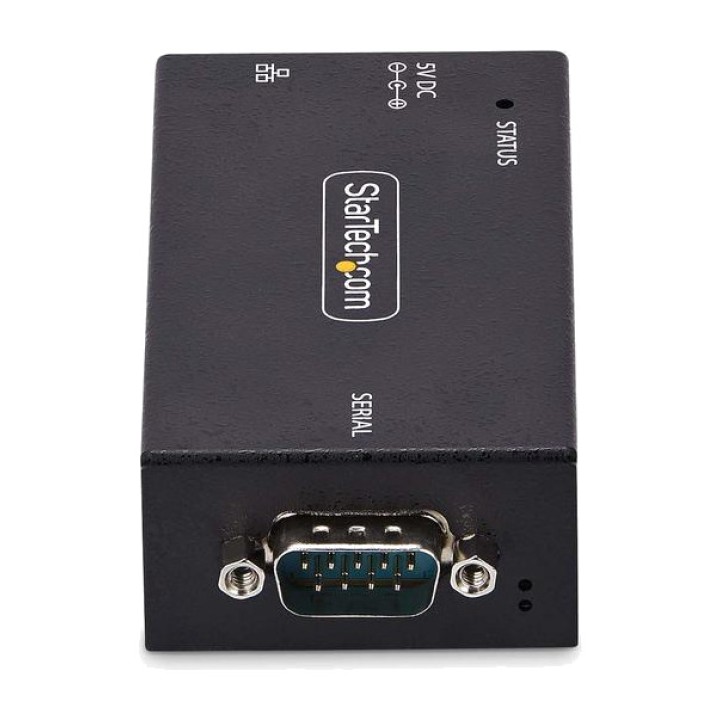

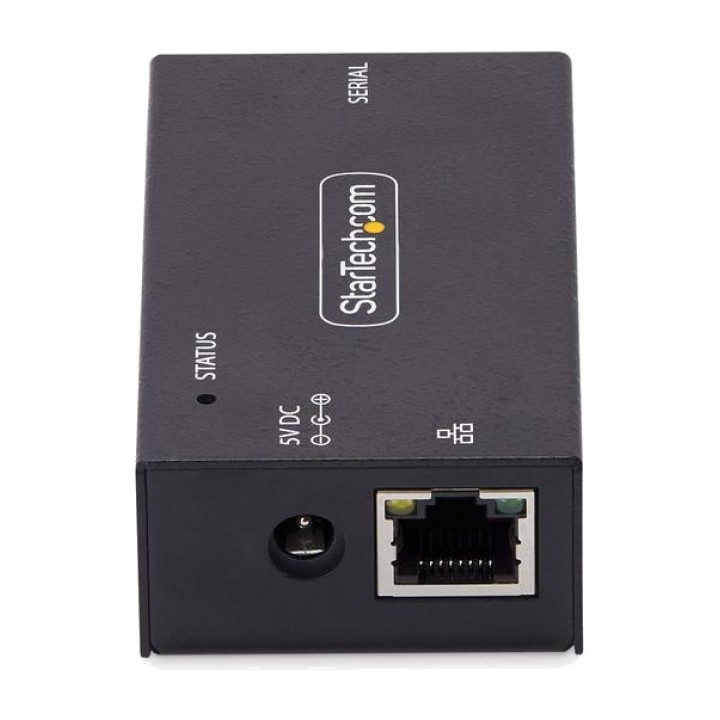

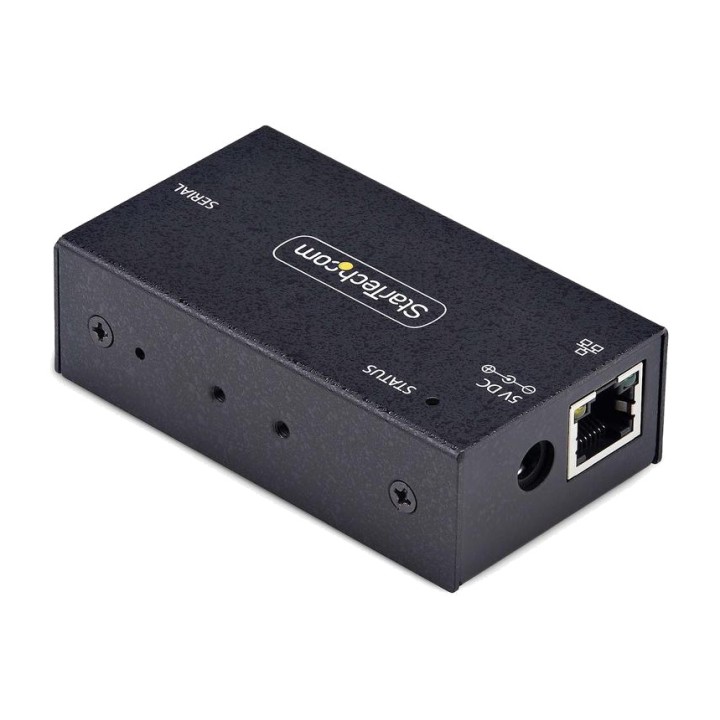

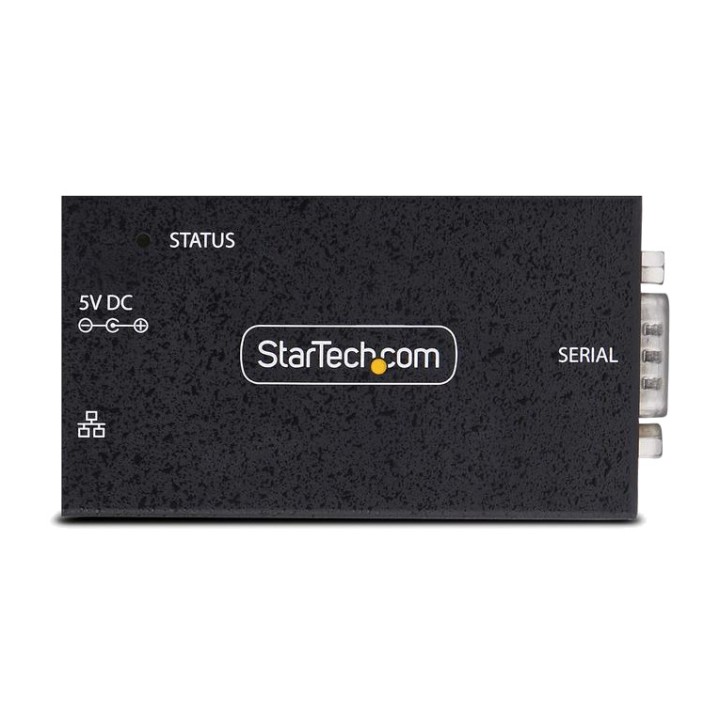

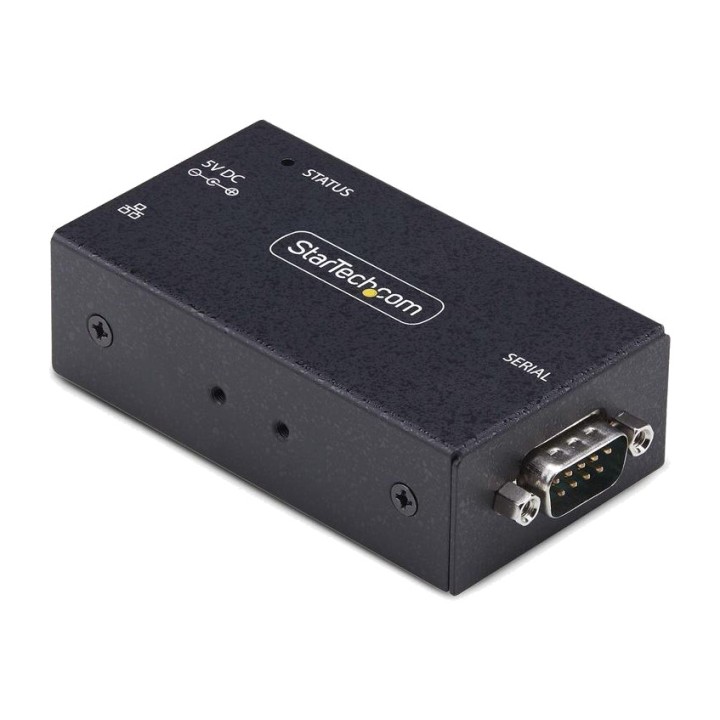

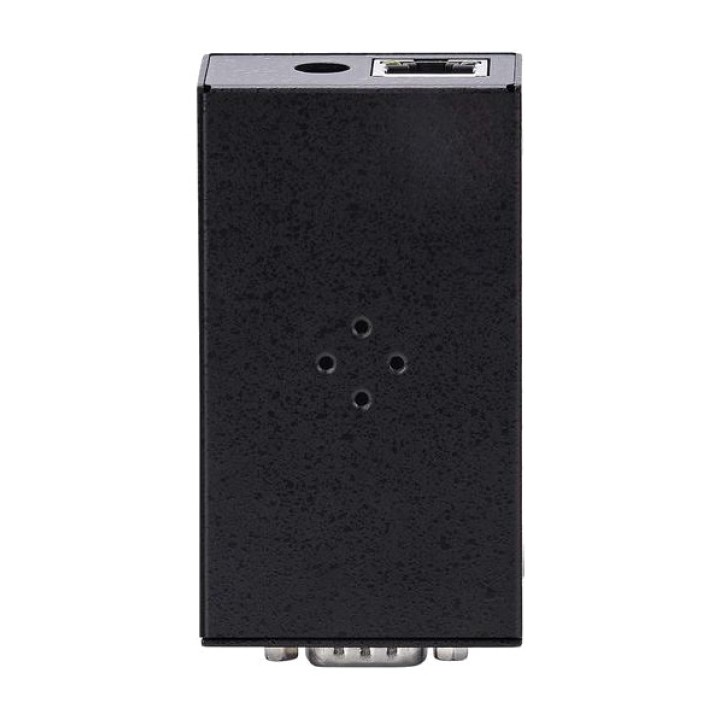

STARTECH.COM 1-port serial-to-Ethernet device server RS232 DB9 I13-SERIALETHERNET DSP0000040706

Features of the StarTech.com Serial-to-Ethernet Adapter I13-SERIAL-ETHERNET
The StarTech.com I13-SERIAL-ETHERNET is a 1-port serial device server designed to connect RS232 equipment remotely and securely over IP networks. This solution is ideal for professional and industrial environments where serial devices such as POS systems, CNC controllers, PLCs or weighing systems need to be managed over an Ethernet network infrastructure. Thanks to its robust metal enclosure, support for wall or DIN rail mounting, and high transmission speeds, this converter provides stable connectivity designed to operate in demanding conditions.
Remote RS232 connectivity over IP
This adapter converts an RS232 serial port into an Ethernet network connection to control and monitor devices remotely. Its DB9 port supports speeds of up to 921.6 Kbps, providing reliable and efficient communication in industrial and professional applications.

RS232 serial-to-Ethernet IP converter
DB9 port with speeds of up to 921.6 Kbps
Compatible with POS systems, CNC, PLCs and industrial devices

Centralized management and unified ecosystem
StarTech.com device servers share a unified web interface and software, making it easy to manage multiple devices on the same network. It also includes Windows software that lets you create virtual COM ports and manage devices easily.

Unified web management interface
Software for configuring virtual COM ports
Centralized management of network devices

Advanced configuration and versatile operation
The device supports different operating modes to suit various network scenarios, including TCP client and server modes for creating serial tunnels between device servers. It also allows you to export and import configurations, protect access with a password and update the firmware.

Compatible with Telnet (RFC2217), UDP and TCP
TCP client/server mode for serial tunnels
Password protection and updatable firmware

Ethernet connection and power options
It features a 10/100 Mbps RJ45 Ethernet port with auto-negotiation, ensuring compatibility with different network infrastructures. It includes a power adapter and also supports 5V power through pin 9 for certain compatible serial devices.

RJ45 Ethernet port 10/100 Mbps
Autonegotiation support
5V power supply support via pin 9

Durable industrial design and flexible mounting
Its metal housing offers high durability in industrial and professional environments. It also features level 4 ESD protection to minimize risks from electrostatic discharges and is supplied with accessories for wall or DIN rail mounting.

Level 4 ESD protection: 15kV air / 8kV contact

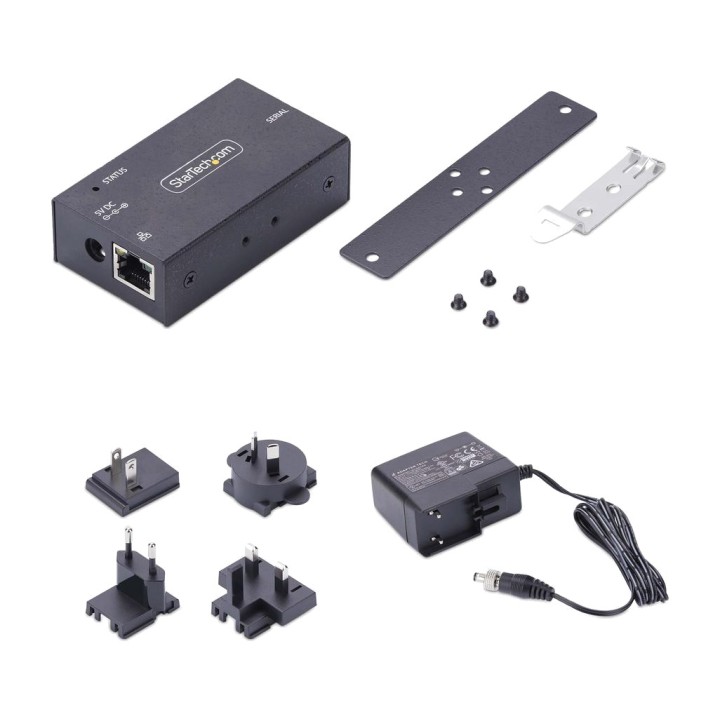

Wall and DIN rail mounting included
Dimensions: 46,1 x 25 x 81,9 mm

Other specifications

TAA certification
1-port serial device server
Part of the StarTech.com SERIAL-ETHERNET family
Related models available with PoE and multiple ports
Volume (m ³): 0.0026
