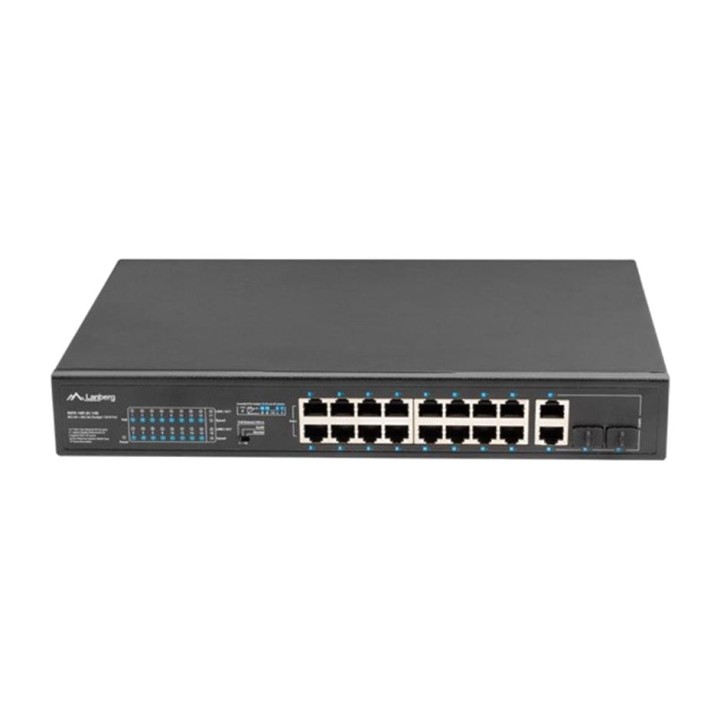

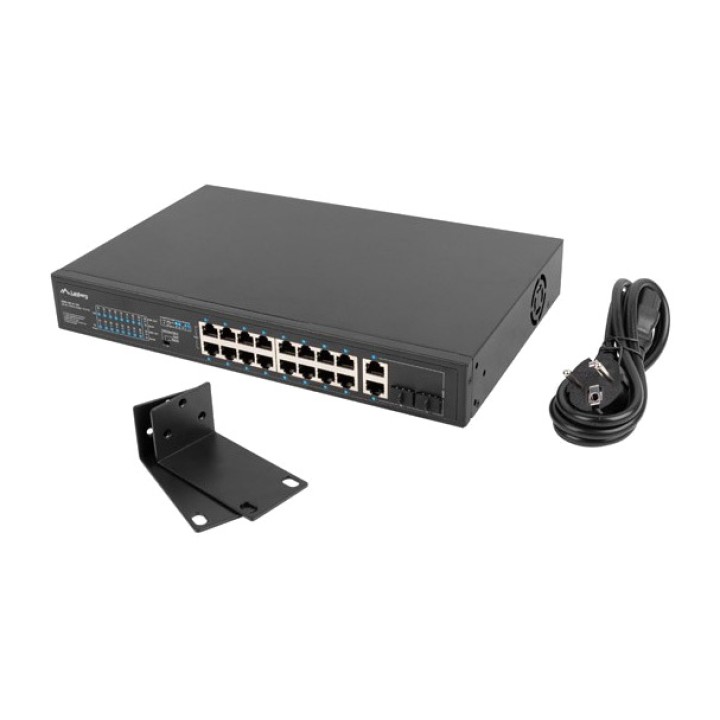

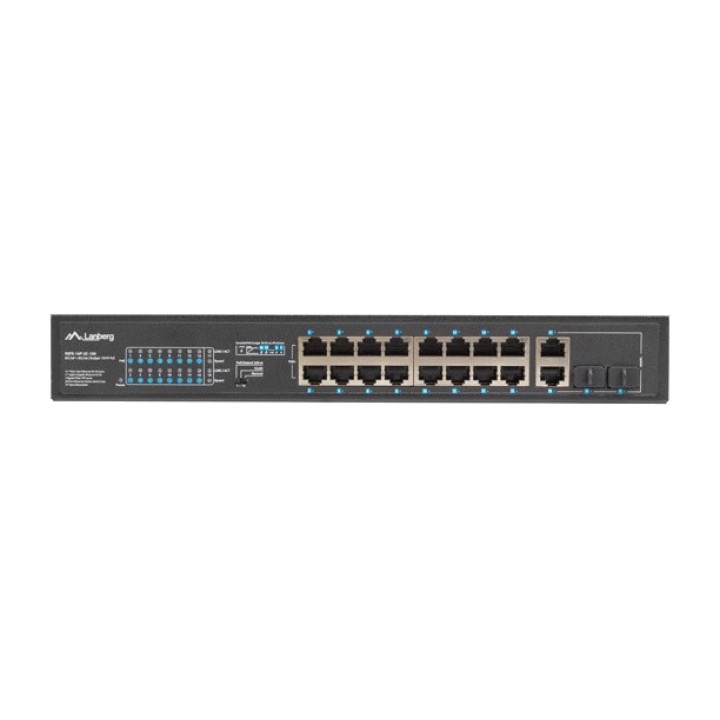

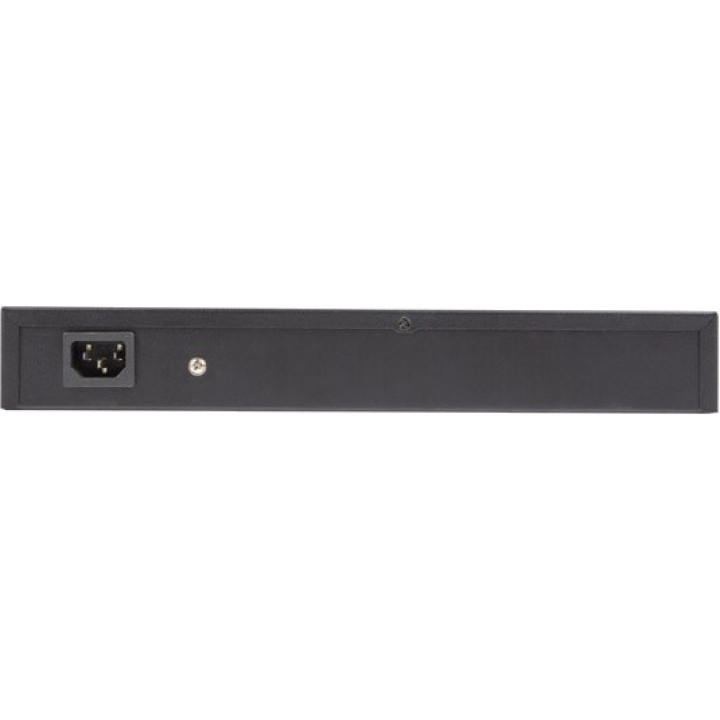

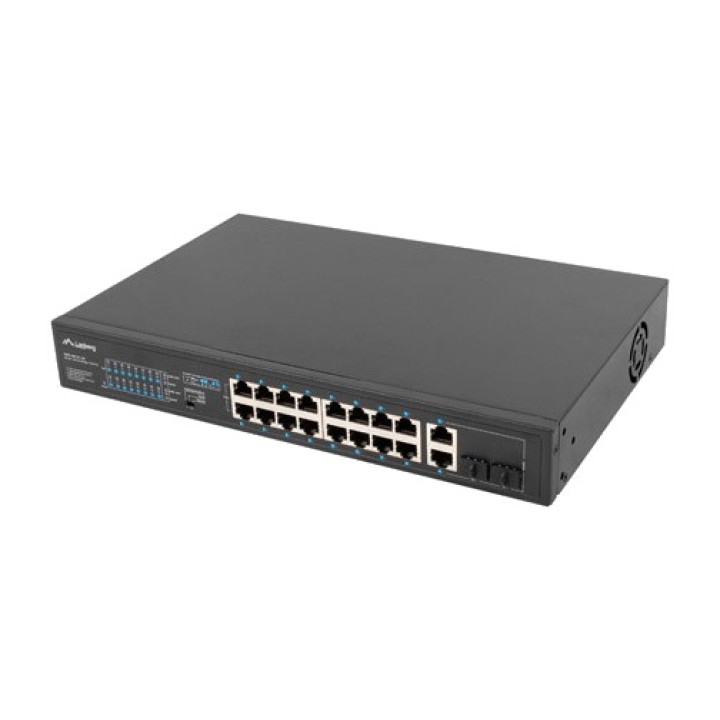

LANBERG 18-port unmanaged PoE+ switch with combo SFP uplink for rack mounting 16X100MBPS 2X1GBPS 150W RSFE-16P-2C-150 DSP0000032

-PORTS AND CONNECTIVITY
It has a total of 18 Ethernet ports, including 16 100 Mbps LAN ports with PoE+ support and 2 combo ports (RJ45 or SFP) at 1 Gbps for fibre-optic or Ethernet connections. The latter function as Combo UpLink ports, allowing greater connection flexibility.
-POE (POWER OVER ETHERNET)
It has 16 PoE ports compatible with the 802.3af and 802.3at standards, with support for PoE and PoE+. It provides a total output of 150 W and a maximum power of 30 W per port. It includes advanced features such as intelligent PoE port disconnection and Extender mode.
-PHYSICAL FEATURES

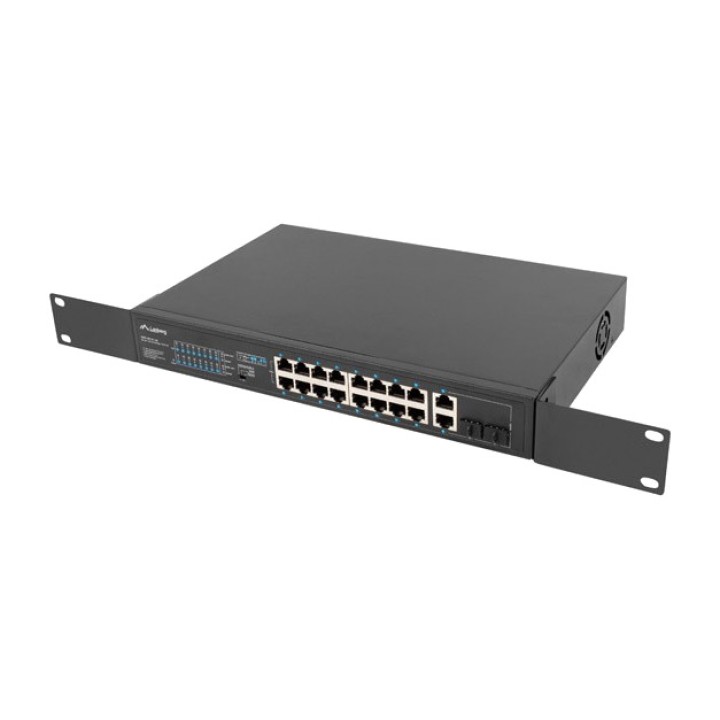

Designed for mounting in 19” racks, with a height of 1U. Its metal construction ensures strength and durability in demanding environments.
-USE AND ENVIRONMENT
Suitable for installations in rack cabinets and industrial environments. It has an IP20 protection rating and active fan cooling. The recommended operating temperature is 5 to 55 °C, with a relative humidity of 0 to 80 %.
-PERFORMANCE AND CAPACITY
It offers a switching capacity of 7.2 Gbps, a 4 Mbit buffer and a MAC address table with capacity for 16,000 entries. It features VLAN functionality and Plug and Play operation, with no configuration required.
-POWER SUPPLY AND CONSUMPTION
Requires a 100~240V AC power supply and has a maximum power consumption of 150 W. It incorporates surge protection of up to 6 kV.
-INDICATORS AND STANDARDS
Includes LED indicators and complies with the IEEE 802.3af, 802.3at, 802.3i, 802.3u and standards 802.3x.
-DIMENSIONS AND WEIGHT
Its dimensions are 320 mm wide, 208 mm long and 45 mm high, with a total weight of 1.9 kg.
Volume (m ³): 0.0096
