AOC Office monitor B3 24B3HA2 23,8" FHD 120HZ DSP0000042332

Features of the AOC 24B3HA2 23.8" IPS 100 Hz 1 ms Monitor
The AOC 24B3HA2 is a 23.8" monitor designed for work, study, multimedia and gaming with smooth visuals. It combines a Fast IPS panel with Full HD resolution, a 100 Hz refresh rate and 1 ms MPRT, delivering good visual response for both everyday use and fast-moving content. It also features Adaptive Sync, Flicker-Free technology, built-in speakers and various connectivity options.
Full HD Fast IPS panel 23.8"
Its 23.8" flat screen with Fast IPS technology provides a resolution of 1920 x 1080 pixels and wide 178° viewing angles. The anti-glare coating helps reduce reflections, while its 16:9 format is suitable for productivity applications, browsing, video and entertainment.

Screen size: 23.8" (60 cm)
Panel type: Fast IPS
Resolution: 1920 x 1080 pixels
Aspect ratio: 16:9
Backlighting: WLED
Panel coating: anti-glare (AG)
Viewing angle (CR10): 178°/178°
Brightness: 250 cd/m²
Display colours: 16.7 million (6 bits + FRC)
Pixel pitch: 0.2745 mm
Density: 93 pixels per inch
Panel Haze Value: 25%
Dimming: Global Dimming

100 Hz, 1 ms MPRT and Adaptive Sync
The maximum 100 Hz refresh rate delivers smoother motion than conventional lower-frequency screens. Combined with a 1 ms MPRT response time and Adaptive Sync technology, it is especially useful for achieving a smoother visual experience in games, videos and dynamic content.

Maximum refresh rate: 100 Hz
MPRT response time: 1 ms
GTG response time: 4 ms
Typical OD response: 4 ms GtG
VRR technology: Adaptive Sync
Vertical digital signal frequency: 48 - 180 Hz
Horizontal digital signal frequency: 30 - 115 kHz
HDR: HDR Mode
Flicker-Free technology

Colour reproduction
The AOC 24B3HA2 offers 100.1% coverage of the sRGB colour space according to CIE 1931. Its specifications also include values for DCI-P3, Adobe RGB, NTSC, BT.709 and BT.2020, providing a detailed overview of the panel’s colour capabilities.

sRGB CIE 1931: 100.1%
sRGB CIE 1976: 95.2%
DCI-P3 CIE 1931: 73.8%
DCI-P3 CIE 1976: 73.8%
Adobe RGB CIE 1931: 74,2%
Adobe RGB CIE 1976: 81,6%
NTSC CIE 1931: 70.9%
NTSC CIE 1976: 83%
BT.709 CIE 1931: 100.1%
BT.709 CIE 1976: 95.2%
BT.2020 CIE 1931: 53%
BT.2020 CIE 1976: 55.2%

HDMI and VGA connectivity
To make it easy to connect to different devices, the monitor features HDMI 1.4 and a D-SUB (VGA) input. It also has an audio output and HDCP 1.4 compatibility, providing options for both current devices and equipment that still uses a VGA connection.

1 x HDMI 1.4
1 x D-Sub (VGA)
1 x audio output
HDCP 1.4

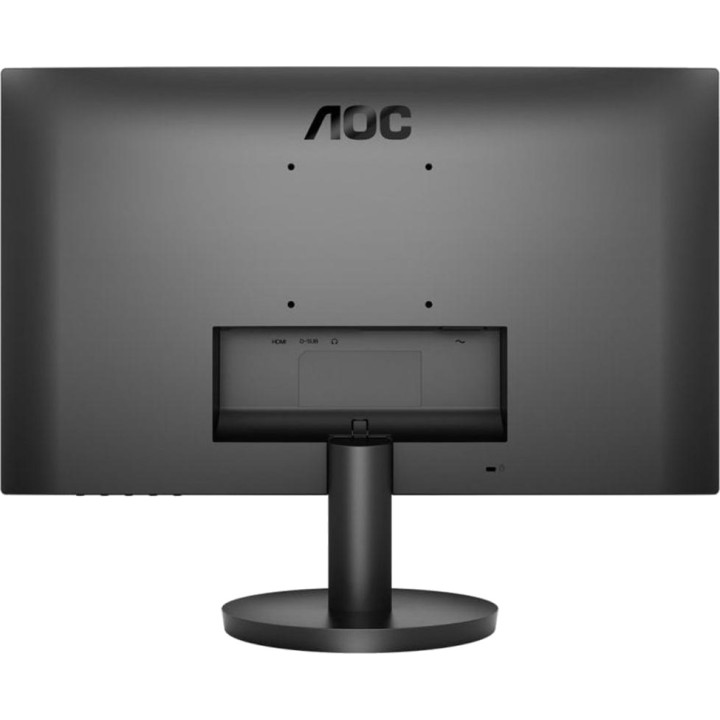

Built-in speakers and VESA mounting
The integrated 2 W + 2 W stereo speakers let you play sound without needing to install external speakers for everyday tasks. The 100 x 100 mm VESA mount makes it easy to install the monitor on compatible arms or mounts, while the removable stand and Quick Release function simplify setup.

Built-in speakers : 2 W x 2
VESA mount: 100 x 100 mm
Screws VESA: M4 x 10
Tilt: -5° (+3°/-0°) to +23° (-3°/+0°)
Quick Release function
Removable foot
Kensington lock

Power consumption, dimensions and contents
The monitor uses an internal power supply compatible with 100 - 240 V and 50/60 Hz. Its typical power consumption during operation is 20 W, while its dimensions and weight make it easy to integrate into desks intended for work, study or entertainment.

Power supply: internal
Power supply: 100 - 240 V, 50/60 Hz
Maximum power consumption when on : 32 W
Typical power consumption when on : 20 W
Standby power consumption : 0,5 W
Power consumption when off : 0,3 W
Dimensions: 542,4 x 412,1 x 202,3 mm
Weight: 3,54 kg
Contents: 1 x 1.5 m HDMI cable
Contents: 1 x power cable
Volume (m ³): 0.0309
