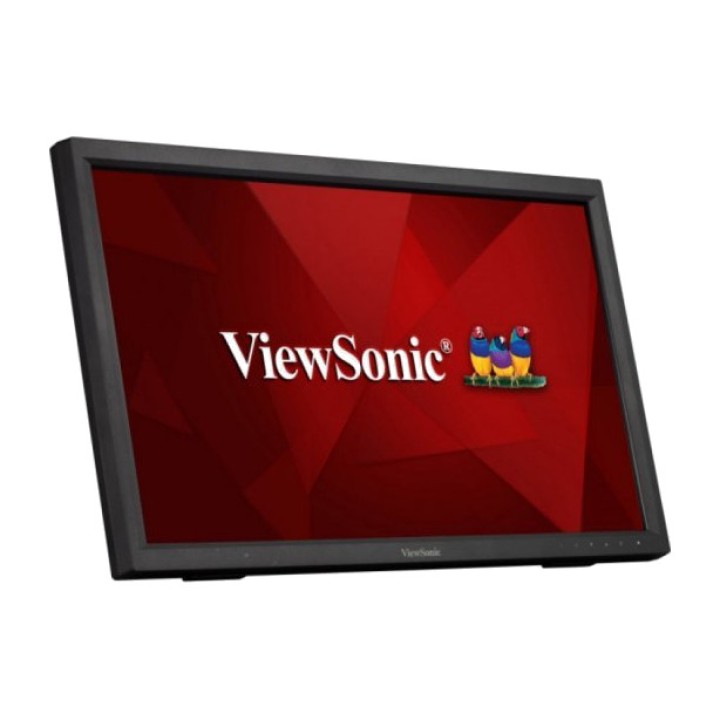

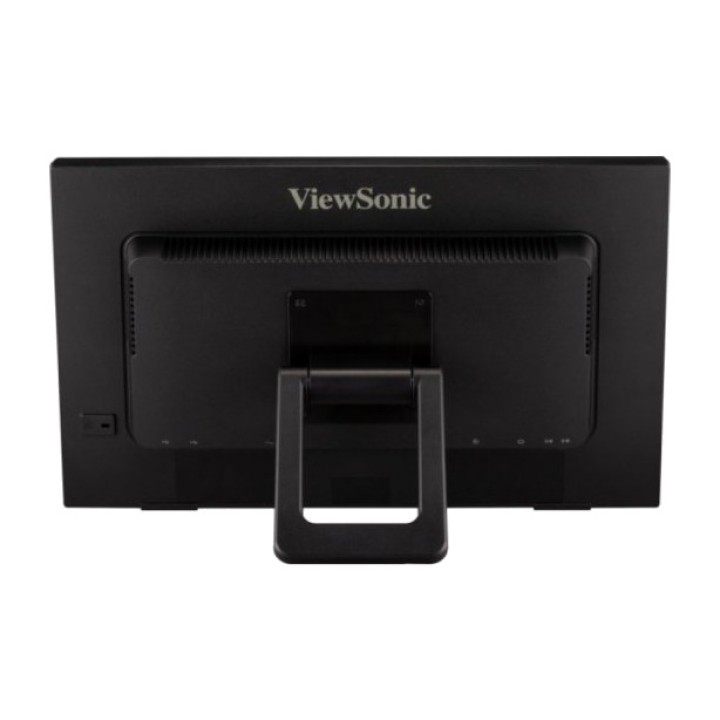

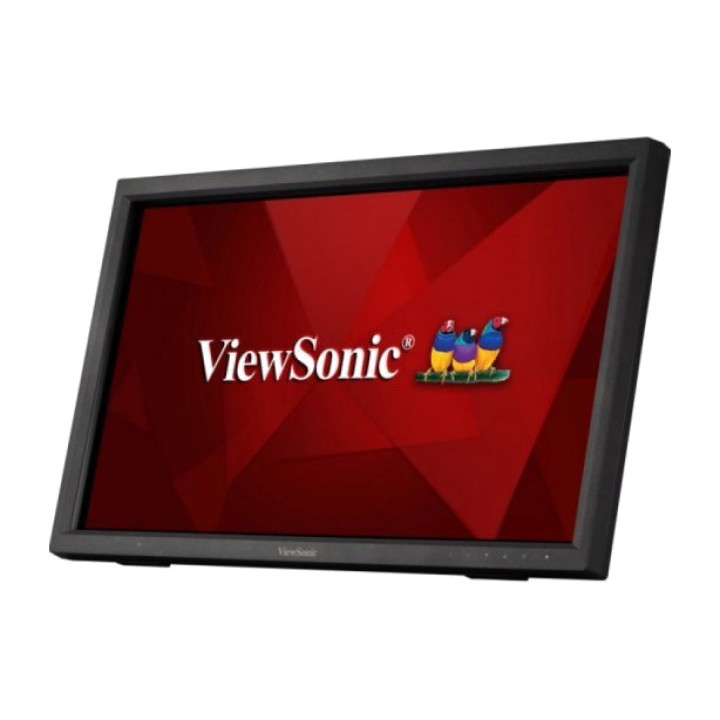

VIEWSONIC Touchscreen monitor TD2223 21,5" FULL HD DSP0000002451

ViewSonic TD2223 is a 22" IR touchscreen designed for intuitive multitouch use
.

The infrared (IR) touchscreen can detect up to 10 touch points
compared with optical touchscreens and can be operated with a stylus,
fingers and gloved hands. Multitouch input is more accurate and the screen is
faster.

With an adjustable tilt, you can easily interact with the TD2223 in
an ideal position. This monitor features Full HD resolution to provide you with
clear images and is built with a scratch-resistant 7H hardness screen to protect the
surface from damage.

To support your work, the TD2223 is equipped with VGA, HDMI, DVI and
USB.

Characteristic
Intuitive 10-point touchscreen
Compatible with finger, stylus and glove touch
Magnetic pen holder
Adjustable rear tilt up to 40 degrees
Scratch-resistant 7H hardness screen
specs
Display
Screen diagonal: 54.6 cm (21.5")
Screen resolution: 1920 x 1080 pixels
Screen type: TN
HD type: Full HD
Display technology: LED
High-frequency motion rate: 75 Hz
Native aspect ratio: 16:9
Response time: 5 ms
Screen brightness: 250 cd / m
Contrast ratio (typical) : 1000:1
Pixel size: 0.248 x 0.248 mm
Horizontal scan range: 24 - 82 kHz
Vertical scan range: 50 - 75 Hz
Viewing angle, horizontal : 170
Viewing angle, vertical : 160
Contrast ratio (dynamic) : 20000000:1
Number of screen colors: 16.78 million colors
Design
Product colour: Black
Glass thickness: 2 mm
Performance
Touch technology: Multi-touch
Touchscreen technology: Infrared
Touchscreen type: Multi-usuario
Number of simultaneous touch points: 10
Built-in speakers: Yes
Estimated power RMS: 4 W
Number of speakers : 2
Built-in camera: No
Built-in microphone: No
Ports and Interfaces
Built-in USB connector: Yes
Number of ports USB 2.0: 3
HDMI: Yes
Number of ports HDMI: 1
HDMI version: 1.4
Number of VGA (D-Sub) ports : 1
DVI port: Yes
Number of ports DVI-D: 1
Microphone input jack: Yes
Headphone output: Yes
Headphone outputs : 1
Ergonomics
Tilt angle : 22 - 38
TILT: YES
Mounting panel interface: 100 x 100 mm
Wall mounting: Yes
Security cable slot: Yes
Cable lock slot type: Kensington
Power control
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 14 kWh
Power supply type: AC
Energy consumption : 12,5 W
Power consumption (ma x): 14 W
Power consumption (idle) : 0,5 W
Input voltage AC: 100-240 V
AC input frequency: 50/60 Hz
Environmental conditions
Operating temperature range : 0 - 40 C
Relative humidity range for operation : 20 - 90%
Regulatory approvals
Certification: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico
Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS,
PSE, CCC, China RoHS, China Energy Label, CECP
WEIGHT AND DIMENSIONS
Width (without stand): 52.1 cm
Depth (without stand): 6.1 cm
Height (without stand): 31.8 cm
Weight (without stand): 3.9 kg
Device width (with stand): 521 mm
Device depth (with stand): 101 mm
Device height (with stand): 334 mm
Weight (with stand): 4.5 kg
Packaging
Package width: 580 mm
Package depth: 164 mm
Package height: 405 mm
Package weight: 6 kg
Package contents
Cables included: AC, Audio (3.5 mm), HDMI, USB Type-A to USB Type-B
Stand included: Yes
Technical details
Sustainability certificates: ENERGY STAR, REACH, RoHS
Volume (m ³): 0.0371
