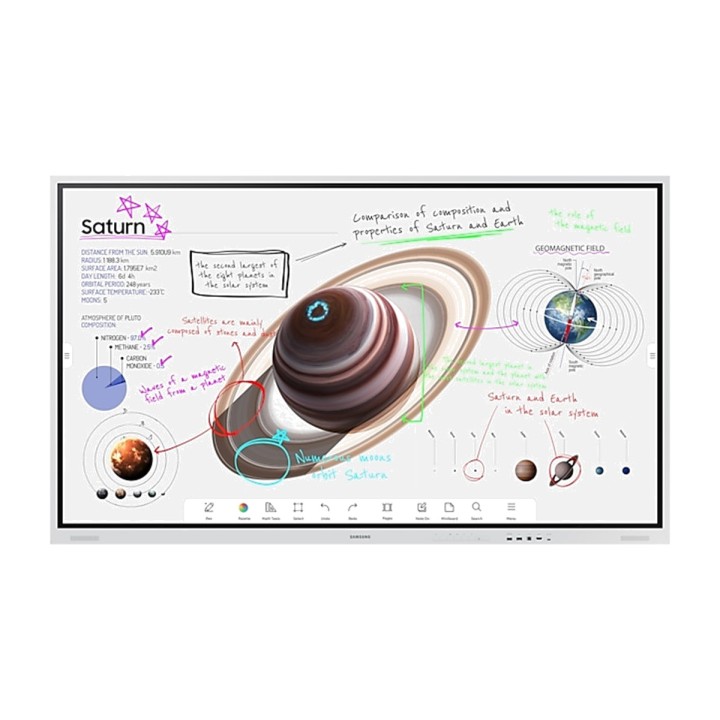

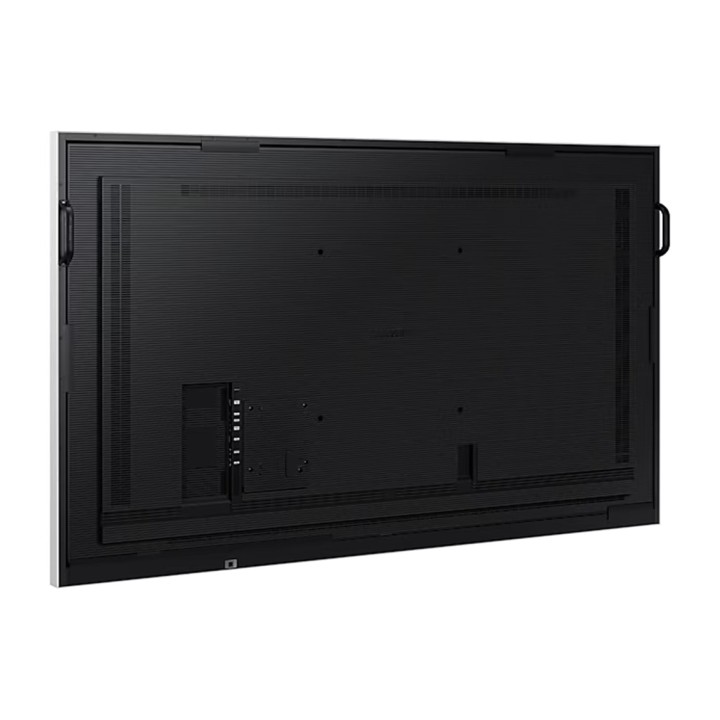

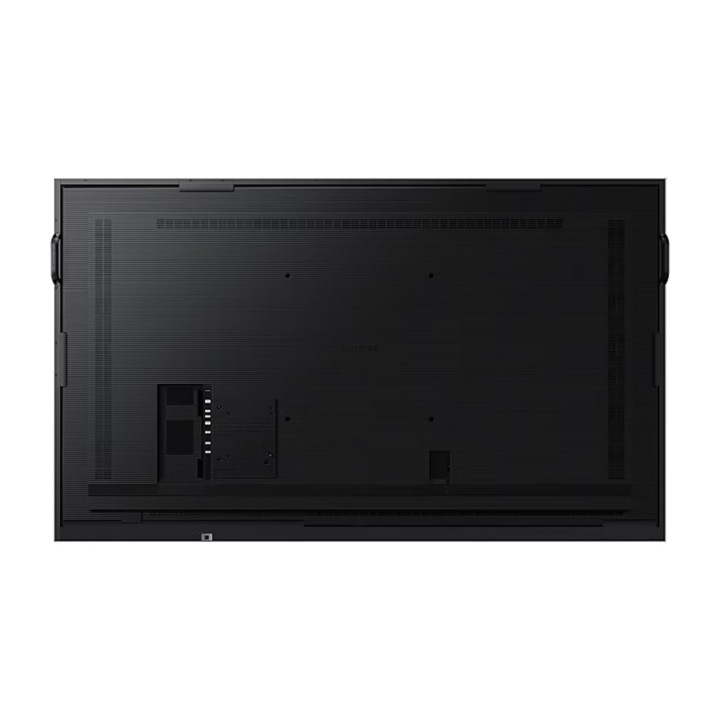

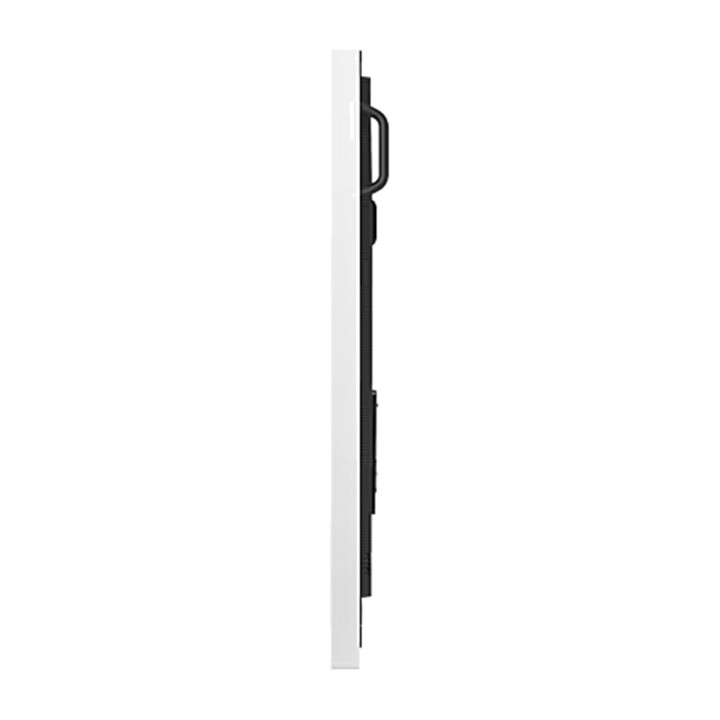

SAMSUNG 85-inch 4K interactive touchscreen display FLIP-PRO WM85B MGS0000018270

specs

Panel
VA
RESOLUTION
3,840 x 2,160
Screen
85"

DETAIL OF SPECIFICATIONS
Screen

Screen size
85"
Panel
VA
RESOLUTION
3,840 x 2,160
Pixel size (H x V)
0.4875(H) mm x 0.4875(W) mm
Brightness (Normal)
350 (w/o glass), 220 (w/glass)
CONTRAST
4000:1 (without glass)
Viewing Angle (H/V)
178/178
RESPONSE TIME
8ms
Color gamut
72%
Glass Haze
2% (without glass)
H-Scanning Frequency
30~81khz
Maximum Pixel Frequency
594Mhz
V-Scanning Frequency
48~75hz
Contrast Ratio (Dynamic)
N / A
Supported Operating Time
16/7

Connectivity

HDMI In
2
DP In
1
DVI In
N / A
HDMI version
2.0
DP version
1.2
HDCP version
2.2
Tuner In
N / A
USB
4 (A type: Front 2, Rear 1, C Type: Front 1)
IR In
N / A
HDBaseT In
N / A
Audio Input
N / A
Audio Output
Stereo Mini Jack
Video output
N / A
Power Out
N / A
RS232 In
YES
RS232 Out
N / A
RJ45 In
YES
RJ45 Out
N / A
WiFi
YES
3G Dongle
N / A
Bluetooth
YES

Maximum intensity

Power supply
AC100-240V 50/60Hz
Power consumption (Off)
N / A
Power consumption (On)
528W(100-240V), 506W(220-240V), OPS(16V/4.5A)
Power consumption (Standby)
0.5W

DIMENSIONS

Dimensions (WxHxD)
1945.8 x 1151.1 x 89 mm
Packaged dimensions (WxHxD)
2136 x 1318 x 260 mm

WEIGHT

Net weight
75.2 kg
Weight with box (kg)
91.6 kg

Operation

Temperature
0~40
Humidity
10 ~ 80%, non-condensing

Mechanical characteristics

VESA mount
600 x 400 mm
Bezel width
20.4mm(T/LR), 44.7mm(B)
Frame Material
Metal(Aluminum)

Optional features

Touch
YES
MOUNT
Yes (Model Name : WMN8200SF)
Pedestal
N / A

SoC

OS Version
Tizen 6.5
Flash Memory Size
32GB

ECO functions

Energy Efficiency Class
N / A

Touch

Touch Technology
IR

CERTIFICATION

EMC
Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner: KN32 / KN35 Tunerless: KN32 / KN35 CE (Europe) EN55032: 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI
CISPR32:2016 CCC (China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 (ITE EMI) CNS14336-1 (ITE Safety) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST
(Russia /CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005
SECURITY
CB (Europe): IEC60950-1/EN60950-1 CCC (China): GB4943.1-2011 PSB (Singapore): PSB+IEC60950-1 NOM (Mexico): NOM-001-SCFI-1993 IRAM (Argentina): IRAM+IEC60950-1 SASO (Saudi Arabia):
SASO+IEC60950-1 BIS (India): IEC60950-1 / IS13252 NOM (Mexico): Tuner: NOM-001-SCFI-1993 Tunerless: NOM-019-SCFI-1998 KC (Korea): K 60950-1 EAC (Russia): EAC+IEC60950-1 INMETRO (Brazil):
INMETRO+IEC60950-1 BSMI (Taiwan): BSMI+IEC60950-1 RCM (Australia): IEC60950-1/AS/NZS 60950-1 UL (USA): c UL60950
Volume (m ³): 0.7320
