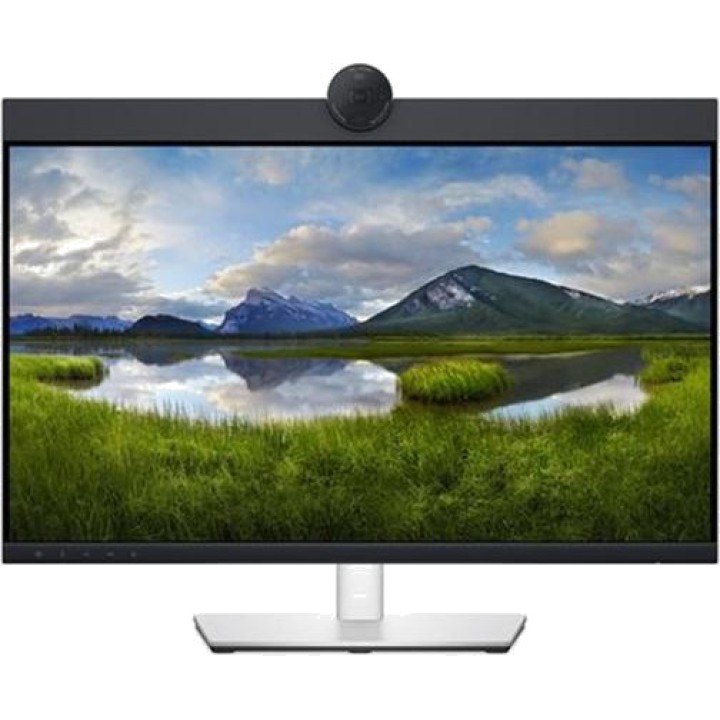

DELL IPS video conferencing monitor with camera and USB-C hub P2424HEB 23,8" FHD 60HZ DSP0000024053

Data sheet
general
Display type LED-backlit LCD monitor / TFT active matrix
Energy class Class E
Diagonal size 24"
Viewable size 23.8"
Integrated devices: 2 microphones, IR camera, proximity sensor, USB 3.2 Gen 1/USB-C hub, RGB camera, IR sensor
USB power delivery 90 watts
Panel type IPS
Aspect ratio 16:9
Native resolution Full HD (1080p) 1920 x 1080 at 60 Hz
Pixel pitch 0.2745 mm
Pixels per inch 92.56
Brightness 250 cd/m
Contrast ratio 1000:1
Color support 16.8 million colors
Color gamut 99% sRGB
Response time 5 ms (gray-to-gray fast), 8 ms (gray-to-gray normal)
Vertical refresh rate 56 - 76 Hz
Horizontal refresh rate 30 - 83 kHz
Horizontal viewing angle 178
Vertical viewing angle 178
Screen coating Anti-glare, 3H Hard Coating
Backlight technology LED backlight
Features Integrated cable management system, Flicker Free technology, supports daisy chaining, mercury-free, OSD controller, arsenic-free glass, Dell Easy Arrange, 3-sided bezel-less design
sides, Dell ComfortView Plus
Dimensions (Width x Depth x Height) 53.804 cm x 18.5 cm x 40.162 cm - with stand (lowest position)
Weight 6.08 kg
Integrated webcam
Maximum video resolution 2560 x 1440 at 30 fps
Digital zoom 4
Features Privacy shutter, Auto Focus, 78° field of view, compatible with Windows Hello
Audio
Type Stereo speakers
Output power / Channel 5 watts

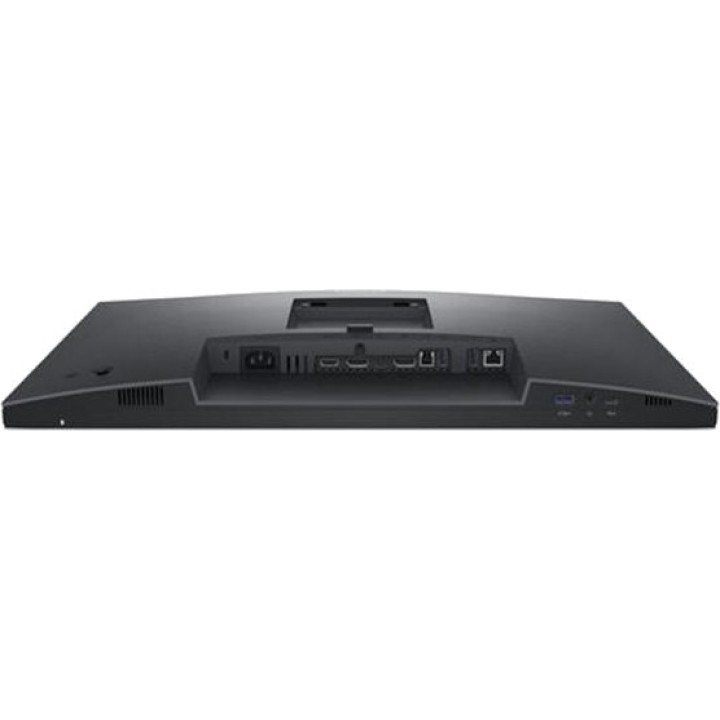

Connectivity
Interfaces HDMI (HDCP 1.4)
DisplayPort 1.2 (HDCP 1.4)
USB-C 3.2 Gen 1/DisplayPort 1.2 Alt Mode (power delivery up to 90 W)
DisplayPort output (MST)
USB-B upstream 3.2 Gen 1
USB 3.2 Gen 1 (BC 1.2)
2 x USB 3.2 Gen 1
LAN
Audio output (mini jack)
USB-C downstream 3.2 Gen 1 (data only)
MECHANIC

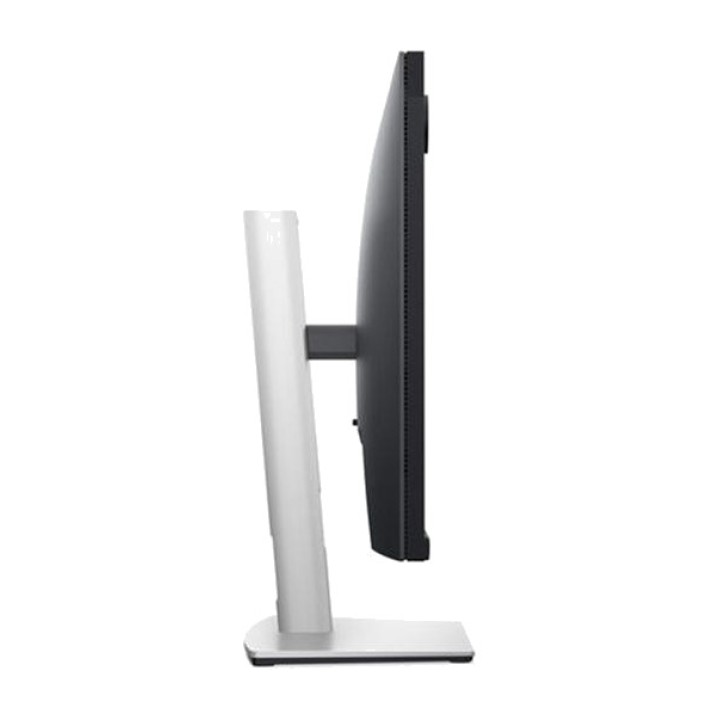

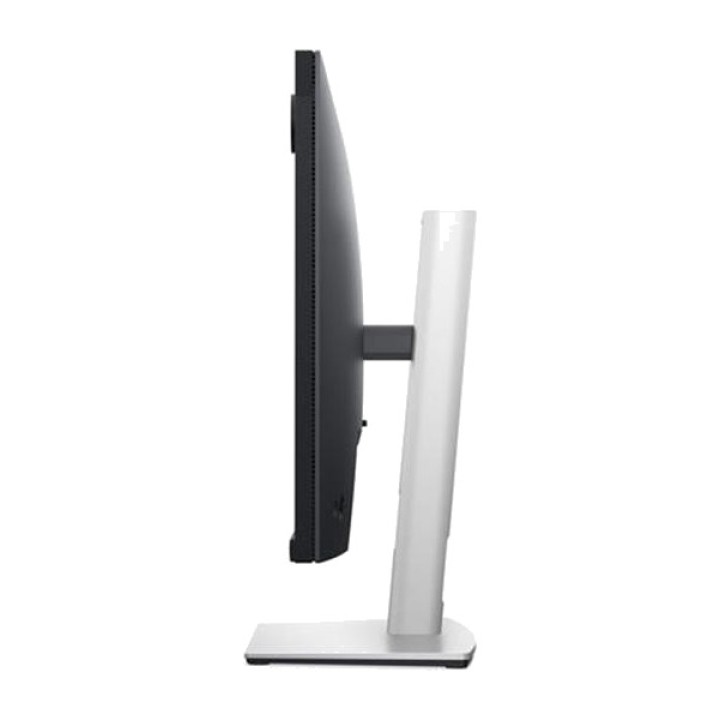

Screen position adjustments Height, pivot (rotation), swivel, tilt
Tilt angle -5/+21
Turning angle 90
Rotation angle 180
Height adjustment 150 mm

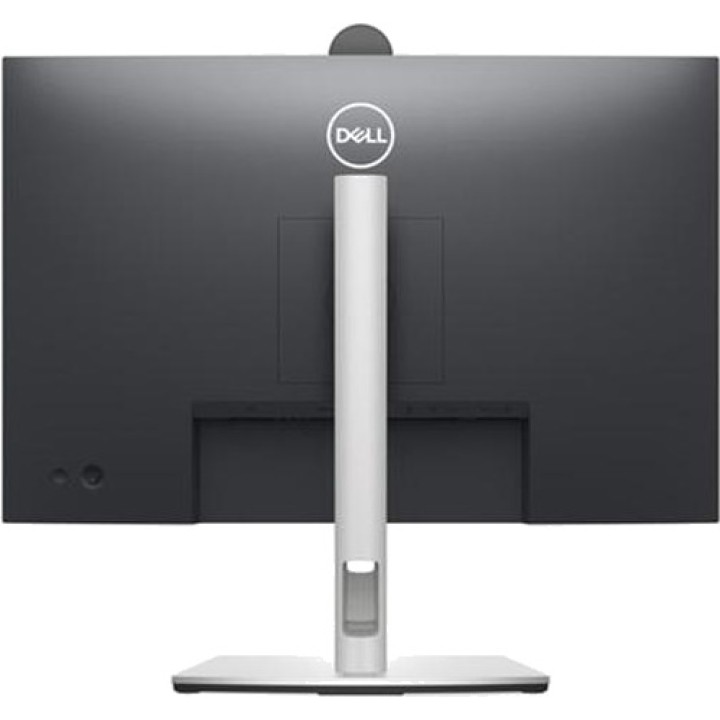

VESA 100 x 100 mm mounting interface
Miscellaneous
Features Security lock slot (cable lock sold separately), supports VESA interface, anti-theft stand lock slot, Dell Power Button Sync
Cables included 1 x DisplayPort cable - DisplayPort to DisplayPort - 1.8 m
1 x USB 3.2 Gen 1 upstream cable - USB Type-A to C - 1.8 m
1 x USB-C - USB-C cable - 1.8 m
Software certification Zoom Certified, Certified for Microsoft Teams, Microsoft Cortana certified
Standards compliance Plug and Play, RoHS, NFPA 99, BFR-free, PVC-free
Pricing type BTO
Security slot type Kensington security slot
Feeding
AC input voltage 100-240 V (50/60 Hz)
Power consumption (On mode) 15.5 W
SDR power consumption (On mode) 15.5 kWh/1000h
Power consumption (typical) 15.38 watts
Power consumption (max.) 195 watts
Power consumption standby 0.3 watts
Power consumption (off mode) 0.3 watts
Software / System requirements
Included software Dell Display Manager, Dell Peripheral Manager
Required operating system Windows 10, Apple MacOS 12.4 or later, Windows 11 (version 21H2)
Dimensions and weight
Dimensions and weight details With stand (lowest position) - width:53.804 cm - depth:18.5 cm - height:40.162 cm - weight:6.08 kg
With stand (highest position) - width:53.804 cm - depth:18.5 cm - height:55.162 cm - weight:6.08 kg
Without stand - width:53.804 cm - depth:6.053 cm - height:37.455 cm - weight:4.44 kg
Dimensions and weight (packaging)
Packaging weight 8.43 kg
Sustainability information
ENERGY STAR certified Yes
Version ENERGY STAR 8.0
Manufacturer's warranty
Included services 3 years of Basic Hardware Service with Advanced Exchange after remote diagnosis
Environmental parameters
Minimum operating temperature 0 C
Maximum operating temperature 40 C
Operating humidity range 10 - 80% (non-condensing)
Volume (m ³): 0.0444
