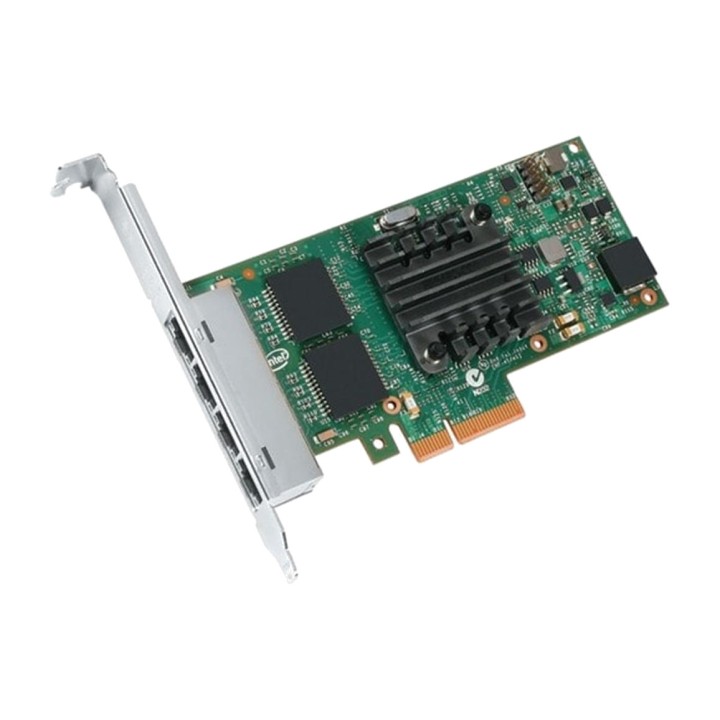

INTEL Boxless PCIe Ethernet network card I350-T4 V2 4X RJ45 1GBE BULK DSP0000043140

Features of the Intel Ethernet I350-T4 V2 Gigabit PCIe 4x RJ45 Bulk Network Card
The Intel Ethernet I350-T4 V2 is a Gigabit Ethernet network card designed to expand connectivity for servers and PCs in professional environments. It features 4 RJ45 ports with speeds of 10/100/1000 Mbps and a PCI Express 2.1 x4 interface, providing a solution for network infrastructures and data centers that require multiple Ethernet connections.
Gigabit Ethernet connectivity with 4 ports RJ45
Thanks to its four RJ45 network ports, this card can connect a server to several Ethernet networks using a single expansion card. Its compatibility with 10/100/1000Base-T technology facilitates integration into network infrastructures using Category 5e twisted-pair cabling.

Total number of ports: 4.
Connectors: 4 ports RJ45.
Network Technology: 10/100/1000Base-T.
Connection speed: 10/100/1000 Mbps per port.
Compatible medium: twisted-pair cable.
Cable category: Cat 5e.

PCI Express 2.1 x4 interface for servers and PCs
The Intel I350-T4 uses a PCI Express 2.1 x4 interface to connect to the motherboard, allowing four additional Gigabit Ethernet connections to be added to the system. It is intended for servers and PC platforms that need to expand their communication capabilities over wired networks.

Host interface: PCI Express 2.1 x4.
Product type: Gigabit Ethernet card.
compatible devices: Servidores.
Compatible platform: PC.
Applications: networks and data centers (Data Center).

Expansion card form factor and dimensions
Its plug-in card form factor allows installation in systems with a compatible PCI Express slot. Measuring 68.8 mm in width and 135.4 mm in depth, it features a design intended for professional systems. The technical specifications cover full-height and low-profile form factors, although the included brackets should be checked according to the supplied package.

Form factor: plug-in card.
Width: 68,8 mm.
Depth: 135,4 mm.
Specified card height: full height and low profile.

Bulk edition for professional integration
The Intel Ethernet I350-T4 V2 Bulk is sold in wholesale packaging, intended for system integrators and professional environments. It is an option for projects to expand Ethernet connectivity in servers and network infrastructure equipment.

Brand: Intel.
Manufacturer: Intel Corporation.
Range: Intel I350.
MODEL: I350-T4.
Manufacturer reference: I350T4V2BLK.
Packaging type: wholesale (Bulk).

Other technical specifications
This card is intended to provide wired Ethernet connectivity and does not include additional interfaces such as USB, serial ports or PoE power. It also does not support InfiniBand connectivity.

InfiniBand: No.
USB: No.
Serial port: No.
Ethernet AUI: No.
XJACK: No.
PoE RJ45 port: No.
