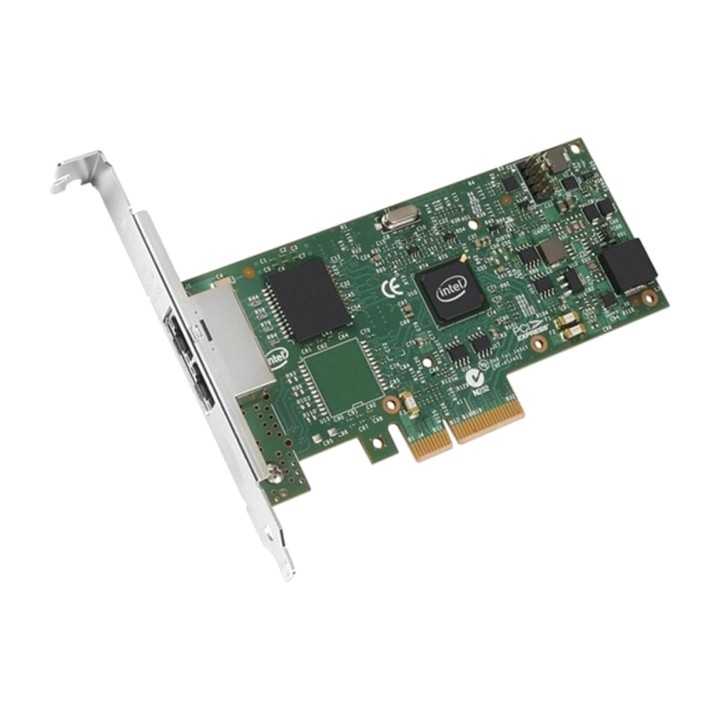

INTEL PCIe Ethernet network card I350-T2 V2 2X RJ45 1GBE DSP0000043135

Features of the Intel Ethernet Network Card I350-T2 V2 RJ45 PCI-E
The Intel Ethernet I350-T2 V2 is a Gigabit Ethernet network card designed to provide stable and efficient network connectivity in servers, computers and data centre environments. Equipped with the Intel I350 chipset, it features two RJ-45 ports compatible with 10/100/1000Base-T networks and a PCI Express 2.1 x4 interface. Its add-in card form factor allows it to be integrated into compatible equipment that needs to expand its Ethernet connections.
Gigabit Ethernet connectivity with two ports RJ-45
With its two Gigabit Ethernet network connections, this card provides independent network interfaces for connecting servers and computer equipment to wired network infrastructures. Its compatibility with speeds of 10, 100 and 1000 Mbps makes it easy to integrate into different network environments.

Network ports: 2 connections RJ-45.
Network Technology: 10/100/1000Base-T.
Compatible medium: twisted-pair cable.
Cabling: category 5e.
Connection speed: up to 1 Gbps per port.

Intel I350 chipset for professional environments
The card integrates the Intel I350 chipset, designed for Ethernet connectivity solutions in professional computer systems. It is intended for servers and data center environments that need to expand their connectivity options with wired network ports.

Chipset manufacturer: Intel.
Chipset model: I350.
Applications: computer networks and data centers.
compatible devices: servidores.
Compatible platform: PC.
InfiniBand compatibility: no.

PCI Express interface 2.1 x4
The PCI Express 2.1 x4 interface allows the card to be connected directly to a compatible PCIe slot on the motherboard. This configuration provides a network expansion option for systems that need to add two additional Ethernet connections without using external adapters.

Host interface: PCI Express 2.1 x4.
Product type: Gigabit Ethernet card.
Form factor: plug-in card.
Total number of ports: 2.

Physical form factor and dimensions
With a width of 68,8 mm and a depth of 135,4 mm, the Intel I350-T2 V2 is designed for internal installation. The specifications list full-height and low-profile form factors, allowing it to be considered for integration into different chassis configurations, provided the appropriate mounting bracket is available.

Width: 68,8 mm.
Depth: 135,4 mm.
Card height: full height and low profile.
Packaging type: retail.

Other technical specifications
The Intel Ethernet I350-T2 V2 is identified by the manufacturer part number I350T2V2 and belongs to the Intel I350 range. Its connectivity is based on two RJ-45 Ethernet ports, with no additional interfaces such as USB, serial port or PoE power.

Brand: Intel.
Manufacturer: Intel Corporation.
Range: Intel I350.
MODEL: I350-T2.
Manufacturer code: I350T2V2.
Product name: Gigabit Ethernet Card I350-T2 I350.
USB ports: no.
Serial port: no.
PoE port (RJ-45): no.
Ethernet AUI: no.
XJACK: no.
Manufacturer's website:
Volume (m ³): 0.0000
