INTEL PCIe Ethernet network card I210-T1 1X RJ45 1GBE DSP0000043133

Features of the Intel I210-T1 Gigabit PCI Express Ethernet Adapter

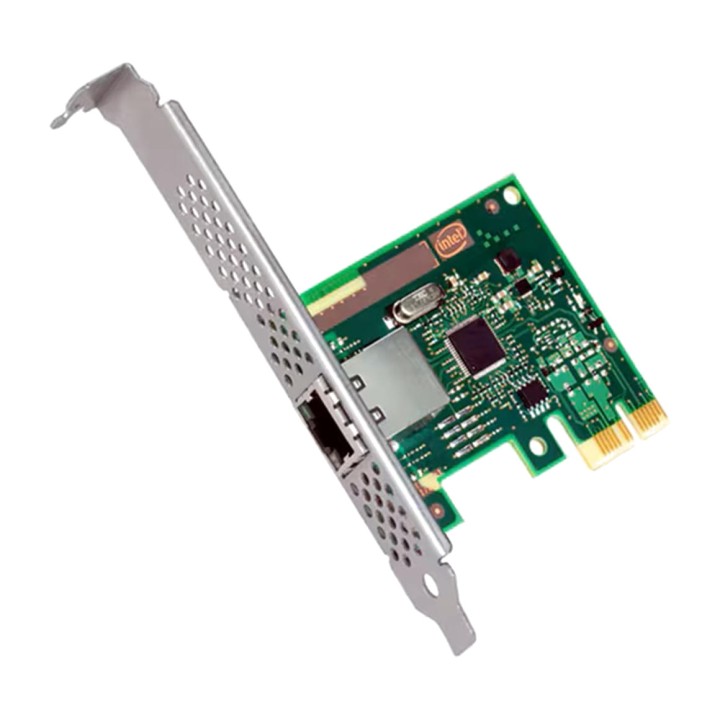

The Intel Ethernet Server Adapter I210-T1 is a Gigabit Ethernet network card designed to expand connectivity for compatible servers and PCs. It incorporates the Intel I210 chipset, a PCI Express 2.0 interface and an RJ-45 port that enables network connections of up to 1000 Mbit/s. Its plug-in card form factor and compatibility with full-height and low-profile brackets facilitate integration into different system configurations.
Gigabit Ethernet connectivity up to 1000 Mbit/s
This adapter enables Ethernet network connections at 10, 100 and 1000 Mbit/s, adapting to different network infrastructures. Thanks to its compatibility with 10/100/1000Base-T technology and Category 5e twisted-pair cabling, it offers a practical solution for connecting servers and computers to wired local area networks.

Network Technology: 10/100/1000Base-T.
Maximum transfer rate: 1000 Mbit/s (1 Gbit/s).
Compatible media type: twisted-pair cable.
Cabling standard: Category 5e.
Network connection: Ethernet via RJ-45.

Intel I210 chipset and PCI Express interface 2.0
The adapter integrates the Intel I210 network controller, designed to manage Ethernet communication in compatible systems. Its PCI Express 2.0 interface allows it to be installed directly in a compatible expansion slot on the motherboard, providing a wired network connection without the need for external USB adapters.

Chipset manufacturer: Intel.
Chipset model: I210.
Connection interface: PCI Express 2.0.
Product type: Gigabit Ethernet card.
Form factor: plug-in card.

RJ-45 port for wired network connections
The Intel I210-T1 has an RJ-45 Ethernet port that allows the computer to be connected to a network infrastructure via cable. This configuration is suitable for servers and computers that need to add or expand their Gigabit Ethernet connectivity. The adapter is designed for data communication and does not include PoE power or additional interfaces such as USB or a serial port.

Total number of ports: 1.
Network ports RJ-45: 1.
RJ-45 Ethernet connection: yes.
RJ-45 PoE port: no.
USB connection: no.
Serial port: no.
AUI Ethernet interface: no.
XJACK connector: no.

Compact design with full-height and low-profile bracket
Thanks to its expansion card form factor, this adapter can be integrated into different hardware configurations. Its compatibility with full-height and low-profile brackets makes it easy to adapt to different types of chassis, provided they have a compatible PCI Express slot and the space required for installation.

Form factor: plug-in card.
Width: 18 mm.
Depth: 67 mm.
Height format: full-height and low-profile.
Bracket height: full-height/low-profile.

Compatibility with servers and PC computers
The Intel Ethernet Server Adapter I210-T1 is designed for networking applications in servers and compatible PC platforms. It enables an additional Gigabit Ethernet connection to be added to systems with a suitable PCI Express slot, making it an option for expanding the network connectivity of computer systems.

Main application: computer networks.
Compatible device: servidor.
Compatible platform: PC.
Requires assembly: no, according to the manufacturer's specifications.

Other specifications
The adapter belongs to the Intel I210 range and is sold in retail packaging, with one unit per package. Its reference I210T1 identifies the model for purchasing, maintenance or equipment upgrade purposes.

Brand: Intel.
Manufacturer: Intel Corporation.
Trade name: Intel Ethernet Server Adapter I210-T1 Single Boxed.
Product name: I210T1 Ethernet server adapter.
Range: Intel I210.
MODEL: I210T1.
Manufacturer code: I210T1.
Packaging type: retail (Boxed).
Number of Units: 1.
Manufacturer's website:
Volume (m ³): 0.0000
