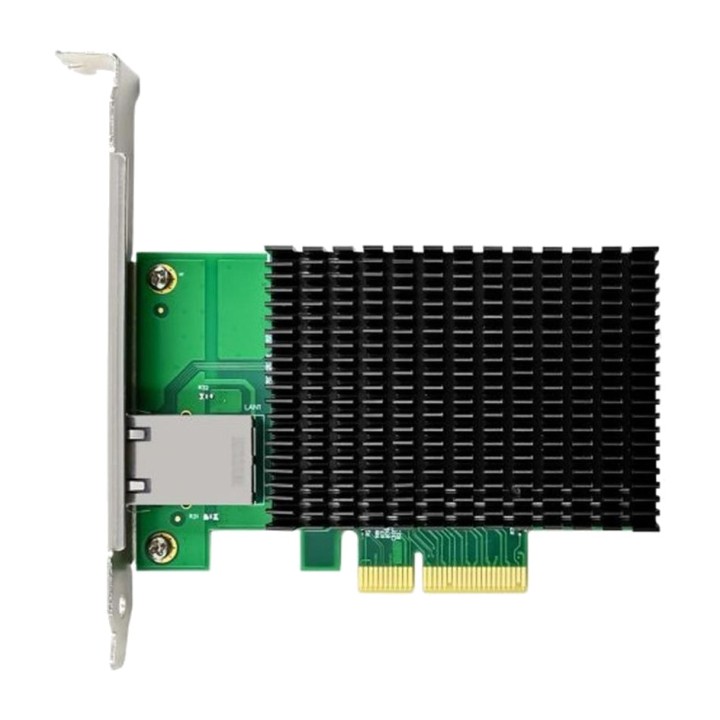

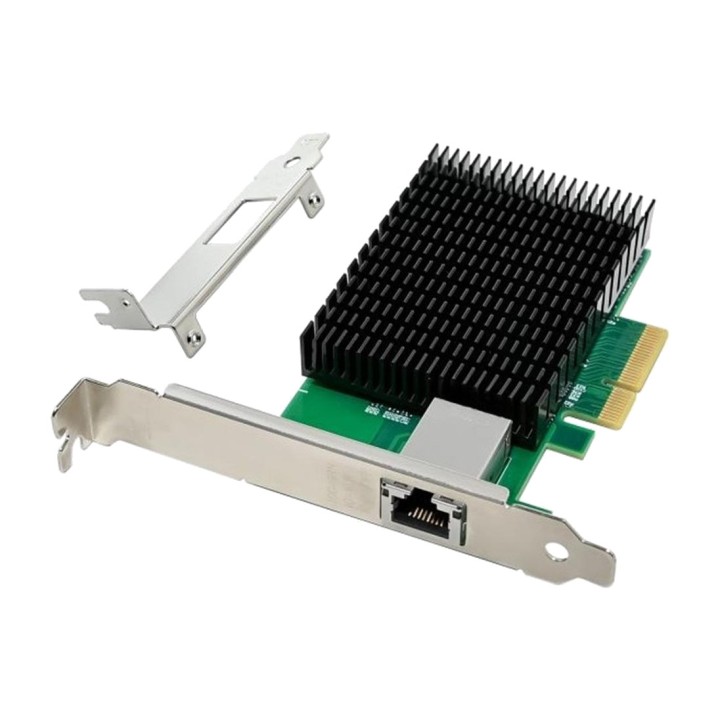

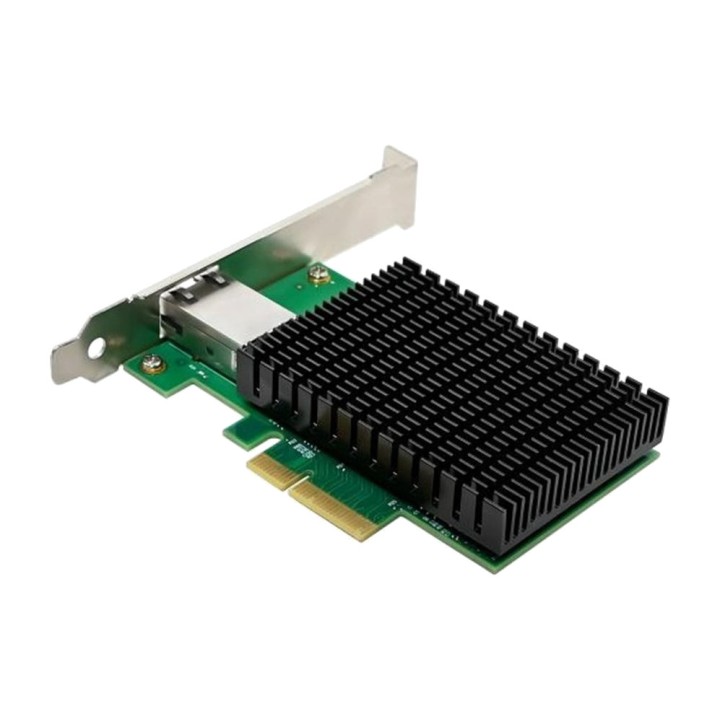

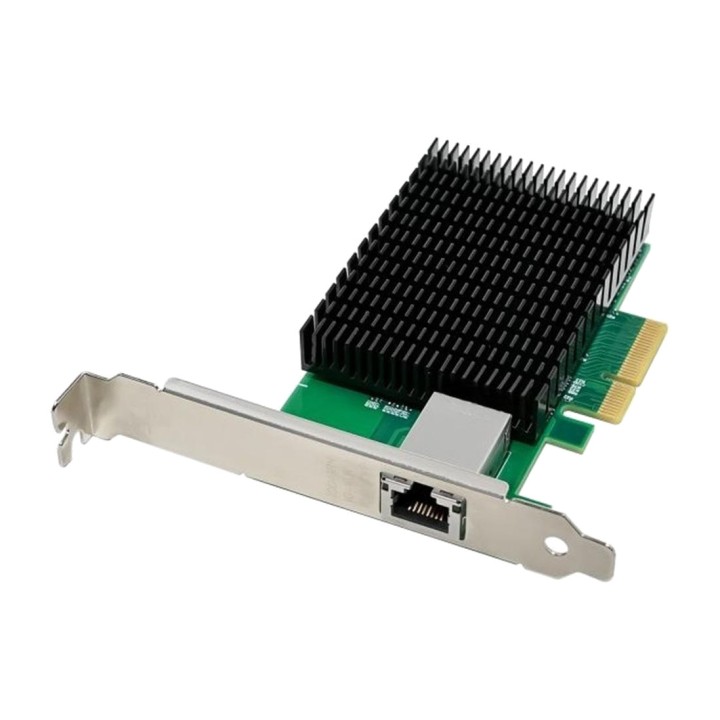

LEVELONE 10 Gigabit PCIe network card with port RJ45 GNC-0210 GEN3-X4 MGS0000022096 images
Secure payment
Card, bank transfer and financing. SSL on every page.
Worldwide shipping
Stock available for shipping at competitive rates. Delivery times vary by region.
Personalized support
Call us at +34 948 088 505 or email us. We answer questions and help with your order.
LEVELONE 10 Gigabit PCIe network card with port RJ45 GNC-0210 GEN3-X4 MGS0000022096
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosSupports 8.0 GT/s and 5.0 GT/s line rates per lane for smooth, efficient data flow. Choose between Gen3 x4 or Gen2 x4 compatibility for optimal performance in your system.
16K jumbo frames to increase data transfer speeds
Built-in Wake-on-LAN function to start computers remotely
Interrupt moderation: delivers higher performance while significantly reducing CPU utilization
IEEE 1588 and 802.1as (time synchronization)
Supports IEEE 802.1P Layer 2 priority queues to improve traffic flow
Supports IPv4/IPv6 network operation
general
GREEN COLOR
Ean: 4015867236246
Model number: GNC-0210
Characteristic
Characteristic
- Supports line rates of 8.0 GT/s and 5.0 GT/s per lane
- Supports Gen3 x4 or Gen 2 x4
- Improved CPU utilization and network performance
- Advanced cable diagnostics
- Audio Video Bridging (AVB) and 1588v2
- Energy-Efficient Ethernet (EEE) compliant
- 100 meters over Cat 6a at 10 Gbps
- 100 meters over Cat 5e and Cat 6a at 5 Gbps/2.5 Gbps/1 Gbps/100 Mbps
Miscellaneous
Data rate 10 Gbps
PCIe host interface x4
Wired network card type
Others
Approval and Compliance
- CE
- FCC Part 15
- RoHs
Operating humidity 10% relative humidity ~ 90% relative humidity
Operating temperature : 0°C ~ 45°C
Supported operating systems:
- Windows 7/8/8.1/10
- Windows Server 2012/2016
- Linux
Storage humidity: 10% relative humidity ~ 90% relative humidity
Storage temperature : -40°C ~ 85°C
package contents
- GNC-0210
- Low-profile bracket
- Resource CD (driver)
- Quick installation guide
- Declaration of Conformity
Physical Specifications
Dimensions (Width x Depth x Height): 105x68x20mm
Product weight (kg) : 0,11
System specifications
Jumbo frame (KB): sixteen
Standards
- IEEE 802.3: 10BASE-T (Ethernet)
- IEEE 802.3u: 100BASE-TX (Fast Ethernet)
- IEEE 802.3ab: 1000BASE-T (Gigabit Ethernet)
- IEEE 802.3bz: 2.5GBASE-T (2.5-Gigabit Ethernet)
- IEEE 802.3bz: 5GBASE-T (5 Gigabit Ethernet)
- IEEE 802.3an: 10GBASE-T (10 Gigabit Ethernet)
- IEEE 802.3az: Energy-Efficient Ethernet (EEE)
Volume (m ³): 0.0008
- Brand
- LEVELONE
- Reference
- MGS0000022096
- EAN-13
- 4015867236246
- Weight
- 0,5 kg
