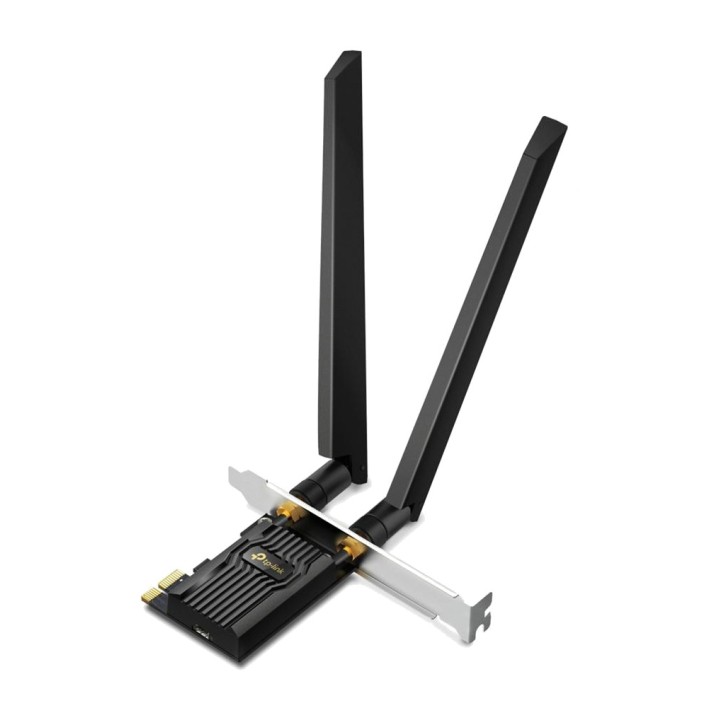

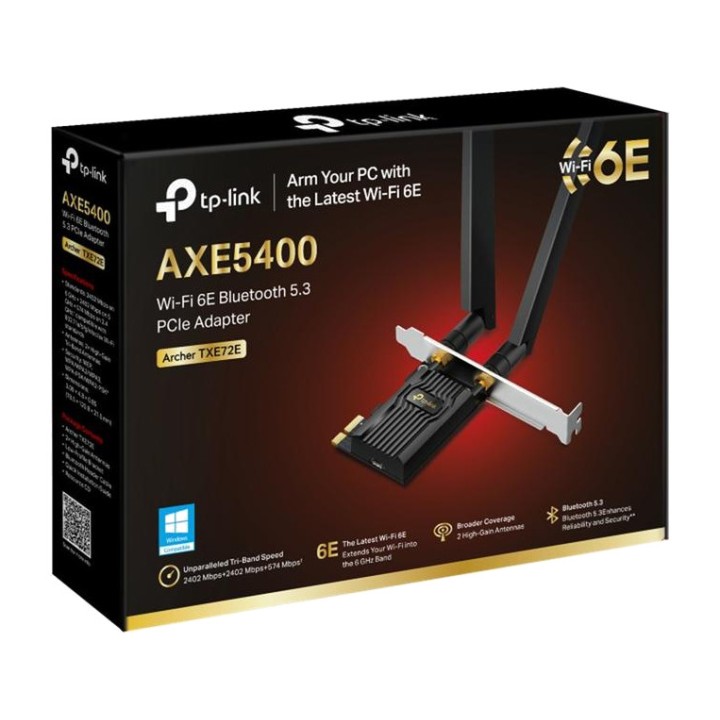

TP-LINK WiFi 6E and Bluetooth PCIe network card ARCHER-TXE72E AXE5400 MGS0000023019

Archer TXE72E
Archer AXE5400 Wi-Fi 6E PCIe network adapter TXE72E

Tri-band Wi-Fi 6E. Upgrade your PC to get the most out of your internet access network.
WiFi 6E technology. Achieve transfer speeds of up to 2402 Mbps (6 GHz), 2402 Mbps (5 GHz) and 574 Mbps ( 2.4 GHz).
Stable and fast connections. Ultra-low latency thanks to the Intel Wi-Fi 6E chipset
2 high-gain antennas. Get a stable, high-quality connection from farther away.
Bluetooth 5.3. Improved security and transmission speed.
Advanced security. Protection and privacy with WPA3 encryption
Safe and long-lasting. The gold finish improves stability and performance even at high temperatures.
Compatible with Wi-Fi versions. Works with Wi-Fi 6E / 6 / 5 / 4 networks.
Hardware Features
Dimensions 2.2 1.4 0.4 in (55 36 11.5 mm)
Antenna Type 2 high-gain tri-band antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
WLAN signal rate 6 GHz:
11ax: Up to 2402Mbps
5 GHz:
11ax: up to 2402 Mbps (dynamic)
11ac: up to 1732 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)
2,4 GHz:
11ax: up to 574 Mbps (dynamic)
11n: up to 400 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
6 GHz WLAN reception sensitivity:
11a x HE160 MCS0:-86
11a x HE160 MCS11:-56
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
5 GHz WLAN transmission power: 20dBm(FCC) /15dBm(CE) (EIRP)
2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)
6 GHz: 12dBm(FCC)
WLAN modes Infrastructure mode
Wireless security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
Others
FCC, CE, RoHS certifications
Archer Package Contents TXE72E
2 high-gain antennas
Low-profile bracket
Bluetooth header cable
Quick installation guide
Resource CD
System requirements Compatible operating systems include Windows 10, 11 (64-bit).
Currently, the 6 GHz band is only supported by Windows 11.
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~ 104 )
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Accessories Specifications Bluetooth Header Cable Length: 0.3m
Volume (m ³): 0.0012
