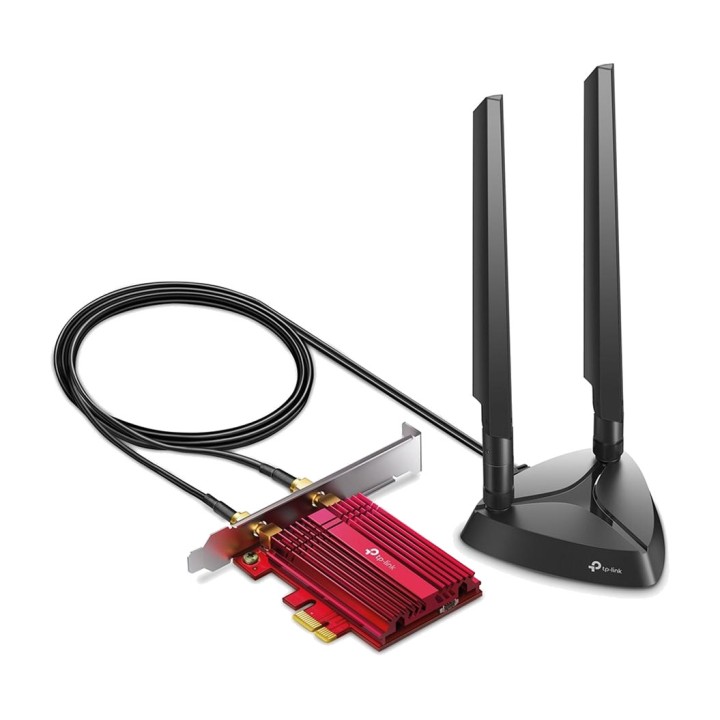

TP-LINK Tri-band WiFi 6E PCIe network card ARCHER-TXE75E AXE5400 MGS0000023017

Archer Wi-Fi 6E PCIe adapter TXE75E AXE5400

Tri-Band Speed - Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
WiFi 6E Standard - Expand to the clearest and widest 6 GHz band for more bandwidth and faster speeds. Currently, the 6 GHz band is only compatible with Windows 11.
Reliable Connections - The latest Intel Wi-Fi 6E chipset reduces latency and improves reliability, unlocking the full potential of your Wi-Fi 6E router.

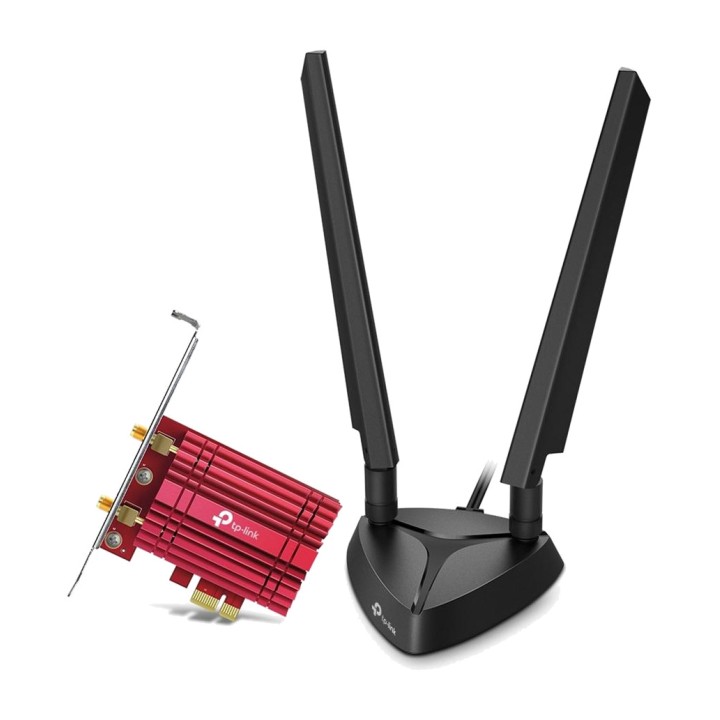

Wider Signal Coverage - Two multidirectional antennas with a magnetic base are designed for optimal signal reception.
Bluetooth 5.3 - Greater security and reliability than the previous generation’s high-speed Bluetooth 5.2.
Enhanced Security - The latest security enhancement, WPA3, provides improved protection for personal password security.
Reliably Engineered Design - The specialized heat sink and gold plating improve stability and performance even at high CPU temperatures.
Backward Compatibility - Full support for 802.11ax/ac/a/b/g/n standards.
Hardware Features
Dimensions 3.7 4.8 0.8 in (95.2 120.8 21.5 mm)
Antenna Type 2 high-gain tri-band antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
WLAN signal rate 6 GHz:
11ax: Up tp 2402Mbps
5 GHz:
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
6 GHz WLAN reception sensitivity:
11a x HE160 MCS0:-86
11a x HE160 MCS11:-56
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
5 GHz WLAN transmission power: 20dBm(FCC) /15dBm(CE) (EIRP)
2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)
6 GHz: 12dBm(FCC)
WLAN modes Infrastructure mode
Wireless security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
Others
FCC, CE, RoHS certifications
Archer Package Contents TXE75E
Magnetized antenna base with 1 m RF cable
2 high-gain antennas

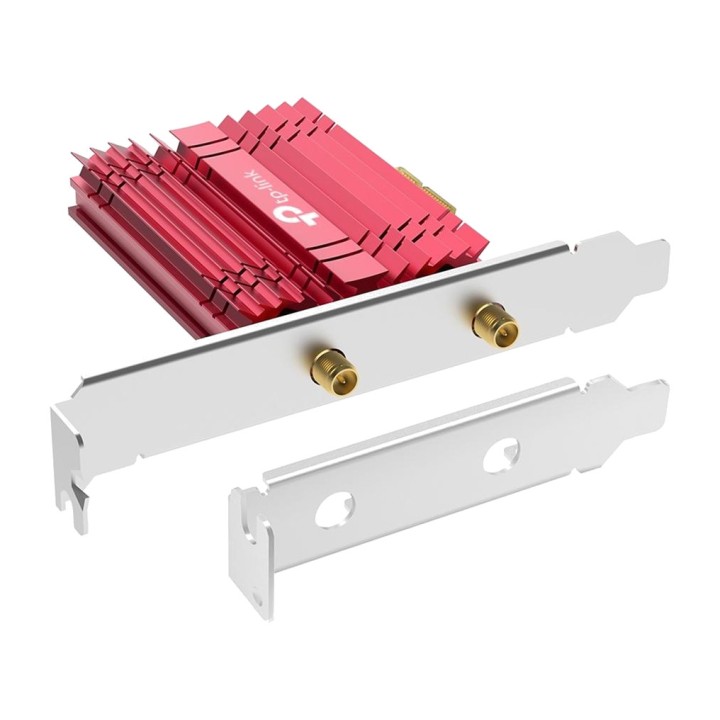

Low-profile bracket
Bluetooth header cable
Quick installation guide
Resource CD
System requirements Compatible operating systems include Windows 10, 11 (64-bit).
Currently, the 6 GHz band is only supported by Windows 11.
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~ 104 )
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Accessories Specifications Extension Cable Length: 1 m
Bluetooth Header Cable Length: 0.3 m
Volume (m ³): 0.0031
