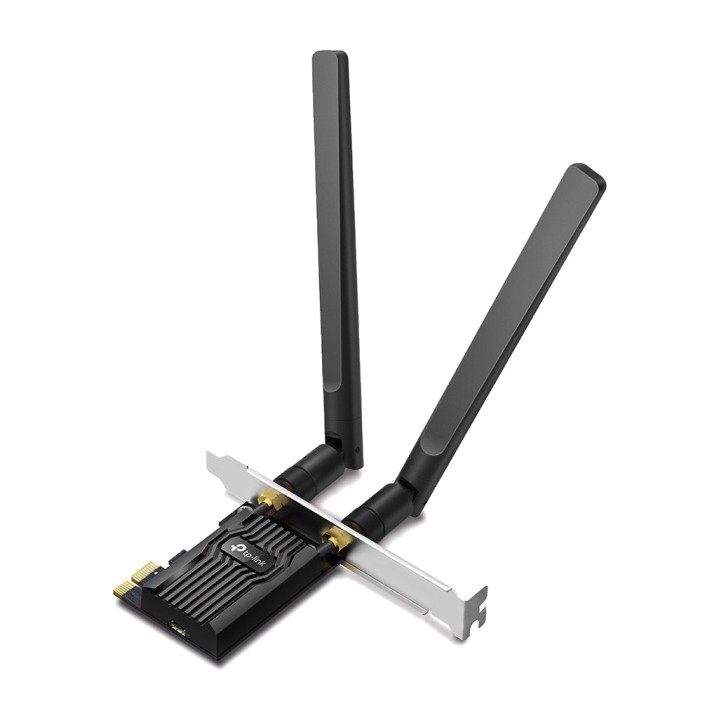

TP-LINK WiFi 6 and Bluetooth PCIe network card ARCHER-TX20E AX1800 MGS0000017310

TP-LINK ARCHER TX20E WIFI 6 DUAL-BAND BLUETOOTH 5.2 PCI EXPRESS CARD
Hardware Features
Dimensions  4.76 × 3.09 × 0.82 in
(120.8 × 78.5 × 20.9 mm)
Antennas  Two high-gain dual-band antennas
Chipset  Realtek Wi-Fi 6 Chipset
WIRELESS FEATURES
Wireless Standards  IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2
WLAN Signal Rate  5 GHz
11ax: up to 1201 Mbps (dynamic)
11ac: up to 867 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)

2,4 GHz
11ax: up to 574 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
WLAN Reception Sensitivity  5 GHz :
11ax HE80: -57.0dBm
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11ac VHT80: -59.5dBm
11ac VHT40: -62.5dBm
11ac VHT20: -67.5dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11a 54Mbps: -74.0dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11g 54Mbps: -74.0dBm
11b 11Mbps: -88.0dBm
WLAN Transmission Power  5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Others
Certifications CE, FCC, RoHS
Package Contents Archer TX20E
Two high-gain dual-band antennas
Low-profile bracket
Bluetooth header cable
Quick installation guide
Resource CD
System Requirements Windows 11/10 (64-bit) only
Environmental Factors Operating temperature : 0 ? ~ 40 ? (32 ? ~ 104 ?)
Storage temperature : -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0012
