TP-LINK Dual-band WiFi 5 PCIe network card ARCHER-T2E AC600 MGS0000012565

Archer T2E
Dual-band wireless PCI Express adapter AC600

Dual-band AC600 WiFi: make the most of your network with Wi-Fi speeds
of up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2,4
GHz)
MU-MIMO compatible: increase network performance and efficiency when
working with a compatible MU-MIMO router

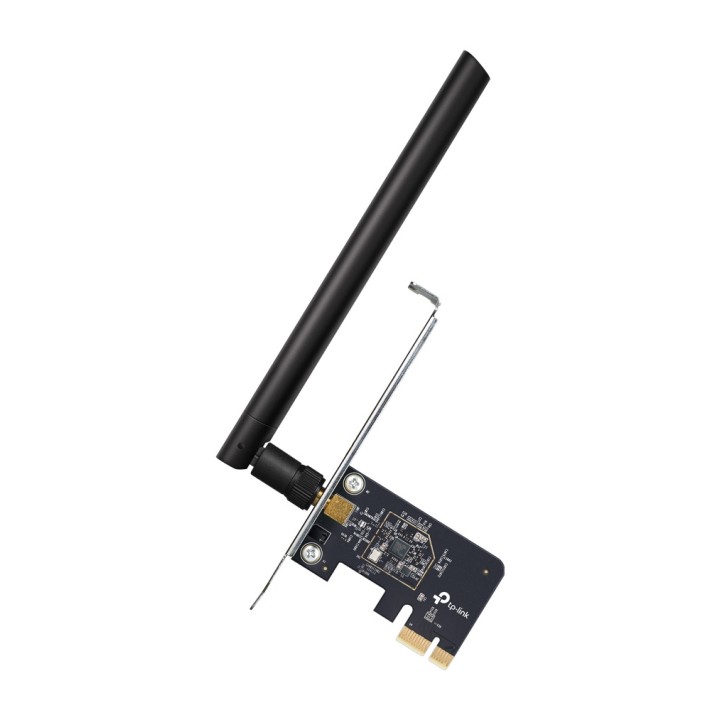

Wide wireless range: connect to your Wi-Fi in more parts of your home with
a powerful high-gain antenna that boosts the signal
WPA3 compatible: improve cybersecurity with more secure and
personalized

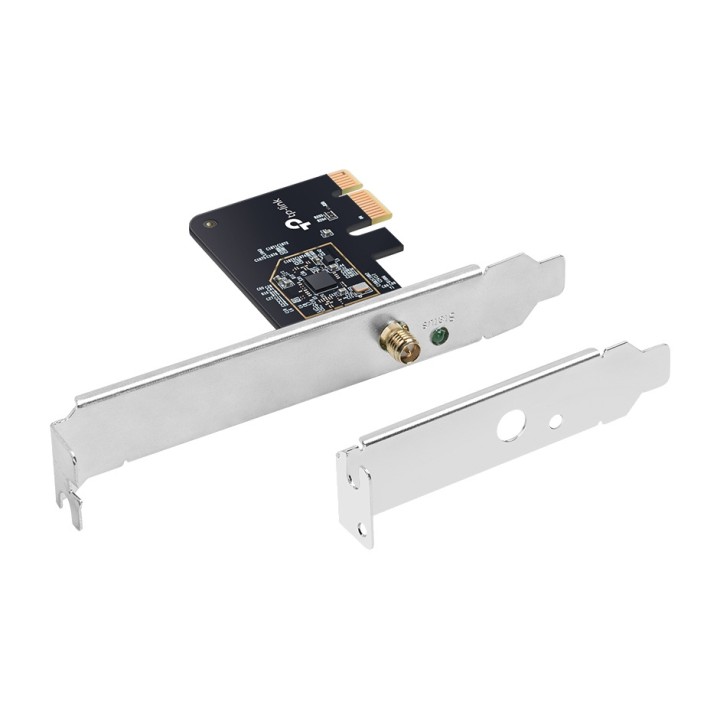

Low-profile and full-height brackets: custom options give you
the flexibility to find a bracket that fits your board design perfectly
board

Hardware Features
PCI Express interface
Dimensions 4.76 3.09 0.85 in (120.8 78.5 21.5 mm)
Antennas 1 detachable external antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Signal Rate 5 GHz:
11ac: up to 433 Mbps (dynamic)
11n: up to 200 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)
2,4 GHz:
11n: up to 200 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
Reception Sensitivity 5GHz:
11ac HT80:-59.0dBm
11n HT40:-68.0dBm
11a 54Mbps:-73.0dBm
11a 6Mbps:-90.0dBm
2.4GHz:
11n HT40:-70dBm
11g 54Mbps:-75dBm
11b 11Mbps:-87dBm
Transmit Power 5 GHz: 18 dBm (FCC) / 23 dBm (CE) (EIRP)
2.4 GHz: 18 dBm (FCC) / 20 dBm (CE) (EIRP)
Wireless Modes Infrastructure mode
Wireless security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-
SAE
Modulation technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-
QAM
Others
FCC, CE, RoHS certifications
Package Contents Dual-band wireless PCI Express adapter
AC600
Archer T2E
Low-profile bracket
Quick installation guide
Resource CD
System requirements Windows 11/10
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~
104 )
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
Volume (m ³): 0.0012
