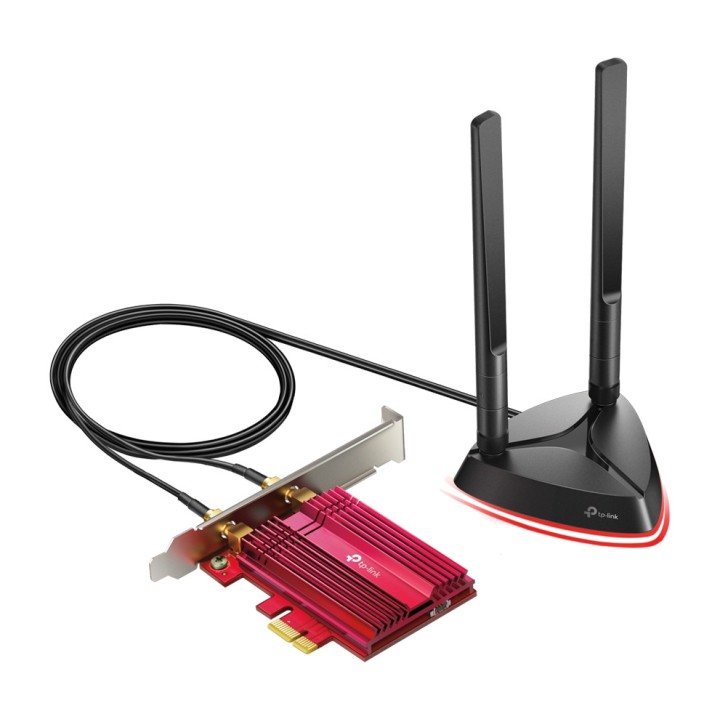

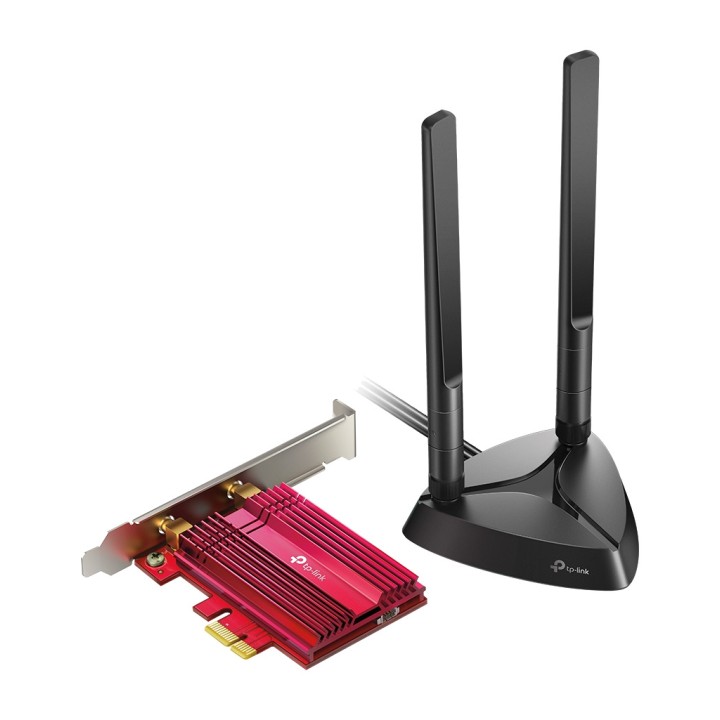

TP-LINK WiFi 6 and Bluetooth 5.0 PCIe network card ARCHER-TX3000E AX3000 MGS0000012562

Archer TX3000E
AX3000 PCIe Wi-Fi 6 Bluetooth adapter 5.0

Unmatched Wi-Fi 6 speed: break the gigabit barrier with speeds
of up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Smoother experience: 75% lower latency ensures real-time gaming
Reliable connections: the Intel Wi-Fi 6 chipset delivers faster, clearer Wi-Fi and
clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
Wider signal coverage: its two multidirectional antennas with
magnetized base are designed for optimal signal reception
Bluetooth 5.0: the latest Bluetooth technology achieves 2 times the speed
faster and 4 times wider coverage than BT 4.2
Enhanced security: the latest WPA3 security enhancements provide
enhanced security for personal passwords
Exquisite design: the heat sink and specialized coating
are designed to improve stability and reliability even in warm environments
warm Backward compatibility: full compatibility with
the 802.11ac / a / b / g / n standards
Hardware Features
Dimensions 3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)
Antenna Type Two high-gain dual-band antennas
Magnetized antenna base
Chipset Intel Wi-Fi 6 Chipset
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0
5 GHz WLAN rate
11ax: up to 2402 Mbps (dynamic)
11ac: up to 1733 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)

2,4 GHz
11ax: up to 574 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
5 GHz WLAN reception sensitivity:
11ax HT160-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
5 GHz WLAN transmission power: 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz: 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN modes Infrastructure mode
Wireless security Operating temperature : 0 ~ 40 (32 ~
104 )
Storage temperature : -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
Modulation technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-
QAM, 1024QAM
Bluetooth profiles Archer TX3000E supports the native BT profiles
implemented in Windows 10 and Windows 11.
For the latest information on Windows profiles 10
BT, see

bluetooth-profiles Others
CE, FCC, RoHS certifications

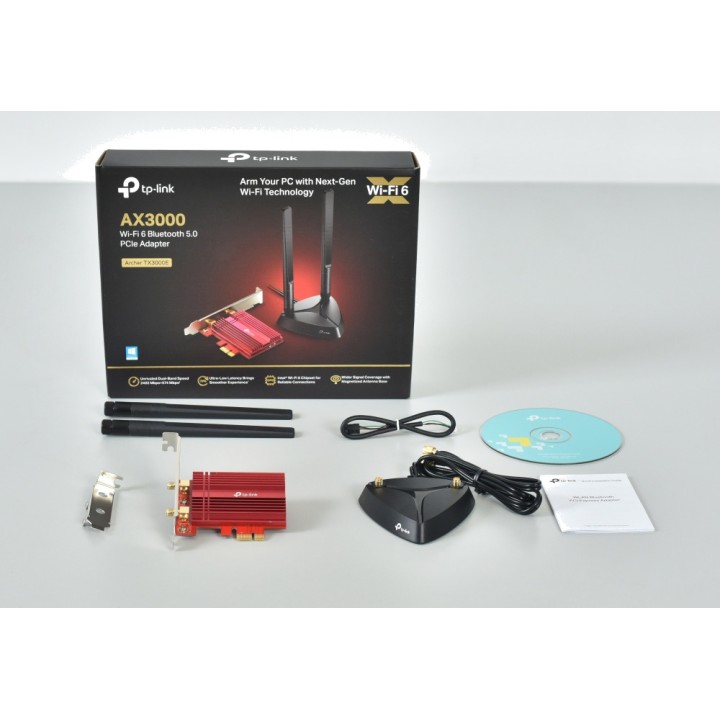

Archer Package Contents TX3000E
Magnetized antenna base with 1 m RF cable
Two 5 dBi high-gain antennas
Low-profile bracket
Bluetooth header cable
Quick installation guide
Resource CD
System requirements Compatible with Windows 10 (64-bit) and Windows 11
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~
104 )
Storage temperature : -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
Volume (m ³): 0.0030
