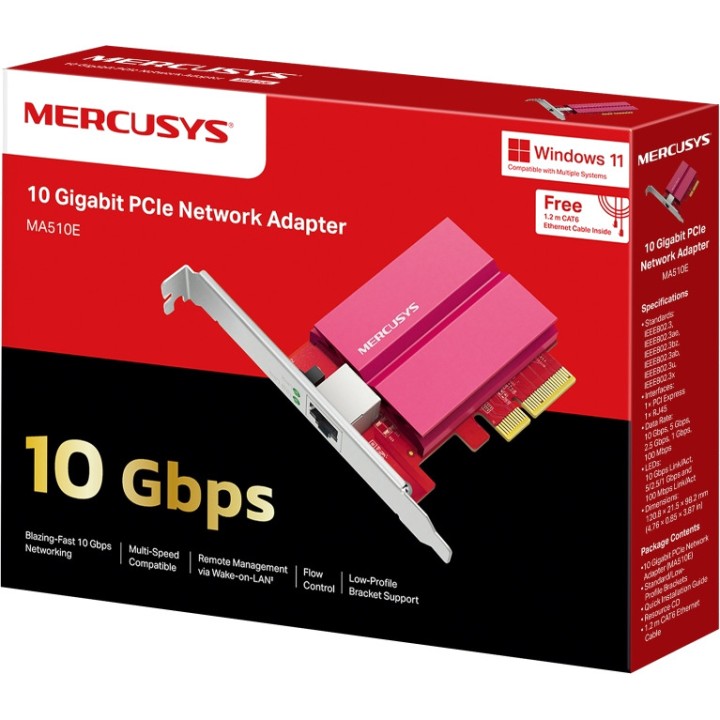

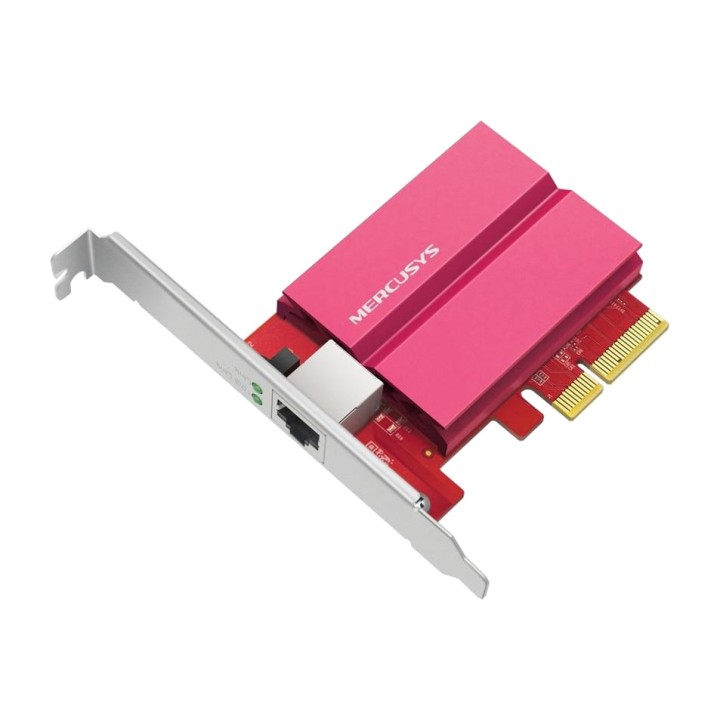

MERCUSYS PCI Express 3.0 network card with port RJ45 MA510E 10GBPS DSP0000041653

Features of the Mercusys 10 Gigabit PCIe Network Adapter MA510E
The Mercusys MA510E is a PCI Express 3.0 network adapter designed to provide wired connections of up to 10 Gbps, delivering much higher performance than conventional Gigabit adapters. It is an ideal solution for users who need high-speed data transfers, fast access to NAS servers, workstations, gaming or professional environments where stability and bandwidth are essential.
10 Gigabit connectivity for extreme performance
Thanks to its PCI Express 3.0 x4 interface and Multi-Gig RJ45 port, the MA510E lets you enjoy speeds of up to 10 Gbps, significantly speeding up the transfer of large files and access to high-performance networks.

Speeds of up to 10 Gbps.
PCI Express interface 3.0 x4.
1 RJ45 port compatible with Multi-Gig networks.

Multi-Gig compatibility with auto-negotiation
The adapter automatically detects the available network speed to establish the best possible connection, providing a seamless experience and compatibility with existing infrastructure without the need for complex configurations.

Compatible with 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps.
Automatic speed negotiation.
Compatible with 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX.

Fast transfers for local networks and NAS storage
The Mercusys MA510E makes the most of high-speed connections to drastically reduce file-copying times. It is an excellent choice for working with NAS servers, backups or large volumes of data on local networks.

Ideal for transferring large files.
Perfect for connections to NAS devices.
Greater productivity in professional environments.

Stable transmission and low latency
Features Flow Control with a dynamic point-to-point management mechanism that helps maintain stable data transmission, minimising packet loss and delivering a low-latency experience.

Compatible with IEEE 802.3x Flow Control.
Stable and efficient transmission.
Reduced packet loss.

Advanced features for more efficient use
The adapter includes features such as Wake-on-LAN, which lets you remotely turn the computer on or off using a network signal, and Energy-Efficient Ethernet (EEE) technology, which reduces power consumption without affecting performance.

Wake-on-LAN for remote management.
Energy-Efficient Ethernet technology (IEEE 802.3az).
Lower energy consumption.

Flexible installation and broad compatibility

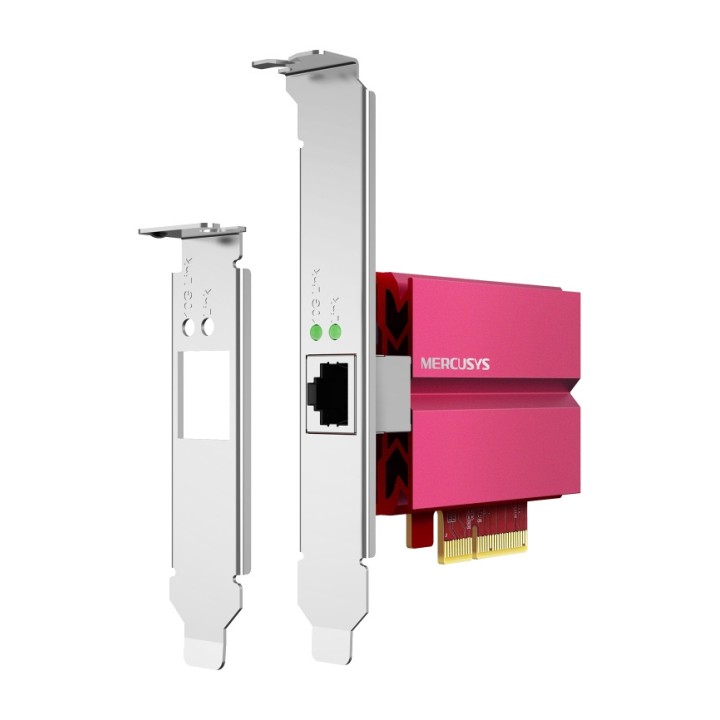

The MA510E includes standard-profile and low-profile brackets, making it easy to install in different types of equipment. It is also compatible with a wide range of operating systems for easy integration into home and professional environments.

Includes standard and Low Profile brackets.
Compatible with Windows 11, Windows 10, Windows 8.1 and Windows 8.
Compatible with Windows Server 2022, 2019, 2016 and 2012 R2, as well as Linux.

Other specifications

Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3x and 802.3az.
LED indicators for 10 Gbps, 5/2.5/1 Gbps and 100 Mbps links.
Dimensions: 120.8 × 98.2 × 21.5 mm.
Certifications: CE and RoHS.
Operating temperature: 0°C to 40°C.
Operating humidity: 10% to 90% non-condensing.
Box contents: MA510E PCIe adapter, standard and Low Profile brackets, quick installation guide, resource CD and 1.2 m CAT6 Ethernet cable.
Volume (m ³): 0.0012
