TP-LINK WiFi 5 PCIe network card for desktop PC ARCHER-T4E AC1200 ARCHERT4E

Dual-Band PCI Express Wireless Adapter AC AC1200
Archer T4E

Easy installation - Plug the adapter into an available PCI-E slot to
upgrade your desktop.
High-speed Wi-Fi - Up to 1200 Mbps Wi-Fi speed (867 Mbps on the
5 GHz band and 300 Mpbs in the 2.4 GHz band)

802.11ac Dual Band: 3 times faster than the 802.11n standard, perfect for
the use of high-intensity networks.

Beamforming - Wi-Fi signals are strengthened in a specific direction
when the client is present.

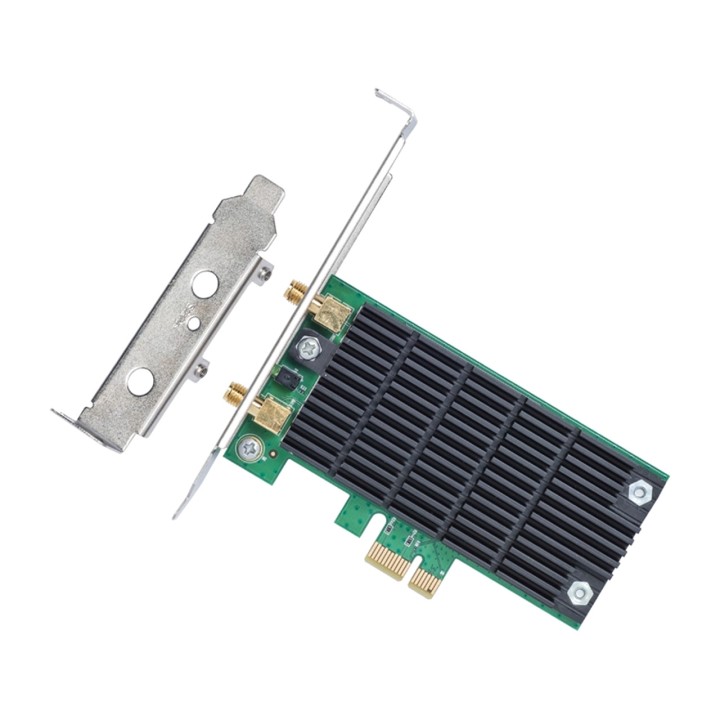

Brackets in various sizes - Low-profile and full-height brackets are supplied
full-height, suitable for all PCs.

22 MIMO - Users can easily access a high-speed wireless connection
high-speed.

Wide wireless range - Two external antennas ensure greater
Wi-Fi coverage and greater stability.

Hardware Features
PCI Express interface
Dimensions (W x D x H) 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
Antenna Type 2 Detachable Dual-Band Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate 5 GHz
11ac: Up to 867 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: Up to 54 Mbps (dynamic)
2,4 GHz
11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)
Reception Sensitivity 5 GHz:
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm

2.4GHz :
11n HT40: -67,5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86,5 dBm
5 GHz transmission power: 24 dBm(FCC) / 23dBm(CE) (EIRP)
2,4 GHz: 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Compatibility with 64/128-bit WEP Wireless Security , WPA/WAP2,
WPA-PSK/WPA2-PSK, 802.1x
Modulation technology DBPSK, DQPSK, CCK, OFDM, MAQ-16, MAQ-64, 256-
QAM
Others
CE, FCC, RoHS certification
Package contents AC1200 Wireless Dual Band PCI Express Adapter Archer
T4E
Low-profile bracket
Quick installation guide
Resource CD
Windows 10/8.1/8/7/XP system requirements (32/64bit)
Environment: operating temperature : 0~40 (32~104)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0013
