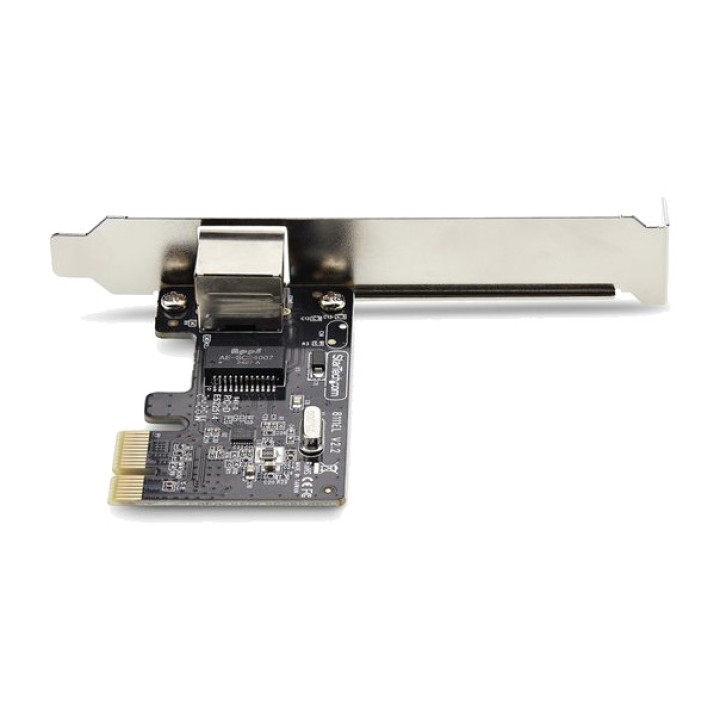

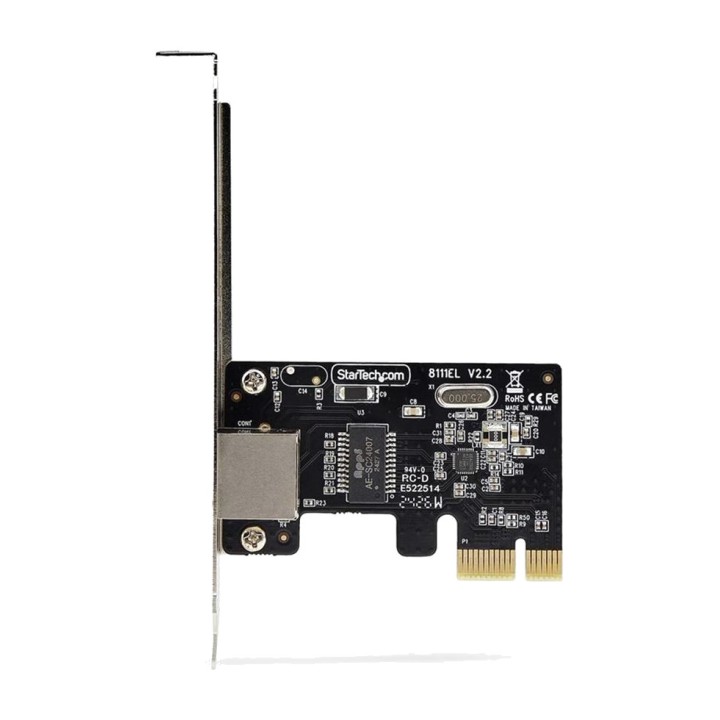

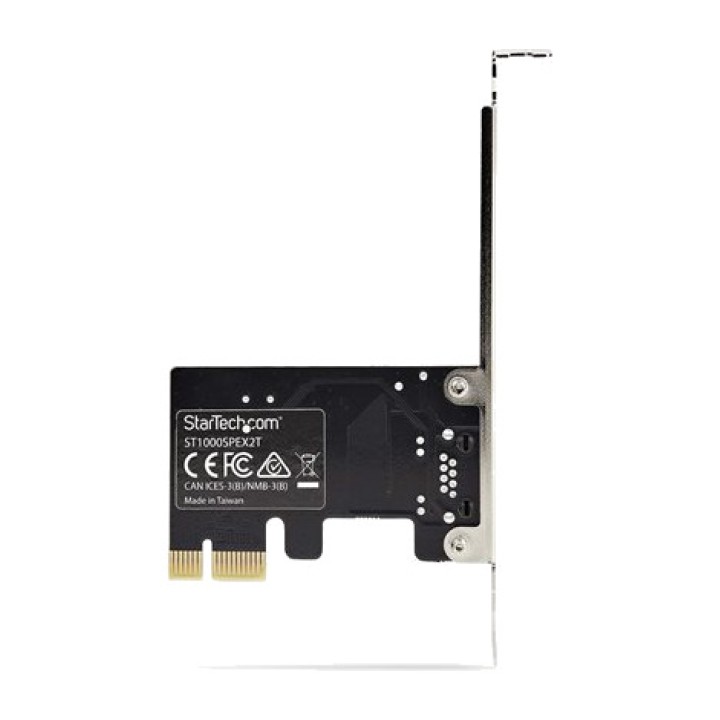

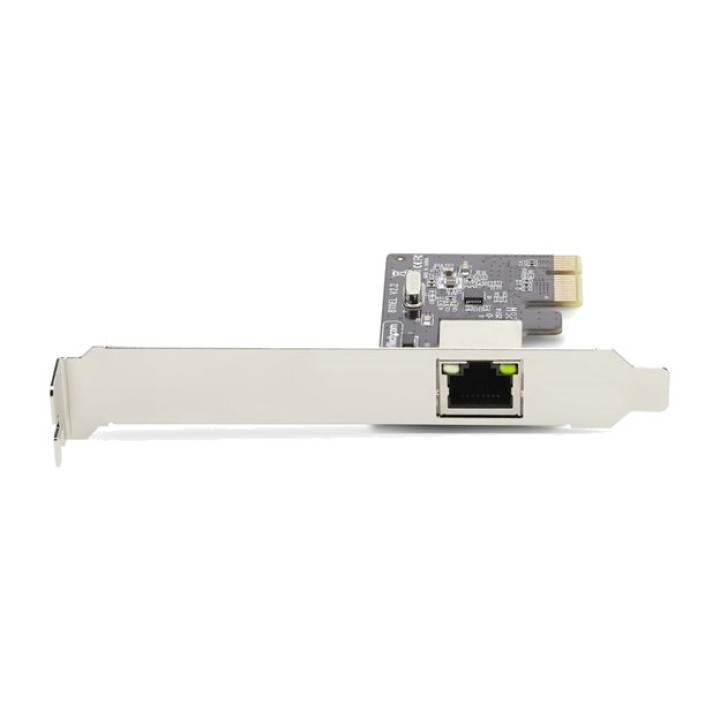

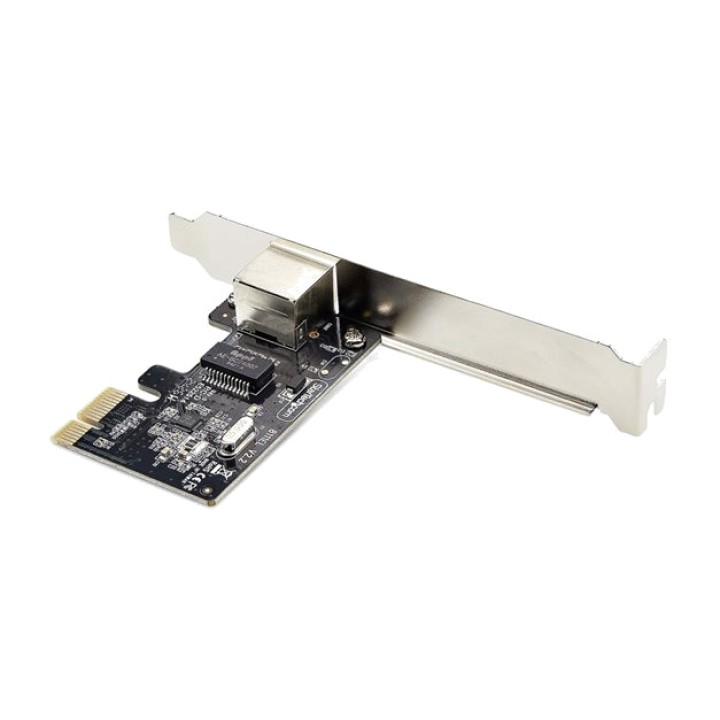

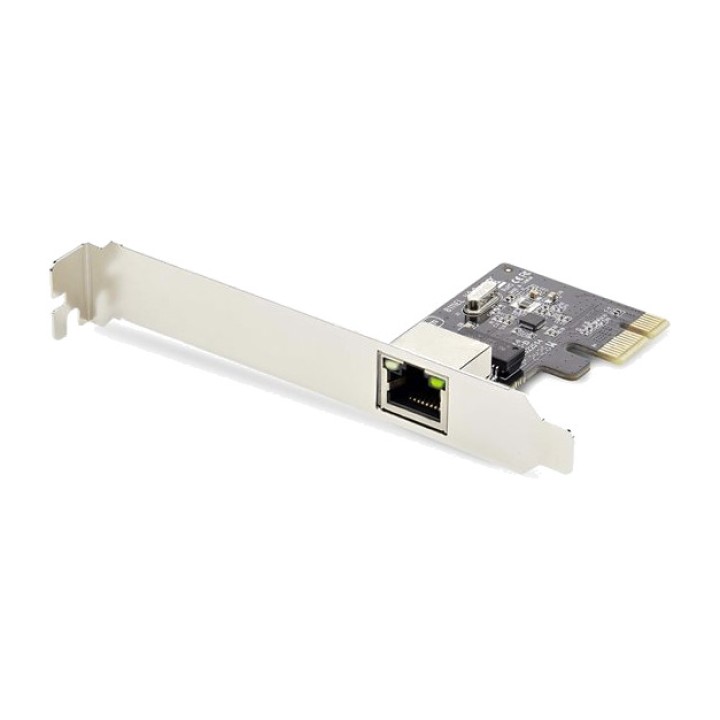

STARTECH.COM PCI Express x1 network card with Gigabit port RJ45 ST1000SPEX2T DSP0000041283

Features of the Startech 1-Port Gigabit PCIe Network Adapter Card
The Startech 1-Port Gigabit PCIe Network Adapter Card is an internal network adapter designed to add Gigabit Ethernet connectivity to compatible computers via a PCI Express x1 slot. Its low-profile plug-in card format makes it suitable for compact computers, workstations and professional systems that need a stable wired connection.
Gigabit Ethernet connectivity via PCI Express
This adapter features a 1000Base-T RJ-45 port with a transfer speed of up to 1 Gbps, compatible with Ethernet, Fast Ethernet and Gigabit Ethernet networks. It is a practical solution for upgrading or replacing the computer’s integrated network connection.

Bus interface: PCI Express x1
Port: 1 x Gigabit Ethernet RJ-45
Transfer speed: 1 Gbps

Compatibility and advanced network features
The card is based on the Realtek Semiconductor RTL8111H processor and includes features such as auto-negotiation, Auto MDIX, WOL and promiscuous mode. It also supports jumbo frames of up to 9000 bytes, a useful feature in network environments that require greater data transfer efficiency.

Processor: Realtek Semiconductor RTL8111H
Capacity: jumbo frame size of 9000
Features: auto-negotiation, WOL, promiscuous mode and Auto MDIX

Broad operating system support
This network adapter is compatible with Windows and Linux systems, making it easy to integrate into different computing environments. It supports desktop and server versions, including Windows Server and Linux LTS distributions.

Compatible with Windows 8, Windows 10 and Windows 11
Compatible with Microsoft Windows Server 2016, 2019 and 2022
Compatible with Linux 2.4.x or later, LTS versions only

Compact design and regulatory compliance
With a black design, low-profile form factor and included half-height bracket, this card adapts to different system configurations. It also complies with standards such as Plug and Play, RoHS, WEEE and the main IEEE standards for Ethernet networks.

Form factor: low-profile plug-in card

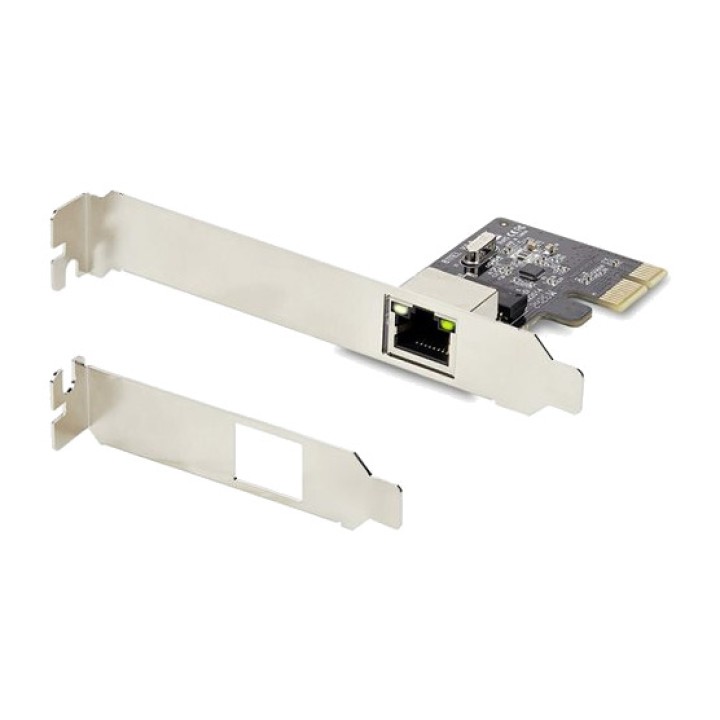

Included accessory: half-height bracket
TAA compliant: Yes

Other specifications

Device type: Network adapter
Cabling type: Ethernet 10Base-T, Ethernet 100Base-TX and Ethernet 1000Base-T
Connectivity technology: Wired
Status indicators: port transmission speed and link/activity
Standards compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
Operating temperature: 5 °C to 70 °C
Operating humidity: 10 - 80% non-condensing
Dimensions: 1.8 cm wide, 6.5 cm deep and 4.2 cm high
Weight: 34 g
Package dimensions: 14.2 cm wide, 17 cm deep and 3 cm high
Package weight: 100.5 g
Volume (m ³): 0.0025
