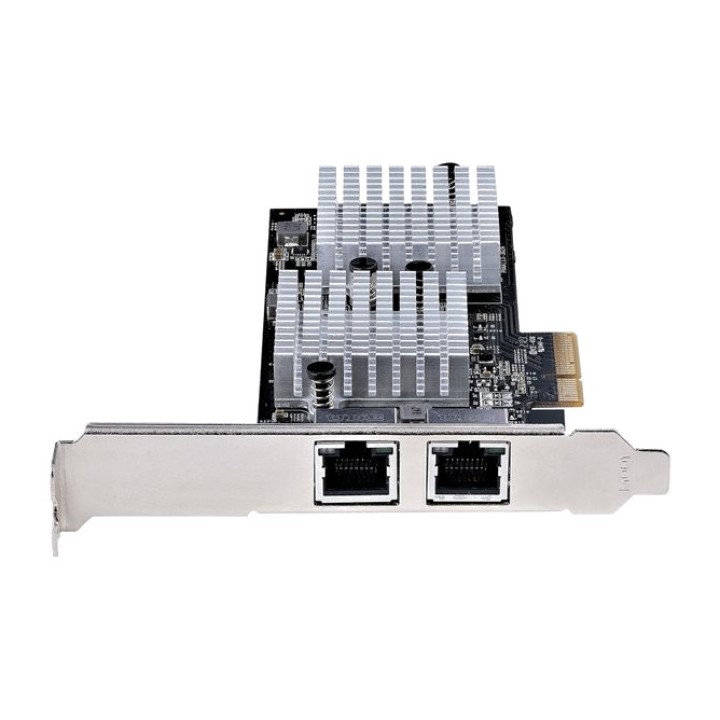

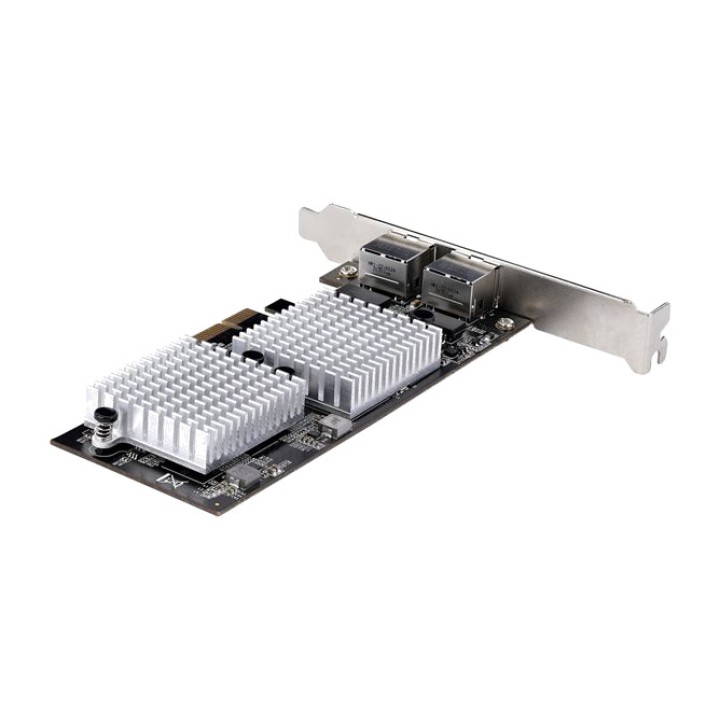

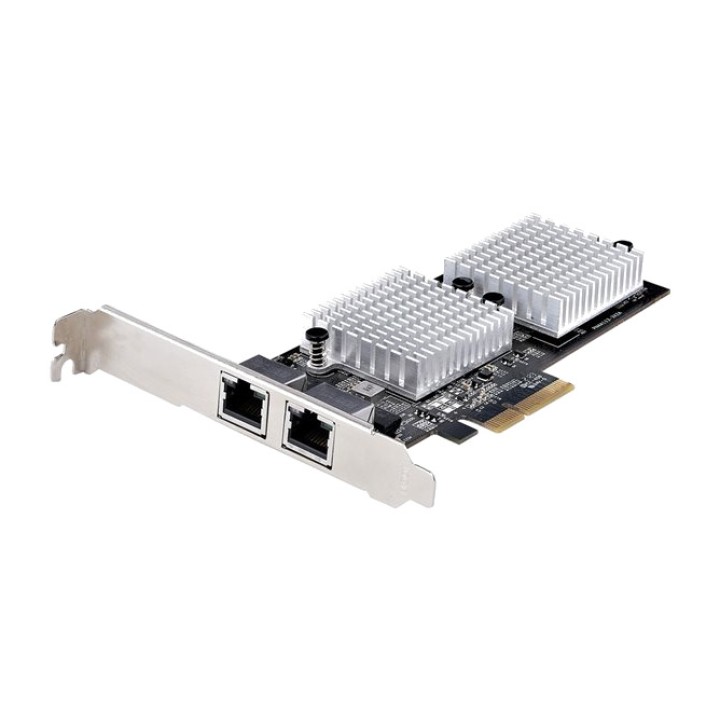

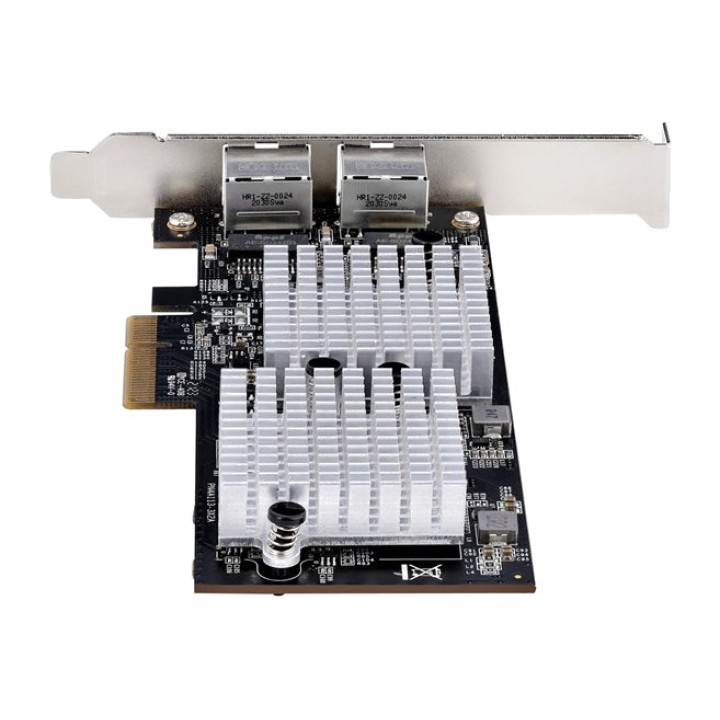

STARTECH.COM PCI Express network card with 2 10 Gigabit ports NBASE-T RJ45 3.0 ST10GSPEXNDP2 DSP0000041178

Features of the Startech 2-Port RJ45 10Gbps PCI Express Network Card
The StarTech 2-port RJ45 PCI Express network card is designed for professional environments and users who need high-speed connectivity and maximum network flexibility. With two Ethernet ports supporting up to 10 Gbps each, it lets you expand connectivity for servers, workstations and advanced equipment with reliable performance ready for bandwidth-intensive applications.
Multi-Gigabit connectivity up to 10 Gbps
Equipped with two RJ45 ports compatible with Multi-Gigabit technologies, this card provides a connection that adapts to different network infrastructures. Its compatibility with 10M, 100M, 1G, 2,5G, 5G and 10G speeds lets you make the most of both current and future networks without replacing existing cabling when compatible.

2-port RJ45 10 Gigabit Ethernet
Data transfer speed of up to 10 Gbps
Compatible with 10M, 100M, 1G, 2,5G, 5G and 10G Ethernet

High-performance PCIe interface
The PCI Express 3.0 x4 interface provides the bandwidth needed to handle large volumes of data efficiently. It is also compatible with PCIe 3.0 and PCIe 4.0 specifications, making it easy to integrate into modern equipment and professional platforms.

PCI Express interface 3.0 x4
Compatible with PCIe 3.0 and PCIe 4.0
Designed for workstations and servers

Advanced features for professional environments
It incorporates a comprehensive set of features for managing and optimising enterprise networks. Functions such as VLAN Tagging, Wake-on-LAN, PXE Boot, PTP and Energy Efficient Ethernet help improve management, energy efficiency and remote deployment capabilities.

VLAN Tagging support (IEEE 802.1Q)
Wake-on-LAN (WOL) and PXE boot
Support for PTP, EEE, AVB and promiscuous mode

Compatible with a wide range of networks and systems
The card supports numerous Ethernet standards and network protocols, making it easy to deploy across different infrastructures. It is also compatible with Windows and Linux systems for straightforward integration into mixed environments.

Compatible with TCP/IP and UDP/IP
Supports Ethernet, Fast Ethernet, Gigabit Ethernet and 10 Gigabit Ethernet
Compatible with Windows 8, 8.1, 10, 11, Windows Server and Linux 3.10 LTS or later

Versatile design and easy installation

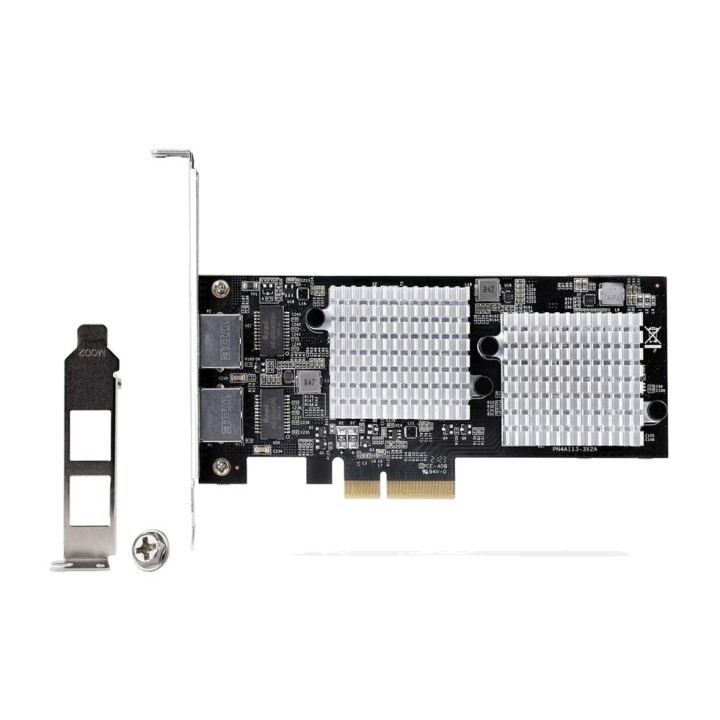

Its plug-in card form factor includes both a low-profile bracket and a full-height bracket, allowing installation in different types of chassis. Link and activity indicators make it easy to visually monitor the connection status.

Low-profile form factor
Includes a low-profile bracket and a full-height bracket
Link and activity LED indicators

Other specifications

Marvell controller AQC113CS
Jumbo frame size up to 16000 bytes
Full-duplex capability
Auto MDIX compatibility
Compatible with 10Base-T, 100Base-TX, 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T and NBase-T cabling
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz and IEEE P802.3az standards
Operating temperature: from 5 °C to 50 °C
Operating humidity : 20% - 80% RH
Dimensions: 14,5 x 6,5 x 2 cm
Weight: 116 g
COLOR BLACK
Includes drivers and utilities
Volume (m ³): 0.0012
