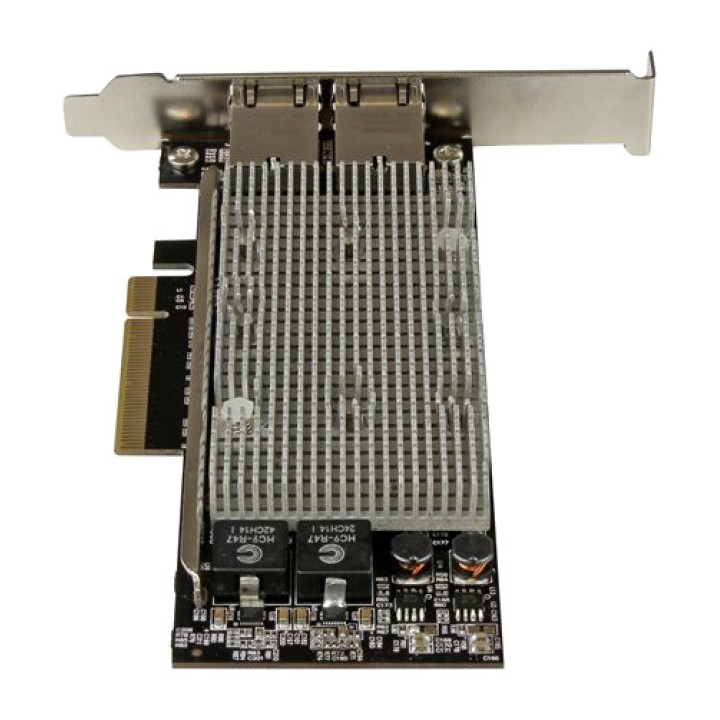

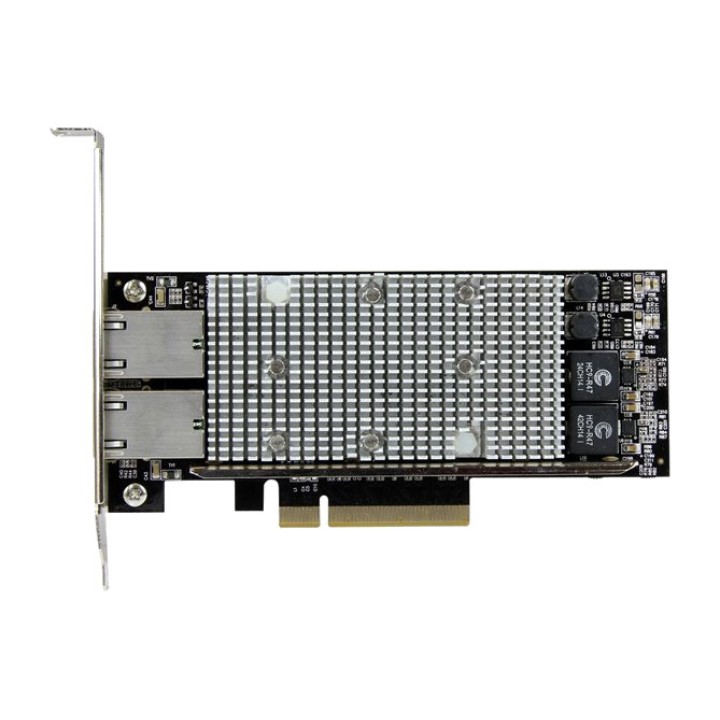

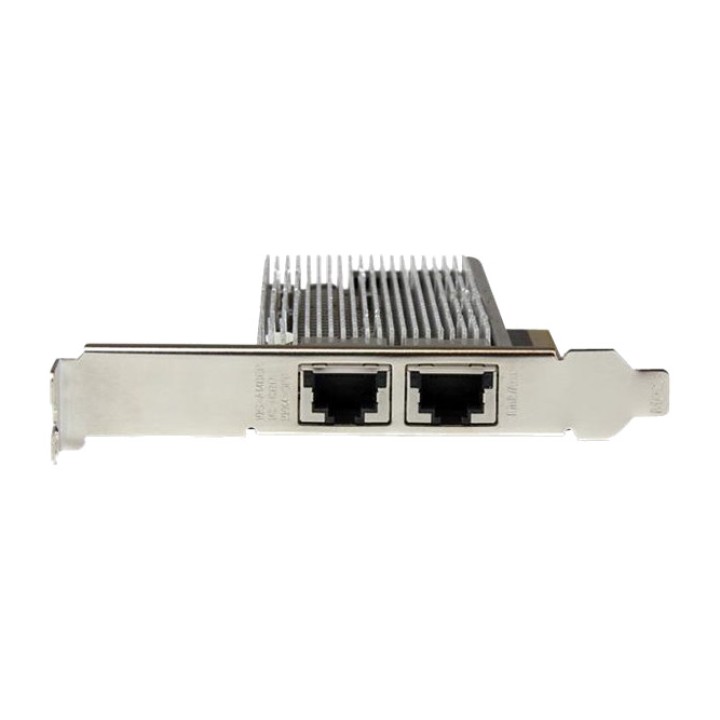

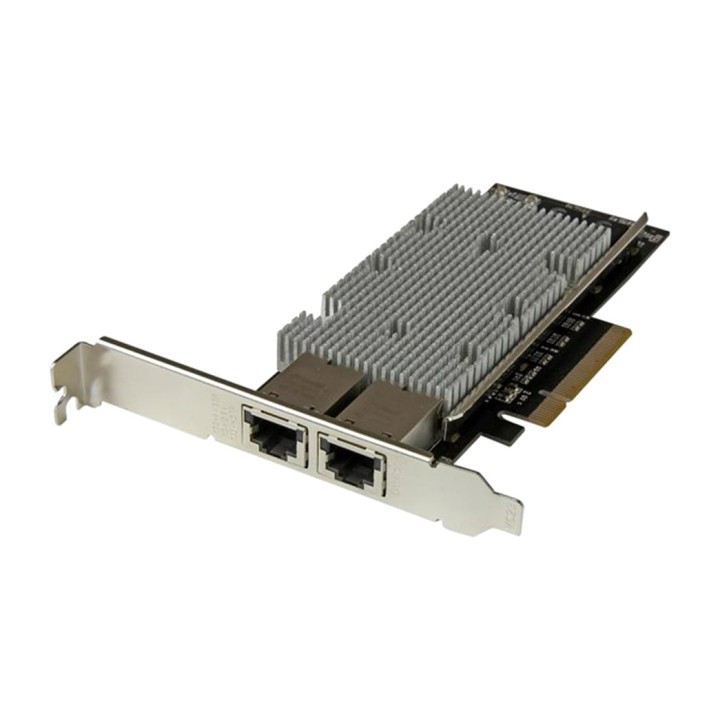

STARTECH.COM PCI Express network card with 2 10 Gigabit ports and Intel chipset X540 10GBASE-T RJ45 ST20000SPEXI DSP0000039482

Features of the Startech PCI Express 10GBase-T Ethernet Network Adapter Card with 2 Ports RJ45
The Startech PCIe 10GbE network card with Intel X540 chipset is a high-performance solution designed for professional environments that require ultra-fast, stable connectivity. With its two 10 Gigabit RJ45 ports, it maximizes bandwidth and improves performance in servers, workstations or demanding network infrastructures.
High-performance 10GbE connectivity
Equipped with two 10GBase-T Ethernet ports, this card offers transfer speeds of up to 10 Gbps per port, achieving total throughput of up to 20 Gbps in full-duplex mode. It is ideal for transferring large volumes of data, virtualization or business environments.

2 RJ-45 10Gb Ethernet ports
Transfer speed of up to 10 Gbps per port
Full-duplex performance of up to 20 Gbps

Intel X540 chipset: stability and professional compatibility
The Intel X540 chipset ensures reliable operation and broad compatibility with operating systems and professional environments, including Windows servers, VMware ESXi and Linux distributions. A robust option for critical integrations.

Integrated Intel X540 processor
Compatible with Windows, Linux and VMware
Optimized for server and virtualization environments

PCIe 2.0 x8 interface and versatile design
Its PCI Express 2.0 x8 interface allows easy integration into compatible equipment, ensuring sufficient bandwidth for high-speed networks. It also includes low-profile support to fit different chassis configurations.

PCIe interface 2.0 x8
Plug-in card form factor
Includes low-profile bracket

Advanced network features
It integrates advanced features such as LACP, Jumbo Frames and auto MDI/MDI-X, which improve network efficiency, optimize traffic and facilitate automatic configuration. Designed to offer flexibility and maximum performance in demanding environments.

Jumbo Frames support (up to 15000)
LACP support (IEEE 802.3ad)
Auto MDI/MDI-X and full-duplex operation

Network compatibility and standards
Compatible with multiple Ethernet standards, this card ensures interoperability with existing networks and scalability to higher-speed infrastructures.

IEEE 802.3u, 802.3ab, 802.3an, 802.3az
Support for Fast Ethernet, Gigabit and 10 Gigabit Ethernet
100Base-TX, 1000Base-T and 10GBase-T cabling

Robust design and operating conditions
Built for reliability in professional environments, it supports a wide range of operating conditions and features LED indicators to monitor connection status.

Operating temperature: 5 °C to 50 °C
Operating humidity : 20% - 80%
LED status and activity indicators

Other specifications

COLOUR: BLACK
Dimensions: 2 x 12 x 16.3 cm
Weight: 160g
Compliance: FCC, RoHS
Compatible with multiple Startech devices (specified P/N)
Volume (m ³): 0.0012
