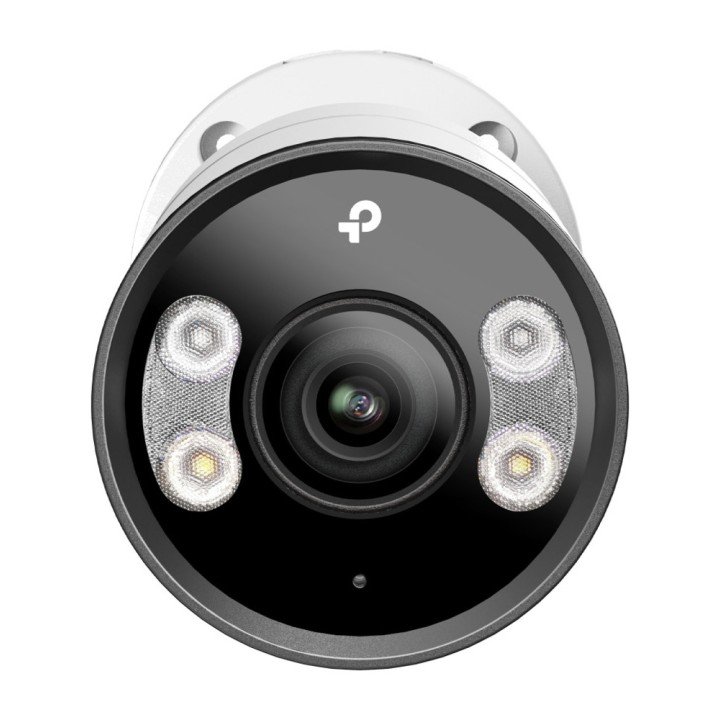

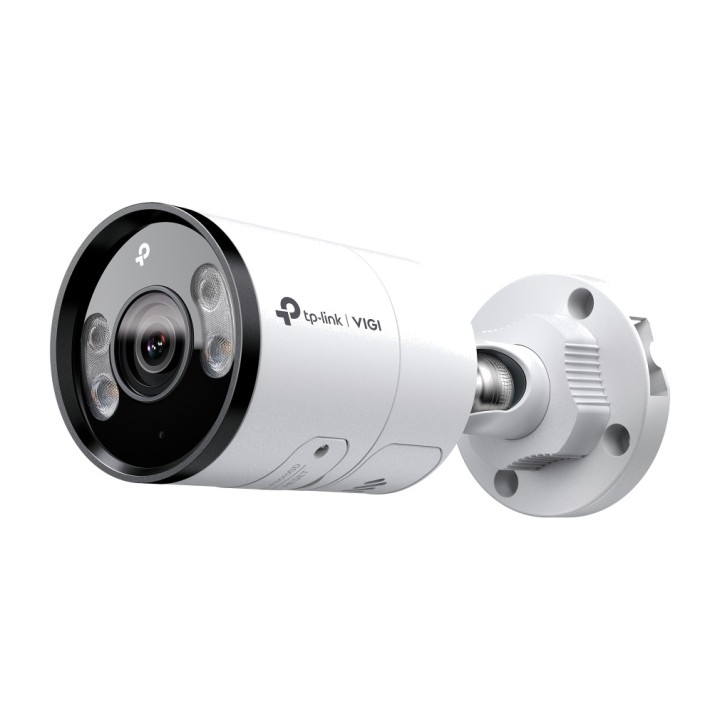

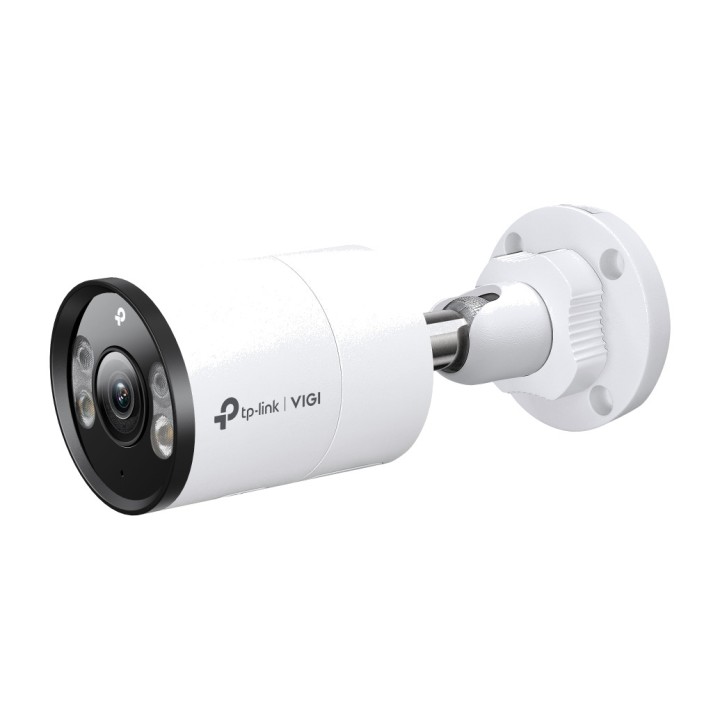

TP-LINK Outdoor bullet-style IP security camera VIGI-INSIGHT S385 2,8MM 4K 8MP MGS0000037294

Features of the TP-Link VIGI InSight S385 2.8mm 4K UHD 8MP Security Camera
The TP-Link VIGI InSight S385 is an outdoor bullet-style IP security camera designed to provide advanced surveillance with 4K UHD 8-megapixel resolution and full-colour imaging 24 hours a day. It features intelligent people and vehicle detection and analysis, active deterrence, two-way audio and image enhancement technologies. With its IP67 protection, PoE connectivity and H.265+ compression, it is suitable for monitoring homes, shops, offices, entrances and other premises that require reliable surveillance both day and night.
4K UHD 8MP resolution for detailed surveillance
Equipped with a 1/2.7-inch progressive-scan CMOS sensor, the VIGI InSight S385 captures images at a maximum resolution of 3840 x 2160 pixels. This definition makes it possible to see people, vehicles and surrounding features in greater detail. Its 2.8 mm fixed lens provides a wide field of view, especially useful for monitoring entrances, car parks, façades and open spaces.

Maximum resolution: 3840 x 2160 pixels (4K UHD, 8MP).
Sensor: progressive-scan CMOS 1/2,7".
Lens: 2.8 mm fixed lens with aperture F1.6.
Field of view: 111.4° horizontal, 58.8° vertical and 134° diagonal.
Lens mount : M12 x P0,5.
Shutter speed: 1/3 to 1/10000 seconds, with slow shutter function.
Frame rate: up to 25 fps under normal conditions.
Main stream resolutions: 3840 x 2160, 2560 x 1440, 2304 x 1296, 2048 x 1280, 1920 x 1080 and 1280 x 720.

Full-Color night vision with smart illumination
VIGI Full-Color technology delivers colour images 24 hours a day, even in low-light conditions. The camera features two infrared LEDs and two white-light LEDs, both with a range of up to 30 metres, offering different lighting options to suit the environment. Its automatic day/night switching system and IR Cut filter help maintain a suitable image in varying lighting conditions.

Minimum illumination: 0.005 lux, 0 lux with infrared illumination or white light.
Infrared illumination: 2 850 nm IR LEDs with a range of 30 metres.
White-light illumination: 2 LEDs with a range of 30 metres.
Day/night mode: automatic, scheduled or unified.
Illumination control: automatic, scheduled, always on or always off.
Filter: IR Cut for switching between daytime and nighttime conditions.

Smart detection and person and vehicle analytics
The VIGI InSight S385 features intelligent deep-learning-based analytics that can distinguish between people and vehicles, improving the accuracy of security alerts. In addition to detecting motion, it can identify specific events such as line crossing, intrusion or entry into restricted areas. Its analytics tools allow people or vehicles to be searched for and filtered by various attributes, making it easier to review recordings.

Smart classification: distinguishes between people and vehicles.
Advanced analytics: search and filter people and vehicles by attributes.
Intrusion detection: identifies access to monitored areas.
Line crossing: detects passage across defined virtual boundaries.
Region control: detects entry into and exit from configured areas.
Object detection: identifies abandoned or removed objects.
Loitering detection: recognises prolonged stays in monitored areas.
Other events: detection of abnormal sounds, scene changes, video tampering and illegal login attempts.

Active deterrence and communication via two-way audio
This camera features an active deterrence system with audible alerts and white-light flashes that can be activated in response to certain security events. Its built-in microphone and speaker enable two-way communication through compatible management systems, a practical feature for communicating with visitors or responding remotely to an incident.

Two-way audio: built-in microphone and speaker.
Microphone pickup range: up to 5 metres.
Active defense: audible warnings and white light flashing.
Actions in response to alarms: recording to a memory card, push notifications, and audible or visual alerts.
Ambient noise filtering: integrado.
Sampling rate: 8 kHz.
Audio bit rate: 64 Kbps using G.711 A-law.

Intelligent image enhancement and wide dynamic range
TP-Link VIGI video enhancement technology optimizes viewing in challenging lighting conditions. It includes features such as 120 dB WDR, 3D DNR digital noise reduction, BLC backlight compensation, and SmartIR. These tools help balance bright and dark areas, reduce visual interference, and improve the visibility of important details.

WDR: 120 dB dynamic range; DWDR is supported when person and vehicle detection is enabled.
3D DNR: digital noise reduction.
BLC and HLC: backlight and highlight compensation.
SmartIR: intelligent infrared illumination adjustment.
Signal-to-noise ratio: 52 dB or higher.
Image settings: brightness, contrast, saturation, sharpness, exposure, white balance, and mirror effect.
Privacy: up to 4 configurable masks.
Region of interest: 1 ROI zone.
OSD configuration: supports on-screen overlay information.

Efficient recording with H.265+ compression and MicroSD storage
Thanks to its H.265+ compression technology, the VIGI InSight S385 reduces bandwidth consumption and storage requirements compared with less efficient formats, while maintaining high image quality. It also features a MicroSD card slot supporting cards up to 512 GB, providing local storage for security recordings.

Main stream compression: H.265+, H.265, H.264+ and H.264.
Sub-stream compression: H.265 and H.264.
Profiles: H.264 High Profile and H.265 Main Profile.
Bit rate control: CBR and VBR.
Main bitrate: 256 Kbps to 8 Mbps.
Sub-bitrate: 64 to 512 Kbps.
Sub-stream resolutions: 848 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288 and 320 x 240.
Storage: MicroSD slot compatible with cards up to 512 GB.
Simultaneous streams: up to 3 main streams and 3 sub-streams.

PoE connectivity and remote management with the VIGI ecosystem
The camera features a 10/100 Mbps RJ45 Ethernet port with PoE support, allowing data transmission and power delivery through a single network cable when used with compatible infrastructure. It also supports a separate 12V DC power supply. Compatibility with VIGI App, VIGI Security Manager, VIGI VMS and VIGI Cloud services makes it easy to monitor and manage the security system remotely.

Network connection: 1 self-adaptive 10/100 Mbps RJ45 Ethernet port.
Power supply: 12V DC ±5%, maximum power consumption of 10,5 W.
PoE: IEEE 802.3af/at, class 0, maximum power consumption of 11,5 W.
Power connector: 5.5 mm coaxial.
ONVIF compatibility: profiles S, T and G.
Management: VIGI App, VIGI Security Manager, web interface, VIGI VMS and VIGI Cloud VMS.
Web access: Chrome 57+, Firefox 52+, Safari 11+ and Edge 91+.
Security: passwords, HTTPS encryption, IP filtering and Digest authentication.
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6 and ARP.
Reset button: integrado.

IP67-rated rugged design for outdoor installations
Designed to operate in demanding environments, the TP-Link VIGI InSight S385 features a metal housing and an IP67 rating, providing protection against dust and water. Its bullet form factor makes it easy to install on walls and other compatible surfaces, while its manual adjustment system lets you point the camera towards the area you want to monitor. With an operating range of -30 °C to 60 °C, it is ready for year-round outdoor use.

Form factor: bullet-style outdoor IP camera.
Material: metal housing.
Protection: IP67 against dust and water.
Operating temperature: from -30 °C to 60 °C.
Storage temperature: from -40 °C to 60 °C.
Humidity: up to 95%, non-condensing, during operation and storage.
Dimensions: 184 x 74 x 74 mm.
Net weight: 525 g.
Manual adjustment: horizontal rotation from 0° to 360°, tilt from 0° to 90° and rotation from 0° to 360°.
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC and IC.

Other technical specifications
The 2.8 mm VIGI InSight S385 has additional settings that make it easier to configure and adapt to different video surveillance installations. Its DORI distances indicate the approximate ranges for detecting, observing, recognising and identifying objects in a scene.

DORI detection distance: 85 metres.
DORI observation distance: 35 metres.
DORI recognition distance: 17 metres.
DORI identification distance: 8 metres.
Frame rate limitation: up to 20 fps when the image is rotated by 90° or 270°, or when 120 dB WDR is enabled.
Additional functions: image parameter adjustment, infrared overexposure prevention and settings via client software.

PACKAGE CONTENT
The TP-Link VIGI InSight S385 includes the components needed to prepare its installation and begin configuration within a compatible network infrastructure.

TP-Link VIGI InSight IP camera S385.
Quick installation guide.
Cable waterproofing accessories.
Mounting accessories.
