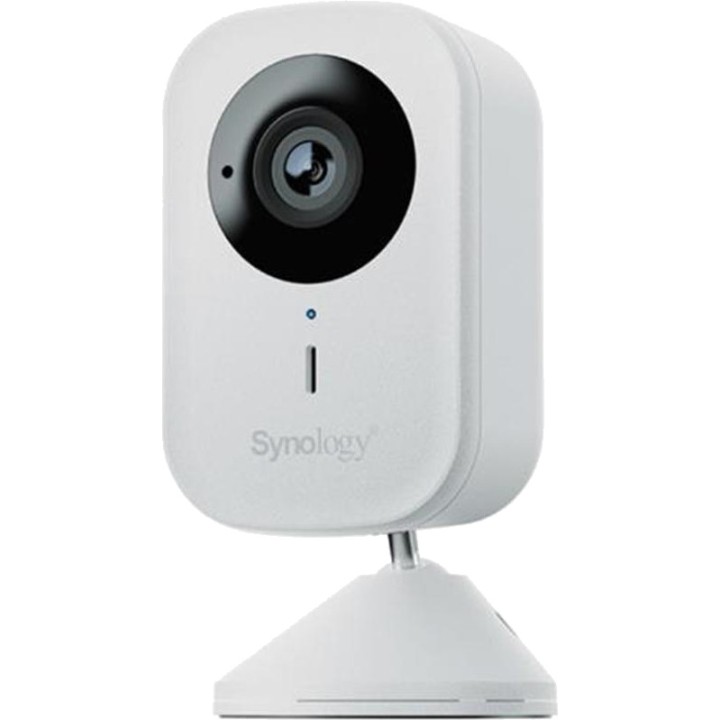

SYNOLOGY Indoor WiFi IP surveillance camera with night vision CC410W 4MP DSP0000043086

Surveillance Camera Features CC410W
The CC410W surveillance camera is an IP solution designed for indoor video surveillance. It offers a maximum resolution of 2560 x 1440 pixels, night vision, motion detection and a built-in microphone, allowing you to monitor spaces with a detailed image both day and night. Its WiFi connectivity makes installation easy without the need for an Ethernet connection.
High-resolution images and smooth recording
The CC410W achieves a maximum resolution of 2560 x 1440 pixels and a playback rate of up to 30 fps. Its 1/3.2 optical sensor and F2,4 focal ratio deliver an image suitable for indoor surveillance tasks, with a minimum brightness of 0,05 lux.

Maximum horizontal resolution: 2560 px
Maximum vertical resolution: 1440 px
Playback speed: 30 fps
Optical sensor size: 1/3.2
Focal ratio: F2,4
Minimum brightness: 0,05 lux
Shutter duration: 0 sec

Wide viewing angle
Its optical system provides a wide field of view, making it easy to monitor a large area from a single installation point.

Horizontal angle: 125°
Vertical angle: 72°
Diagonal angle: 145°

Night vision and motion detection
Thanks to night vision and the motion sensor, the camera can be used to maintain surveillance even when lighting conditions change. Its Day&,Night function adapts operation to daytime and nighttime conditions.

Night vision: Yes
Motion sensor: yes
Day&,Night function: yes
Built-in microphone: Yes

WiFi connectivity and IP technology
The CC410W uses IP technology with a WiFi connection, allowing it to be integrated into a wireless network. It has two antennas and a management interface, but does not include Ethernet RJ-45 ports or USB connections.

Network interface: WiFi
Technology: IP
Number of antennas : 2
Management interfaces : 1
Ethernet ports LAN RJ-45: 0
Ports USB: 0

Video and photography compatibility
The camera supports several video compression formats, making it easy to integrate into different video surveillance environments. It can also work with digital images in JPEG format.

Accepted video formats: H264, H265 and MJPEG
Digital photography format: JPEG

Compact design for indoor use
Its cube-shaped design and white finish are intended for discreet installation in indoor spaces. Measuring 110 x 110 x 47 mm and weighing 200 g, it is easy to position using the included mounting brackets.

Supported placement: Indoor
Device type: video camera
Shape: Cube
Main colour: White
Water resistance: no
WIDTH: 110MM
HEIGHT: 110MM
Depth: 47 mm
Weight: 200g

Power supply and operating conditions
The CC410W uses a 5 V DC power supply and is designed to operate within a temperature range of -20 °C to 40 °C.

Power supply type: DC
Feeding : 5 V
Minimum operating temperature : -20 °C
Maximum operating temperature : 40 °C

Protocols and memory
For communications, the camera supports HTTPS and IPv4/IPv6. It does not include QoS support according to the specifications provided.

HTTPS protocol: yes
IPv4/IPv6 protocol: yes
QoS protocol: no
Internal memory: 1.024
Flash memory capacity: 8.192

PACKAGE CONTENT
The product includes the items needed to facilitate installation and setup, including cabling, documentation and mounting brackets.

Cables included: yes
User manual: yes
Mounting brackets included: Yes
Volume (m ³): 0.0022
