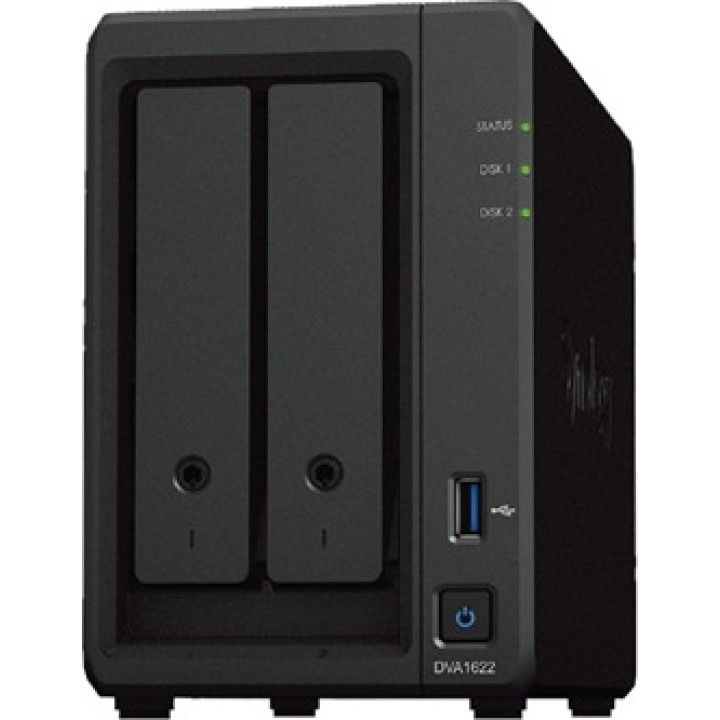

SYNOLOGY 2-bay network video recorder with AI for video surveillance DVA1622 4K DSP0000009247

Synology DVA1622 NVR 2Bay specifications 4K IA


Brand Synology
MODEL DVA1622
Software File system
- Internal: Btrfs, ext4
- External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
Storage management
- Maximum size of a single volume : 108 TB
- Maximum number of system snapshots : 65.536
- Maximum number of internal volumes : 64
Shared file services
- Maximum number of local user accounts : 2.048
- Maximum number of local groups : 256
- Maximum number of shared folders : 512
- Maximum number of simultaneous SMB/NFS/AFP/FTP connections : 100
- Synology Hybrid RAID, Basic , JBOD, RAID 0, RAID 1
Others
- Privileges: Windows Access Control List (ACL) and the privileges of the
Application
- Directory services: Connects to Windows AD/LDAP servers, which
allows users
of the domain to log in via SMB/NFS/AFP/FTP/File Station using their
existing credentials
- Security: Firewall, shared folder encryption, SMB encryption, FTP over
SSL/TLS, SFTP, rsync over SSH,
automatic login blocking, Lets Encrypt and HTTPS support
(custom encryption sets)
CPU hardware
- 4-core (4-thread) Intel Celeron J4125 at 2.0 GHz, with turbo up to
2,7 GHz
- Hardware encryption engine: AES-NI
MEMORY
- DDR4 memory 6 GB (2 GB + 4 GB)
Storage
- Supported drive types: 2 x 3.5" SATA HDDs (drives not included)
- Hot-swappable drives
External ports
- External ports
2 x USB 3.2 Gen 1 ports
1 x HDMI
- LAN ports: 1 x 1 Gb E RJ-45
Others
- Wake on LAN/WAN
- Scheduled power on/off
- System fans: 1 (92 x 92 x 25 mm)
- AC input voltage: 100 to 240 V CA
- Power frequency: 50/60 Hz, single-phase
Other Features Appearance
- Form factor: Desktop
- Size (H x W x D) 166 x 106 x 223 mm
- Weight 1.51 kg
Environment
- Operating temperature: 0 C to 40 C (32 F to 104 F)
- Operating relative humidity: 8% to 80% RH
- Storage temperature: -20 C to 60 C (-5 F to 140 F)
- Storage relative humidity: 5% to 95% RH
- Maximum operating altitude 5000 m (16 400 ft)
CERTIFICATION
- Compliant with regulations: RoHS
PACKAGE CONTENT
- Main unit DVA1622
- Accessory pack
- 1 AC power adapter
- 1 AC power cables
- 1 cable LAN RJ-45
- Quick installation guide
Volume (m ³): 0.0094
