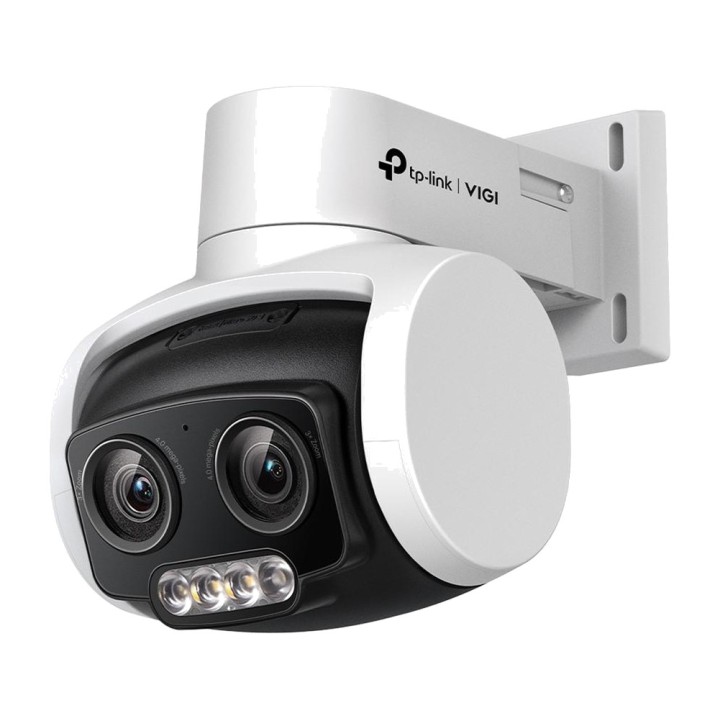

TP-LINK Motorized outdoor IP surveillance camera with zoom 3x VIGI C540V 4MP MGS0000036522

Features of the VIGI C540V Full Color PTZ IP Camera from 4 MP
The VIGI C540V is an outdoor PTZ IP surveillance camera designed to provide detailed monitoring both day and night. Its 4 MP resolution, 24/7 Full Color technology, 3x hybrid zoom and intelligent detection features allow outdoor areas to be monitored with greater precision. It also features Pan & Tilt movement, two-way audio, active deterrence with light and sound, MicroSD storage and IP66 protection.
High-definition image of 4 MP
The VIGI C540V captures images at a maximum resolution of 2560 x 1440 pixels, providing a high level of detail to facilitate the monitoring and identification of people, vehicles and other elements in the scene. Its 1/3 progressive scan CMOS sensor and various image enhancement options help deliver balanced results in different lighting conditions.

Maximum resolution: 2560 x 1440 pixels
Progressive-scan CMOS sensor of 1/3
Shutter speed: 1/3 to 1/10000 s
Slow Shutter: yes
Signal-to-noise ratio: 52 dB or higher
Image enhancements: BLC, 3D DNR, HLC and SmartIR
Dynamic range: DWDR

24/7 Full Color vision and integrated lighting
Thanks to its F1.6 aperture, high-sensitivity sensor and integrated lighting, the camera can maintain colour images even in very low-light conditions. It features infrared illumination and white light with a range of up to 30 metres, allowing surveillance to be adapted to different night-time environments.

Minimum illumination: 0.005 Lux
0 Lux with IR illumination or white light
1 850 nm infrared LED with a range of up to 30 m
3 white-light LEDs with a range of up to 30 m
Automatic, scheduled, always-on or always-off lighting control
IR-cut filter for day/night mode
Day, Night, Auto or Scheduled switching

3x hybrid zoom and 4-12 mm lens
The lens with a 4-12 mm focal length and 3x hybrid zoom lets you adjust the framing and quickly zoom in on specific areas. Its field of view supports both general area surveillance and observation of points farther away.

Focal length: 4-12 mm
Hybrid zoom: 3x
OPENING: F1.6
Diagonal field of view: 100°
Horizontal field of view: 84°
Vertical field of view: 46°
Lens mount : M12 P 0.5

PTZ movement for flexible coverage
The motorised Pan & Tilt system lets you point the camera towards different areas and save preset positions for quick access to important points. It also supports automatic patrols and restoration of the previous lens and PTZ state after a power failure.

Horizontal Pan movement: from 0° to 332°
Vertical Tilt movement: from 0° to 120°
Configurable horizontal speed: from 1° to 55°/s
Preset horizontal speed: 55°/s
Configurable vertical speed: from 1° to 40°/s
Preset vertical speed: 40°/s
Manual control speed: from 8° to 35°/s
Up to 300 preset positions
8 patrols with up to 8 positions per patrol
Positioning 3D
Memory after power failure
Park Action function with preset positions and patrols

Intelligent detection of people, vehicles and events
The integrated algorithms can distinguish people and vehicles from other objects, reducing unnecessary alerts and enabling more precise surveillance. It also incorporates various intelligent events to monitor access, zone crossings and possible tampering.

People and vehicle classification
Area intrusion detection
Line-crossing detection
Person detection
Vehicle detection
Region entrance detection
Region exit detection
Abandoned object detection
Object removal detection
Motion detection
Video tampering detection
Illegal login exception detection

Active deterrence with light and sound
When a configured event occurs, the VIGI C540V can activate different response mechanisms. Its active defense system, using an audible warning and a flashing white light, can deter suspicious behavior, while also starting a recording or sending a notification.

Built-in audible alert
Flashing white light
Recording to memory card
Sending messages and notifications

Built-in two-way audio
The camera features a microphone and speaker, allowing you to hear what is happening in the monitored area and hold two-way conversations. It also includes ambient noise filtering to improve audio clarity.

Two-way audio
Integrated microphone
BUILT-IN SPEAKER
Audio input and output
Sampling frequency: 8 kHz
Audio bitrate: 64 Kbps using G.711 alaw
Ambient noise filtering
Microphone pickup range of up to 15 feet

H.265+ compression to optimize storage and network usage
H.265+ compression technology reduces the storage space required for recordings and the bandwidth used by the network while maintaining high image quality. The camera is also compatible with H.265, H.264+ and H.264.

Main stream: H.265+, H.265, H.264+ and H.264
Secondary stream: H.265 and H.264
Bitrate control: CBR and VBR
Main stream bitrate: 256 Kbps to 4 Mbps
Sub-stream bitrate: 64 Kbps to 512 Kbps
H.264: Main Profile and High Profile
H.265: Main Profile

Smooth recording and multiple resolutions
The VIGI C540V lets you adapt the resolution and frame rate to the requirements of each installation. The main stream supports up to 30 fps in 60 Hz systems and up to 25 fps in 50 Hz systems, as well as a lower-resolution sub-stream to optimize resources.

Main stream: 2560 x 1440, 2304 x 1296, 2048 x 1280, 1920 x 1080 and 1280 x 720
Sub-stream: 640 x 480, 352 x 288 and 320 x 240
Up to 25 fps at 50 Hz
Up to 30 fps at 60 Hz
With image rotation at 90° or 270°, supports up to 20 fps

Advanced image settings
To adapt the image to each environment, the camera offers multiple configuration options accessible through the client software. These allow you to adjust visual parameters, manage privacy zones and optimize exposure.

Mirror, brightness, contrast, saturation and sharpness adjustment
Exposure and white balance settings
Prevention of overexposure from infrared light
Adjustable HLC
Up to 4 privacy masks
1 ROI region
OSD configuration
Changing image parameters

Network connectivity, PoE and ONVIF compatibility
The camera features a 10/100 Mbps RJ45 Ethernet interface with PoE, making installation easier with a single compatible network cable for data and power. Its ONVIF compatibility and various network protocols facilitate integration into video surveillance systems.

Auto-adaptive 10/100 Mbps RJ45 Ethernet port
PoE IEEE 802.3at Class 4
ONVIF compatibility
Open Network Video Interface, Profile S
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP and SSL/TLS protocols
Up to 3 main streams and 3 sub-streams in simultaneous viewing
Compatibility with Cloud services

Control via VIGI App, browser, NVR or management software
The VIGI C540V offers various management and viewing options to suit both simple installations and more comprehensive surveillance systems. It can be managed via the mobile app, web browser, a VIGI NVR or VIGI Security Manager.

VIGI App
VIGI Security Manager
VIGI NVR
Management via web browser
Google Chrome 57 or later
Firefox 52 or later
Safari 11 or later
Microsoft Edge 91 or later

Network security and MicroSD storage
The camera incorporates various measures to protect access and communications, including HTTPS encryption and authentication. It also allows recordings to be stored directly on a MicroSD card, providing an independent local storage option.

Integrated MicroSD card slot
Capacity up to 256 GB
Password protection
HTTPS encryption
IP address filter
Digest authentication
Integrated reset button

IP66 protection for outdoor installations
Its IP66-certified housing is designed to withstand the ingress of dust and water, allowing the camera to be installed outdoors. Its wide operating temperature range makes it suitable for use in different environmental conditions.

Protection IP66
Operating temperature: from -30°C to 60°C
Storage temperature: from -40°C to 60°C
Operating humidity: up to 95% non-condensing
Storage humidity: up to 95% non-condensing
Plastic material

Power supply and energy consumption
The VIGI C540V can be powered via 12 V DC or PoE 802.3at, offering flexibility when integrating it into a new or existing installation. Power consumption varies depending on the operating mode and the type of lighting used.

Feeding : 12 V CC ± 5%
5.5 mm coaxial power connector
PoE IEEE 802.3at, Class 4
Maximum consumption : 14 W
Typical power consumption in day mode : 2,9 W
Typical power consumption in night mode with LED IR: 5,7 W
Typical power consumption in night mode with white LED : 6,1 W

DORI distances
DORI distances provide a reference for the camera’s ability to detect, observe, recognize and identify targets at different focal lengths.

At 4 mm: detection up to 80 m, observation up to 33 m, recognition up to 16 m and identification up to 8 m
At 8 mm: detection up to 150 m, observation up to 63 m, recognition up to 30 m and identification up to 15 m

Dimensions, weight and package contents
The camera features a design intended for fixed installation in outdoor video surveillance systems and includes the accessories needed to facilitate mounting and protect the connections from environmental conditions.

Dimensions: 139 x 136 x 107 mm
Net weight: 0.43 kg
Gross weight: 0.66 kg
VIGI network camera
Quick Start Guide
Waterproof cable accessories
Mounting accessories
Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC and IC
Volume (m ³): 0.0046
