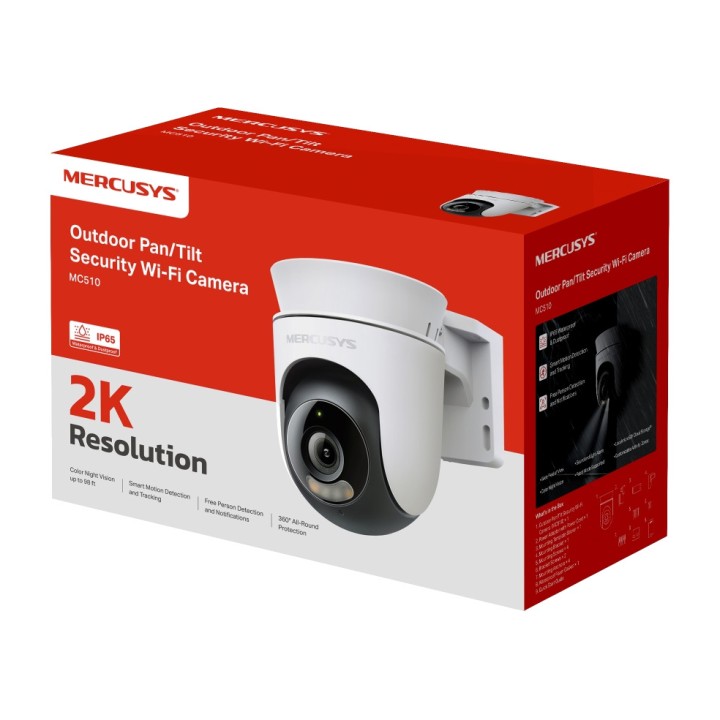

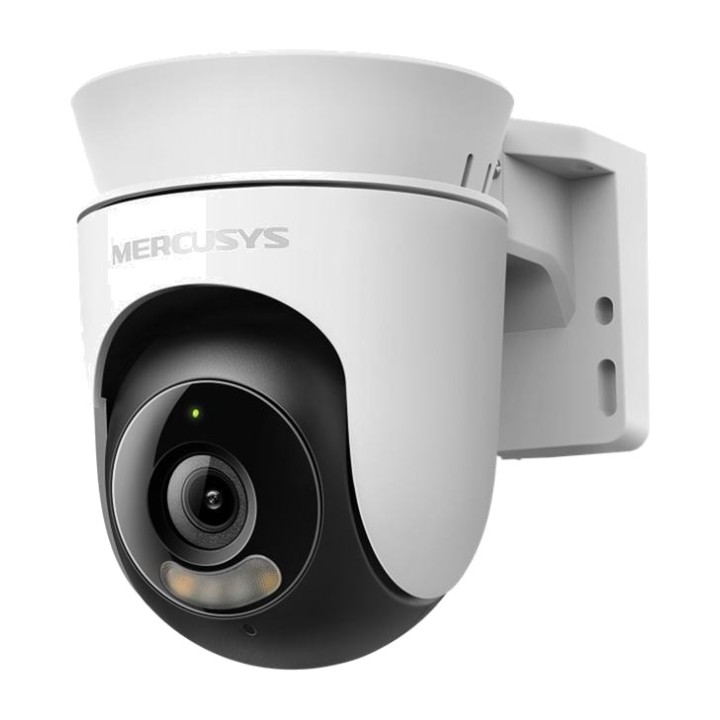

MERCUSYS Motorized outdoor IP surveillance camera MC510 2K 3MP DSP0000041661

Features of the MC510 360° Wi-Fi outdoor security camera
The MC510 is an outdoor Wi-Fi security camera designed to provide comprehensive surveillance in high resolution, with 2K QHD imaging, 360° pan movement and smart detection features. Thanks to its IP65 rating, color night vision and two-way audio, it is a practical solution for protecting entrances, patios, garages or outdoor areas around the home.
2K QHD imaging with coverage of 360°
Its progressive-scan CMOS sensor captures video at a maximum resolution of 2304 x 1296 px, delivering a clear, detailed image. In addition, its pan-and-tilt system provides wide coverage for better monitoring of every area under surveillance.

Maximum resolution: 2304 x 1296 px
Progressive-scan CMOS sensor of 1/3"
Field of view: 87° diagonal, 74° horizontal and 40° vertical
Mechanical pan range: 340° with coverage of 360°
Mechanical tilt range: 90° with coverage of 130°

Smart detection and automatic tracking
The MC510 features motion detection and person detection, helping focus surveillance on important events. You can also configure activity zones to reduce unnecessary alerts and receive notifications only when needed.

AI motion detection
Person detection
Smart person and motion tracking
Customizable activity zones
System notification

Color night vision and protection 24/7
Thanks to its 850 nm infrared LEDs and color night vision, this camera maintains effective surveillance even at night. Its IR range of up to 29,9 m lets you monitor outdoor areas more securely in low-light conditions.

Color night vision
850 nm IR LED
Infrared range: up to 29,9 m
Image enhancement 3DNR
Integrated WDR

Two-way audio and integrated siren
The camera features an integrated microphone and speaker, enabling two-way audio communication with noise cancellation. In addition, its 88 dB siren provides an extra deterrent against unwanted movement or presence.

Integrated microphone
BUILT-IN SPEAKER
Two-way audio with noise cancellation
88 dB siren measured at 10 cm

Flexible storage and data security
The MC510 lets you store recordings locally on a microSD card of up to 512 GB or use MERCUSYS Camera Care cloud services with a subscription. It also features 128-bit AES encryption with SSL/TLS to enhance connection security.

microSD card slot
Local storage of up to 512 GB
MERCUSYS Camera Care cloud storage
128-bit AES encryption with SSL/TLS
SECURITY WPA/WPA2-PSK

Designed for outdoor use
With IP65 certification, this camera is designed for outdoor use in rain, dust, or snow. It can be installed on a wall, ceiling, or pole, adapting easily to different surveillance areas.

Weather resistance IP65
wall mount
Ceiling mounting
Pole mounting
Operating temperature: -20 °C to 50 °C

Wi-Fi connectivity and smart integration
The MC510 connects via Wi-Fi and is compatible with Google Assistant and Amazon Alexa, making it easy to integrate into connected homes. It also supports RTSP and ONVIF, expanding its use with compatible systems.

Network connectivity: Wi-Fi
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 72.2 Mbps
Compatible with Google Assistant and Amazon Alexa
RTSP: yes
ONVIF: yes

Other specifications

Lens: 4 mm focal length
OPENING: F2.0
Frame rate: 15/20/25/30 fps, 15 fps by default
Digital zoom: up to 10,8x
Video compression: H.264
Live video: yes
Buttons and interface: 1 reset button and 1 microSD slot
Power supply: power adapter of 9 V CC
Input voltage: 100-240 V AC, 50/60 Hz , 0,3 A
Output voltage : 9.0 V / 0.85 A
Storage temperature: -40 °C to 60 °C
Operating humidity: 10%-90% relative humidity, non-condensing
Storage humidity: 0%-90% relative humidity, non-condensing
Dimensions: 141.5 x 93 x 122 mm
Certifications: CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

PACKAGE CONTENT

Outdoor home security Wi-Fi camera with pan and tilt function MC510 x 1
Power adapter x 1
Mounting template sticker x 1
Mounting bracket x 1
mounting screws x 4
Bracket screws x 2
Mounting plugs x 4
Waterproof foam gasket x 1
Quick Start Guide x 1
Volume (m ³): 0.0028
