PHOENIX Motorised IP surveillance camera with battery and solar panel SENTRY-EV FULL-HD TUYA DSP0000009863

Features of the WiFi Solar Surveillance Camera with 5 W Solar Panel and Tuya Smart
The WiFi solar surveillance camera is designed to provide smart security indoors and outdoors, combining a lithium battery, a 5 W solar panel and an external USB connection. Thanks to its IP67 rating, smart night vision and PIR human detection, it is a practical solution for monitoring homes, businesses, entrances, gardens, patios or outdoor areas without relying exclusively on a power outlet. Compatible with the Tuya Smart app, it allows remote monitoring from mobile devices such as smartphones and tablets. It also supports integration with smart platforms such as Google Home and Alexa, offering a connected, flexible surveillance experience that is easy to manage from anywhere.

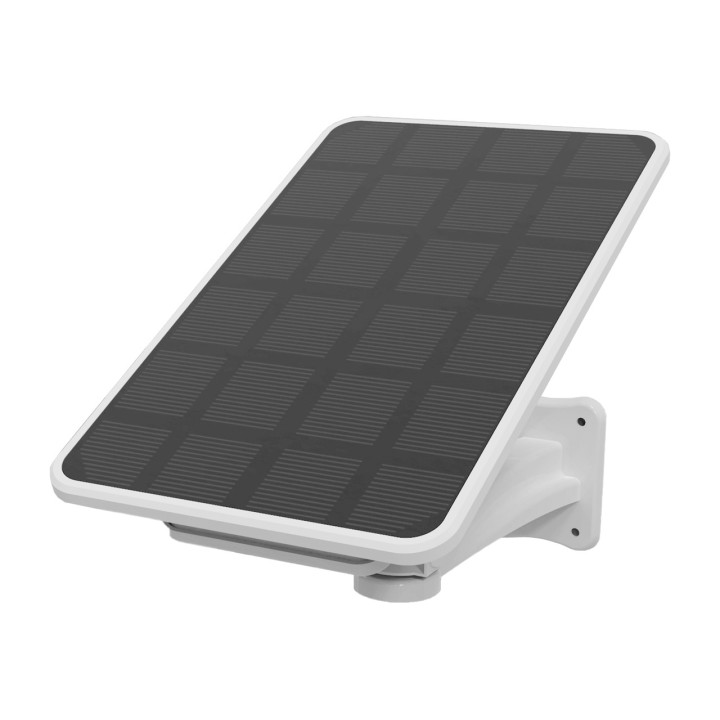

Solar power with panel of 5 W
The camera features a 5 W solar panel compatible with a lithium battery, allowing the system to remain powered more efficiently in outdoor installations. It also supports power via external USB, providing greater flexibility depending on the type of installation.

5 W solar panel included
Compatible with lithium battery
Power supply via solar energy or external USB
Standby consumption: 250 uA

Full HD image with 2 Mpx CMOS sensor
Equipped with a 1/3-inch CMOS image sensor and 2 million pixels, the camera offers an effective resolution of 1920 x 1080. This quality provides clear images for everyday surveillance, in both domestic and professional environments.

Image sensor: 2 million pixels , 1/3 CMOS
Effective resolution : 1920 x 1080
Minimum illumination in colour: 0,15 Lu x@F1.2
PROCESSOR: T31ZL

H.265+ encoding for smooth video
H.265+ encoding technology helps reduce bandwidth usage while maintaining more efficient video transmission. This provides clear, smooth images while optimising data usage during remote viewing.

Video encoding H.265+
Video parameters: adaptive H.265 Pro Stream
Designed to reduce bandwidth usage

Two-way voice intercom
The camera has a built-in microphone and speaker, enabling two-way voice communication. The microphone offers an approximate pickup range of up to 10 metres, while the 1 W speaker allows you to speak remotely with people near the camera.

Built-in microphone with an approximate pickup range of 10 metres
Speaker of 1 W
Supports two-way communication
Allows you to speak remotely from your mobile device

PIR human detection with rapid activation
The camera features PIR motion detection with smart activation based on human figures. Its system enables a rapid start in approximately 600 ms, helping to capture relevant events more quickly when a person is detected.

PIR motion detection
3 sensitivity levels
Approximate activation range: 0 to 12 metres
Activation speed: 600 ms
Notifications in 1 second

Human figure recognition and tracking
Thanks to its built-in intelligent algorithm, the camera supports human silhouette detection and tracking. This feature allows surveillance to focus on relevant movements, improving the system’s usefulness at access points, in courtyards, entrances or passageways.

Integrated intelligent algorithm
Supports human silhouette detection
Supports human figure tracking
Activation via PIR human recognition or from a mobile phone

Motorised rotation from a mobile phone
The camera allows you to control its orientation from your mobile phone, offering 355° horizontal rotation and 120° vertical rotation. This capability makes it easy to cover a wide area and adjust the surveillance view as needed.

Horizontal rotation: 355°
Vertical rotation: 120°
Horizontal rotation speed: 55°/seg
Vertical rotation speed: 40°/seg
Motion control from mobile phone

Night vision with dual light source
The dual light source system combines infrared and white light to provide intelligent night vision. The camera automatically switches between the two modes, adapting to lighting conditions and helping maintain a visible image at night.

Dual light source design
Intelligent switching between infrared and white light
Intelligent light fill system
Integrated night vision

Remote control with Tuya Smart, Google Home and Alexa
The camera is compatible with Tuya's cloud service and is managed via the Tuya Smart app. It enables remote monitoring from mobile phones and tablets, and also supports smart platforms such as Google Home and Alexa for integration into a connected environment.

Compatible app: Tuya Smart
Supports Tuya cloud service
Remote monitoring from smartphone or tablet
Compatible with Google Home and Alexa

WiFi connection and access point mode
The system supports connection via 2.4 GHz WiFi and can also be used via an access point. This connectivity facilitates installation in different scenarios, provided compatible wireless coverage is available.

Connection method: WiFi or access point
WiFi: 2.4 GHz IEEE802.11b/g/n
Designed for remote monitoring

Storage on TF card and in the cloud
The camera supports local storage on an SD card of up to 128 GB, not included, as well as cloud storage by subscription. This dual option lets you choose the recording method that best suits your needs.

Supports SD cards up to 128 GB
SD card not included
Supports cloud storage by subscription

IP67 protection for indoor and outdoor use
With IP67 protection against water and dust, the camera is suitable for both indoor and outdoor installations. Its operating range of -10°C to +50°C allows it to be used in different environmental conditions.

IP67 protection against water and dust
Suitable for indoor and outdoor installations
Working temperature: -10°C to +50°C
Operating humidity: below 95%

RECOMMENDED USE
This WiFi solar security camera is a suitable option for those looking for an autonomous, connected and durable outdoor security solution. Its solar panel, human detection, night vision, motorised rotation and two-way communication make it especially practical for monitoring entrances, gardens, patios, garages, businesses or homes.

Monitoring homes and businesses
Installation in gardens, patios, terraces or entrances
Remote control from a smartphone or tablet
Areas where solar power and outdoor durability are required

Package contents

1 x Camera
1 x Battery with solar panel
1 x Bracket
1 x Screw pack
1 x handbook
1 x Screwdriver

Other specifications

Product: WiFi solar security camera
Image sensor: 2 million pixels , 1/3 CMOS
PROCESSOR: T31ZL
App: Tuya Smart
Minimum illumination: color 0.15 Lu x@F1.2
Effective pixels : 1920 x 1080
Video encoding: H.265 Pro adaptive stream
Audio: microphone, approximate pickup range of 10 meters and speaker of 1 W
Communication: two-way
Local storage: SD card up to 128 GB, not included
Cloud storage: by subscription
Connection: WiFi or access point
WiFi: 2.4 GHz IEEE802.11b/g/n
Mounting platform: horizontal 355° and vertical 120°
Horizontal rotation speed: 55°/seg
Vertical rotation speed: 40°/seg
Detection alarm: PIR motion
PIR sensitivity: 3 levels
PIR activation range: approximately 0 to 12 meters
Smart algorithm: human silhouette detection and tracking
Active wake-up: PIR human recognition or activation via mobile phone
Activation speed: 600 ms
Notifications: 1 second
Night vision: smart switching between infrared and white light
Power supply: lithium battery, solar power and external USB
Standby consumption: 250 uA
Normal consumption: 250 mA
Daytime consumption : 2 W
Nighttime consumption : 2,8 W
Working temperature: -10°C to +50°C
Operating humidity: below 95%
Camera size: 220 x 170 x 115 mm
Camera weight: 0.52 kg
Solar panel size: 235 x 140 x 31 mm
Solar panel weight: 0.87 kg
Protection: IP67 against water and dust
Volume (m ³): 0.0108
