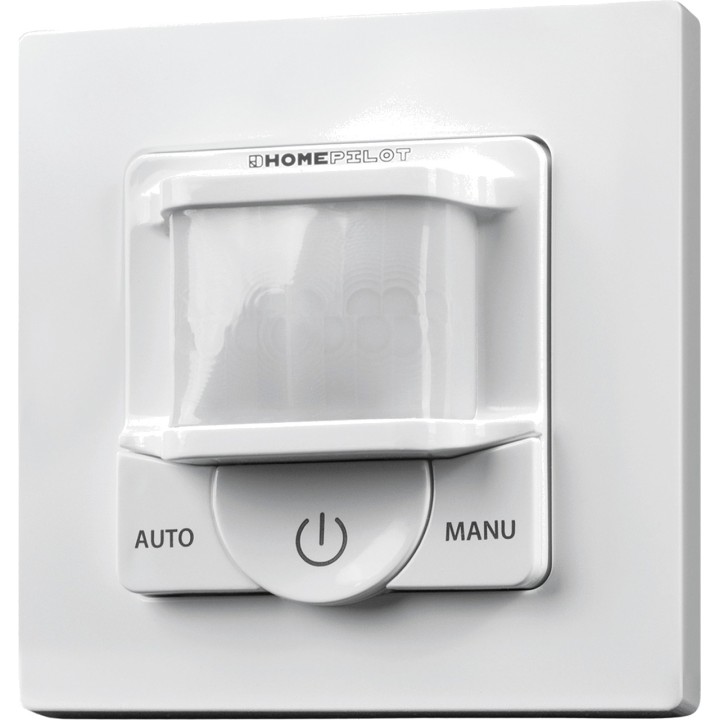

HOMEPILOT Indoor smart motion detector DUOFERN-11771001 100026430

The motion detector is an intelligent indoor motion detector with an integrated actuator that can be controlled independently. It is ideal for monitoring movement inside homes, rooms, stairways or corridors, enabling intelligent lighting control. With a detection angle of approx. 170° in two horizontal planes and a detection range of up to 10 m, the motion detector ensures reliable coverage of the movement area. The device buttons can still be used to switch the connected lighting on and off locally. In addition, the motion detector offers the option of deactivating motion detection at the touch of a button. The motion detector can be used both for individual applications (standalone) and in combined mode. The intelligent motion detector is designed as a flush-mounted device for indoor use. The electrical connection is made using terminals on the rear of the installation housing. Thanks to its dimensions of 50 x 50 mm, the motion detector can be integrated into switch ranges available on the market. Depending on the switch range used, an intermediate frame measuring 50 x 50 (in accordance with DIN 49075) may be required. Other functions, such as individually adjustable sensitivity, delay time and a continuously adjustable brightness threshold, intelligently round out the motion detector's features.
Type: Motion Detector
Smart home: DuoFern, HOMEPILOT, DuoFern, Homepilot
Device properties - Device type: Domótica
Application: Interior
Range - Max. reception (open field): 100 m
Temperature range - Operation : 0 - 40 °C
Radio - Frequency: Off 434.5 MHz
Monitoring area - distance: 10 m
