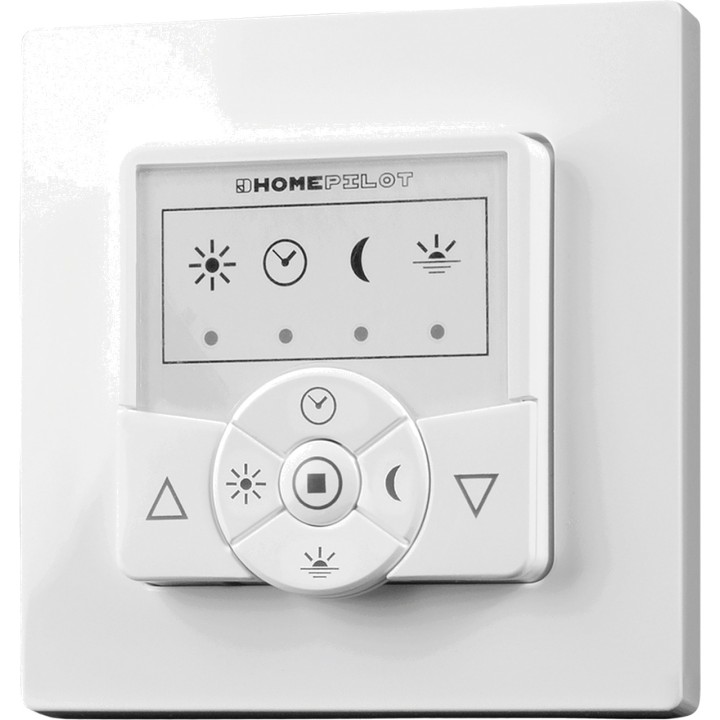

HOMEPILOT Recessed roller shutter timer CLASSIC SMART 10502002 100026416

The HOMEPILOT classic smart timer is used to connect and control up to three tubular motors for roller shutters, blinds and slats, or awnings that can be connected in parallel. With the classic smart timer, you can lower the shutters to the desired height, for example via your mobile phone when the sun suddenly dazzles you at your desk in your home office, and raise or lower them at certain times of day or at sunrise and sunset. Using the random function to raise and lower the shutters at different times simulates an occupied home when you are away and deters burglars. The app can also be used to check the status while you are out (is the shutter already closed?). The classic smart timer can also be controlled via other smart devices, for example with a remote control. The classic smart timer not only impresses with its modern design, but also has a large display with illuminated symbol LEDs, providing a quick and easy overview of the activated automatic functions. It also features automatic dimming of the indicator lights. The lower the shutter moves, the dimmer the LEDs shine. The existing manual switch can easily be replaced with the timer, and the shutters now operate automatically. Of course, you can continue to use the device buttons and operate the shutter manually. The classic smart timer can also be connected to the premium gateway. This provides numerous smart automation options. Whether the standard/weekly/daily programme, random function or astronomical function is set for radio control, these options offer comfort and security in everyday life. Of course, you can also switch between manual and automatic control of the radio receiver at any time simply by pressing a button. The classic smart timer for roller shutters is designed in accordance with DIN 49075 and can be integrated into all common switch ranges using intermediate frames. It is the perfect solution for retrofitting existing non-radio roller shutter motors. This means that roller shutters can be operated conveniently via the transmitter, the premium gateway or in the classic manual way.
Type: Timer
Smart home - compatible: DuoFern, HOMEPILOT, DuoFern, Homepilot
Application Field: Interiors
Switch type: Timer
Control: Manufacturer's Application
Communication: Wi-Fi
Function switching: Random switching
Number of keys: 7 unit(s)
Devices: Max. 3 controllable devices
Radio - Free-field range: 100 metre(s)
Power supply - switching capacity: Max. 8 A
Type of protection: IP30
Protection class: II
Operating temperature: 0 °C to 40 °C
Installation depth: 32 mm
Dimensions: Width: 50 mm x Height: 50 mm x Depth: 12 mm
