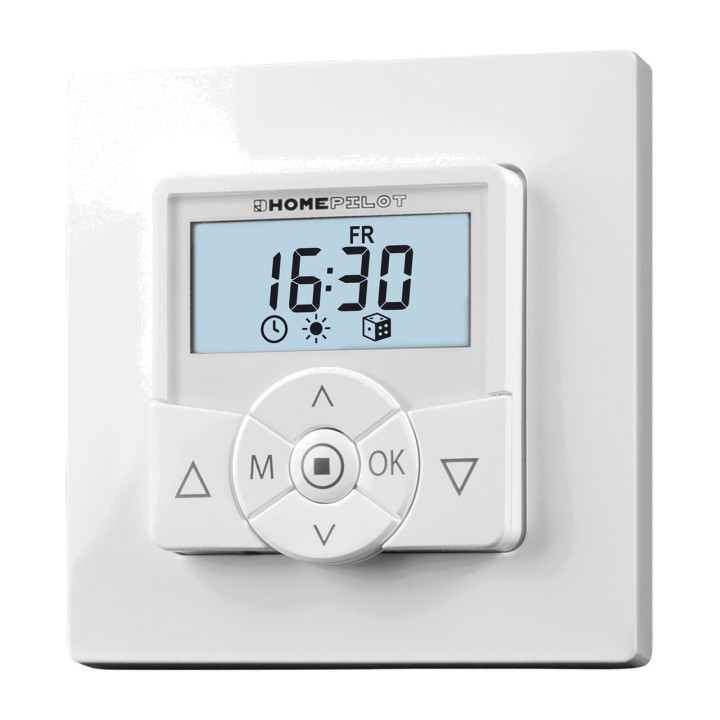

HOMEPILOT Recessed roller shutter timer PREMIUM-10501001 100026412

The HOMEPILOT premium timer is used to connect and control up to three tubular motors for roller shutters, blinds or awnings that can be connected in parallel. It features a modern design with many practical functions. Connected to a tubular motor, this controller is ideal for automating roller shutters and making everyday life easier. The connected roller shutters can also be operated easily at the touch of a button. In addition to its modern design and large display, the premium timer also impresses with many practical automatic functions, such as individually adjustable daily and weekly programmes. This makes it easy to adapt the roller shutter control system to your own preferences and daily habits. The premium timer also has a random function that randomly delays the set switching times when you are away, simulating an occupied home and deterring burglars. With the astronomical function, the premium timer uses the postcode to determine when dusk will fall and controls the roller shutters accordingly. In combination with a sun sensor, it is also possible to control privacy and sun protection according to the brightness. The premium timer can also monitor the torque of motors with mechanical limit adjustment. This allows the controller to switch off the motor in the event of an overload or blockage. The premium timer is supplied in ultra white, including the frame. The integrated installation assistant makes it quick and easy to set up the premium timer. All settings are stored permanently. Data is not lost, even after a prolonged power cut. Thanks to its dimensions of 50 x 50 mm, the timer can be integrated into a standard switch range. It is the perfect solution for retrofitting existing roller shutter motors without radio control.
Type: Timer
Application Field: Interiors
Installation: Flush Mounting
Switch type: Timer
Function switching: Random switching, Automatic changeover between summer and winter time
Number of keys: 7 unit(s)
Devices: Max. 3 controllable devices
Power supply - Switching capacity: Max. 1,800 watts, 8 A
Type of protection: IP30
Protection class: II
Operating temperature: 0 °C to 40 °C
Power reserve in the event of a power failure: 8 hours
Installation depth: 32 mm
Dimensions: Width: 50 mm x Height: 50 mm x Depth: 12 mm
