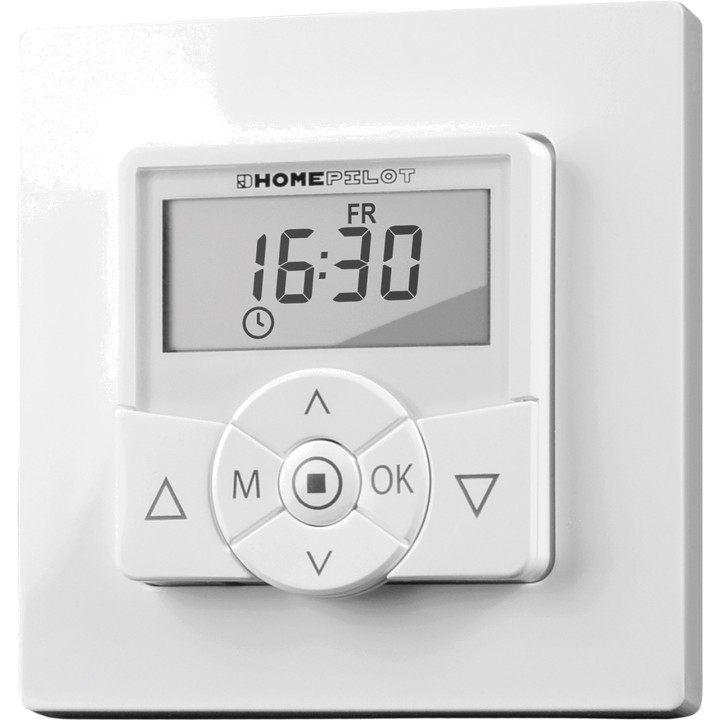

HOMEPILOT Recessed roller shutter timer PREMIUM-LITE 10501002 100026407

The HOMEPILOT premium lite timer is used to connect and control up to three tubular motors that can be connected in parallel for roller shutters, blinds or awnings. It offers a modern design with many practical features. Connected to a tubular motor, this controller is ideal for automating roller shutters and making everyday life easier. The connected roller shutters can also be operated easily at the touch of a button. In addition to its modern design with a large display, the premium lite timer also impresses with many practical automatic functions, such as the individually adjustable daily and weekly programme. This makes it easy to adapt the roller shutter control system to your own preferences and daily habits. The premium lite timer also has a random function that randomly delays the set switching times when you are away, simulating an occupied home and deterring burglars. In combination with a sun sensor, it is also possible to control privacy and sun protection according to the brightness. The premium lite timer is available in ultra white, including the frame, and impresses with its quick and easy installation. All settings are stored permanently. Even after a prolonged power cut, no data is lost. Thanks to its dimensions of 50 x 50 mm, the timer can be integrated into a standard switch range. It is the perfect solution for upgrading existing non-radio roller shutter motors.
Type: Timer
Installation: Flush Mounting
Switch type: Timer
Function switching: Random switching, Manual on/off, Automatic changeover between summer and winter time
Number of keys: 7 unit(s)
Devices: Max. 3 controllable devices
Power supply - switching capacity: Max. 8 A
Type of protection: IP30
Protection class: II
Operating temperature: 0 °C to 40 °C
Power reserve in the event of a power failure: 8 hours
Installation depth: 32 mm
Dimensions: Width: 50 mm x Height: 50 mm x Depth: 12 mm
