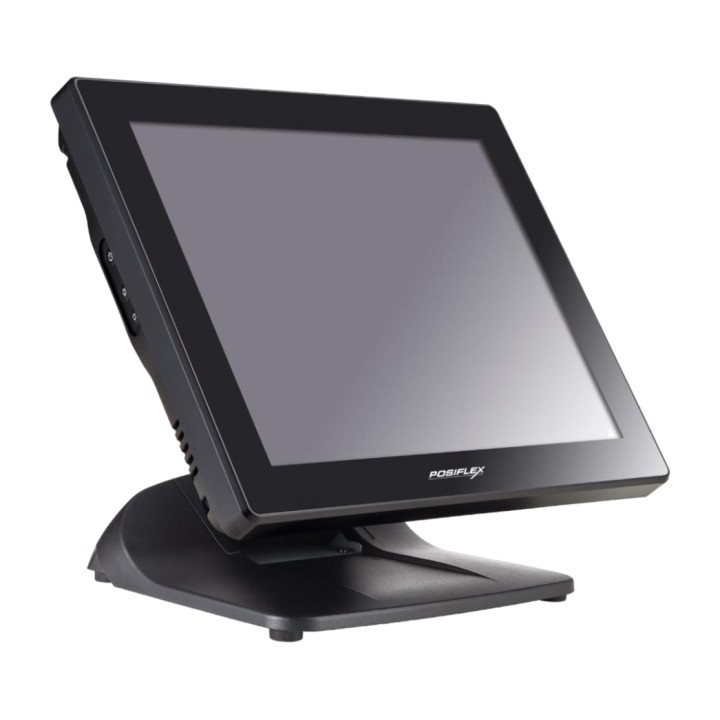

10POS All-in-one fanless touchscreen POS computer PS-3615-G2 15" J6412 8GB SSD-128GB DSP0000043260

Features of the PS-3615 G2 Intel Celeron 15" Flat Capacitive Fanless Touch Terminal J6412
The 15-inch PS-3615 G2 touchscreen terminal is an all-in-one solution designed for commercial environments, points of sale and businesses that need reliable, compact and efficient equipment. It features a quad-core Intel Celeron J6412 processor, 8 GB of DDR4 memory and 128 GB of M.2 SSD storage, providing responsive performance for everyday management and sales applications. Its fanless design, adjustable capacitive screen and numerous connectivity options make it a versatile tool for everyday work.
15-inch capacitive touchscreen
Its 15-inch capacitive touchscreen LCD enables direct, comfortable and precise interaction with applications. The Flat panel provides a suitable surface for frequent operations, while its adjustable tilt from 0° to 180° makes it easy to adapt the terminal's position to different counters and workstations.

15-inch (38.1 cm) TFT LCD screen.
Resolution of 1024 x 768 pixels.
Capacitive touch technology with USB connection.
Flat panel with tilt adjustment from 0° to 180°.
All-in-One design in black.

Intel Celeron J6412 quad-core processor
Equipped with the Intel Celeron J6412 Quad Core processor, this terminal provides processing power for point-of-sale, invoicing, inventory control and business management applications. Its frequency of up to 2.6 GHz and low-power architecture help maintain efficient operation throughout the working day.

MAKER: Intel.
Family: Intel Celeron.
MODEL: J6412.
Quad-core processor.
Processor frequency: up to 2.6 GHz.
Cache memory L2: 1,5 MB.
Shared graphics memory with up to 224 MB of RAM, according to the equipment description.

8 GB DDR4 memory and storage SSD M.2
The terminal features 8 GB of DDR4-SDRAM to handle everyday business tasks and a 128 GB M.2 SSD for quick access to programs and files. It also supports a maximum RAM capacity of 16 GB, offering upgrade options to suit the needs of the business.

Installed RAM : 8 GB DDR4-SDRAM.
Maximum memory capacity : 16 GB.
Number of memory slots: 1.
Memory form factor: SO-DIMM.
Storage: SSD of 128 GB.
SSD drive form factor: M.2.
Number of compatible storage drives: 1.

Fanless design for silent operation
The fanless design of the PS-3615 G2 eliminates the need for active fan cooling, reducing operating noise and the presence of mechanical components susceptible to wear. Its patented design and internal architecture with processor-independent controllers are intended to provide stability and efficiency in commercial environments with frequent use.

Fanless passive cooling system.
Quiet operation.
Design focused on low energy consumption.
Fewer moving components.
Black All-in-One chassis.
Processor-independent device controllers.

Comprehensive connectivity for commercial peripherals
Thanks to its multiple USB connections, RS-232 serial ports, Gigabit Ethernet and VGA output, this terminal can integrate various devices used at points of sale. Its configuration makes it easy to connect receipt printers, cash drawers and other compatible peripherals, while WiFi and Bluetooth connections expand communication options.

5 USB ports in total, including 2 USB 3.2 Gen 1 (USB 3.0) Type-A ports.
1 Ethernet port LAN RJ-45.
Ethernet speeds: 10/100/1000 Mbit/s.
4 RS-232 serial ports with DB9 connector and power supply option +5 V.
1 VGA (D-Sub) output for an external display.
1 cash drawer port (CR).
WiFi wireless connectivity.
Bluetooth connectivity.

Windows 11 IoT Enterprise LTSC and security TPM 2.0
The device includes 64-bit Windows 11 IoT Enterprise LTSC, an operating system designed for professional devices and specialised-use environments. It also incorporates Trusted Platform Module (TPM) 2.0, which provides hardware-based security features to help protect system credentials and information.

Installed operating system: Windows 11 IoT Enterprise LTSC.
Operating system architecture: 64-bit.
Integrated Trusted Platform Module (TPM).
TPM version: 2.0.

Compact design and expansion options
Its All-in-One format integrates the display and main hardware into a single device, making it easier to organise the workspace. The terminal also offers expansion options with commercial peripherals, such as customer displays, magnetic stripe readers, fingerprint readers, keyboards, drawers and printers, allowing the point of sale to be adapted to different activities.

Width: 372 mm.
Height: 320 mm.
Depth: 252.7 mm.
Weight: 5.86 kg.
COLOR: negro.
Optional peripherals: customer display, magnetic stripe reader, fingerprint reader, keyboards, cash drawers and printers.

Operating conditions and certifications
The PS-3615 G2 features environmental specifications that indicate the suitable operating and storage ranges for the device. It also has CE and RoHS conformity certifications, relating to applicable European requirements and restrictions on certain hazardous substances in electronic equipment.

Operating temperature: from 0 to 50 °C.
Storage temperature: from -20 to 70 °C.
Operating relative humidity: 20 to 90 %.
Storage relative humidity: 10 to 90 %.
Conformity certificates: CE and RoHS.
Package contents: 1 unit.
Volume (m ³): 0.0368
