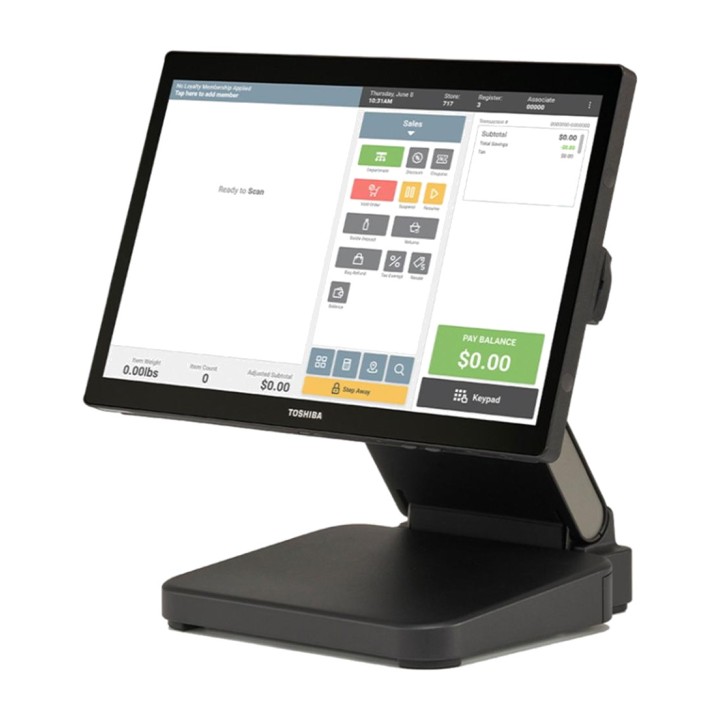

TOSHIBA 15-inch all-in-one touchscreen POS terminal with Windows 10 IoT TCX810 6201-E53 I3-1115G4E 8GB 128GB-SSD DSP0000042331

Toshiba POS terminal features TCX810 6201-E53
The Toshiba TCX810 is a 15-inch all-in-one POS terminal designed for commercial environments that need a compact, touchscreen device ready for everyday use. It features an 11th-generation Intel® Core™ i3 processor, 8 GB of DDR4 memory and NVMe SSD storage, combining the system’s main components in a black chassis.
15-inch capacitive touchscreen
Its 38.1 cm (15-inch) touchscreen LCD uses projected capacitive technology, allowing direct interaction with the POS terminal’s applications and functions. Its all-in-one design helps keep the workstation organised and makes it easy to integrate into counters and points of sale.

Screen diagonal: 38.1 cm (15 inches)
Display type: LCD
Touchscreen: Yes
Touch technology: projected capacitive system
Chassis type: Todo-en-Uno
COLOUR: BLACK

11th-generation Intel® Core™ i3 processor
The device features an Intel® Core™ i3-1115G4E with 2 cores and 4 threads, a base frequency of 2.2 GHz and a turbo frequency of up to 3.9 GHz. Its 6 MB cache complements a configuration designed to run applications typically used on a point-of-sale terminal.

Processor: Intel® Core™ i 3-1115G4E
Generation: 11th-generation Intel® Core™ i3
cores : 2
Threads : 4
Base frequency: 2.2 GHz
Turbo frequency: up to 3.9 GHz
Air Filter : 6 MB
System bus transfer rate: 4 GT/s
Graphics: Intel

Expandable 8 GB DDR4 memory
The Toshiba TCX810 has 8 GB of DDR4-SDRAM memory at 3200 MHz, providing capacity to run the operating system and the business’s usual applications. It supports up to 16 GB of internal memory to facilitate a future upgrade.

Installed memory : 8 GB
Type: DDR4-SDRAM
Speed: 3200 MHz
Slot type: SO-DIMM
Maximum supported memory : 16 GB

M.2 NVMe SSD storage
The system uses a 128 GB M.2 SSD with a PCI Express interface and NVMe technology. This type of storage has no moving parts, unlike traditional hard drives, and provides suitable storage for the operating system, applications and work files.

Total capacity : 128 GB
Storage type: SSD
SSD form factor: M.2
Interface: PCI Express
NVMe technology: yes

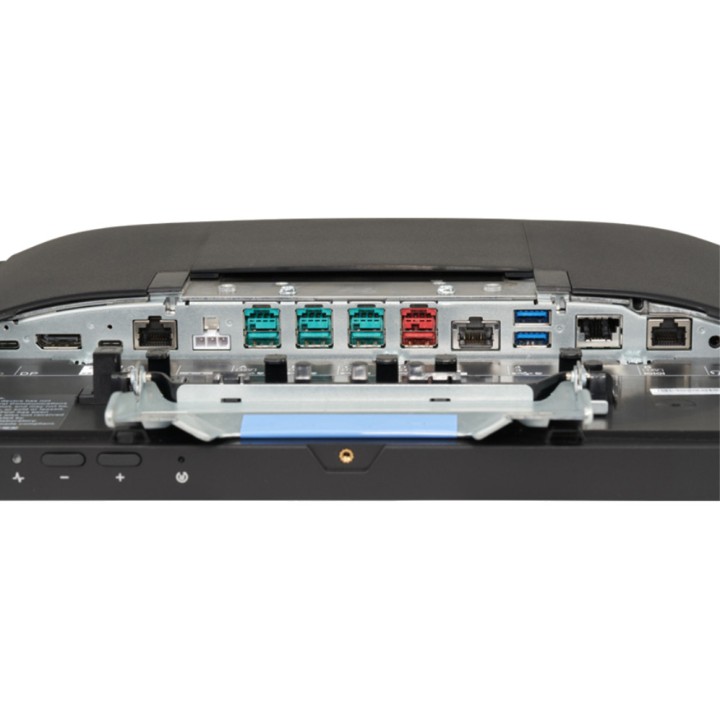

Extensive connectivity for peripherals and network
To facilitate integration into a point of sale, the TCX810 provides multiple USB, Ethernet, DisplayPort and RJ-12 connections. It includes five USB-A 3.2 Gen 1 ports and two USB-C 3.2 Gen 1 ports, as well as powered USB for compatible devices.

5 USB-A 3.2 Gen 1 ports
2 USB-C 3.2 Gen 1 ports
USB powered: yes
3 Ethernet ports LAN RJ-45
1 port RJ-12
1 DisplayPort
Line output: Yes

Gigabit Ethernet and Wi-Fi 6E
Network options include Gigabit Ethernet and Wi-Fi 6E connectivity, offering both wired and wireless alternatives for connecting the terminal to the infrastructure available at the establishment.

Ethernet: Yes
Ethernet speed: 10/100/1000 Mbit/s
Wi-Fi: yes
Wireless standard: Wi-Fi 6E (802.11ax)

Windows 10 IoT Enterprise and security TPM 2.0
The terminal comes with Windows 10 IoT Enterprise installed as its operating system. It also features a TPM 2.0 trusted platform module, a feature designed to provide hardware-based security functions.

Operating system: Windows 10 IoT Enterprise
TPM module: yes
TPM version: 2.0

All-in-One design and integrated speakers
Its All-in-One format integrates the display and main components into a single solution. The device also features built-in speakers and uses a 180 W power supply.

Built-in speakers: Yes
Power supply : 180 W
Device weight: 4 kg
Weight with stand: 7.12 kg

Dimensions and other specifications
The TCX810 features compact dimensions suited to its All-in-One configuration, while the stand increases the overall depth and height to provide the complete terminal setup on the workstation.

Dimensions without stand: 358.6 x 46.5 x 285.6 mm
Dimensions with stand: 358.6 x 236 x 376.2 mm
Weight without stand: 4 kg
Weight with stand: 7.12 kg
Quantity per pack: 1 piece
Volume (m ³): 0.0592
