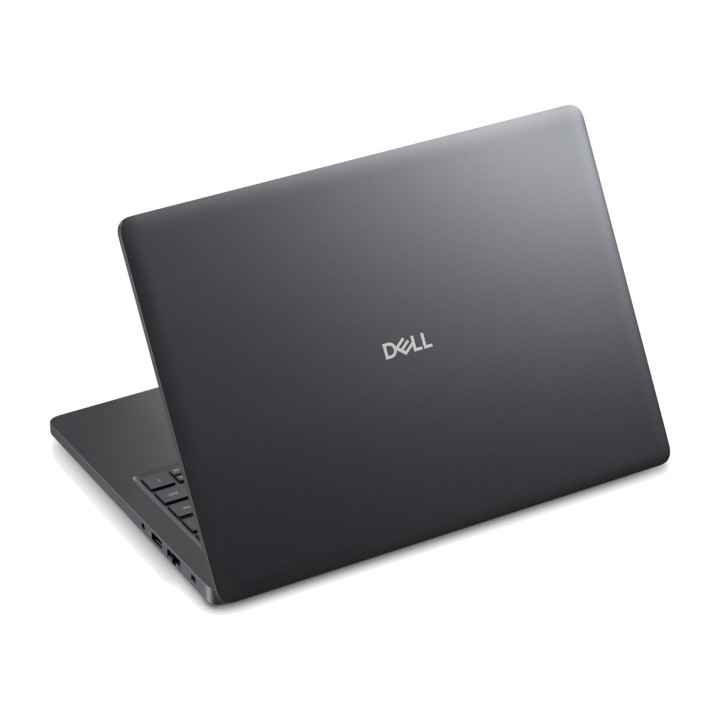

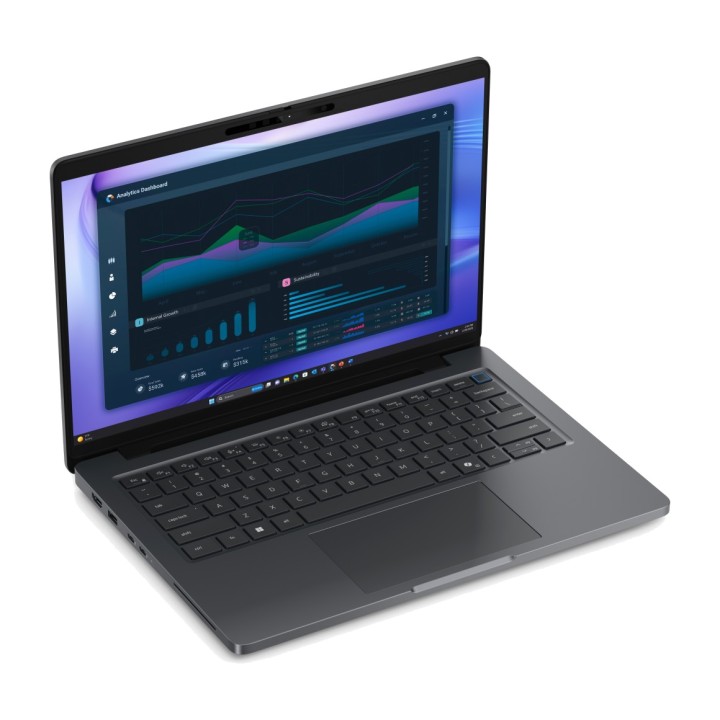

DELL 14-inch mobile workstation PRO-PRECISION-5 CORE-ULTRA-7 366H 32GB 1TB-SSD RTX-PRO500-6GB FHD+ W11P DSP0000041734

Dell Pro Precision features 5 14 PW514261
The Dell Pro Precision 5 14 PW514261 is a 14-inch mobile workstation designed for professionals who need advanced performance in a compact form factor. It combines a 16-core Intel Core Ultra 7 366H processor, 32 GB of LPDDR5x memory, a 1 TB NVMe SSD and NVIDIA RTX PRO 500 Blackwell professional graphics. It also features an Intel AI Boost NPU, Wi-Fi 7 connectivity, Thunderbolt 4 and Windows 11 Pro.
Intel Core Ultra 7 with AI processing
The Intel Core Ultra 7 366H features a 16-core, 16-thread architecture, combining performance, efficiency and low-power efficiency cores. It can reach up to 4.8 GHz and integrates Intel AI Boost, an NPU capable of delivering up to 50 TOPS to accelerate compatible artificial intelligence workloads.

16-core, 16-thread Intel Core Ultra 7 366H
4 performance cores, 8 efficiency cores and 4 low-power efficiency cores
Turbo frequency of up to 4.8 GHz
Base frequencies: 2 GHz for performance cores, 1.6 GHz for efficiency cores and 1600 MHz for low-power efficiency cores
Turbo up to 3.6 GHz on efficiency cores and 3.4 GHz on low-power efficiency cores
18 MB Intel Smart Cache and maximum turbo power of 80 W
FCBGA2540 socket and Intel SoC chipset
Intel AI Boost NPU up to 50 TOPS and maximum GPU performance of 40 TOPS
Compatible with OpenVINO, Windows ML, ONNX RT and WebNN
Support for Windows Studio effects and background blur
Copilot+ PC

NVIDIA RTX PRO 500 Blackwell professional graphics
The dedicated NVIDIA RTX PRO 500 Blackwell GPU features 6 GB of GDDR7 memory and ray tracing acceleration, providing dedicated graphics resources for professional applications and demanding visual workloads. The system also has integrated Intel Graphics for handling compatible graphics tasks.

Dedicated NVIDIA RTX PRO 500 Blackwell
6 GB of graphics memory GDDR7
Ray tracing acceleration
Integrated Intel Graphics

32 GB LPDDR5x and NVMe SSD storage 1 TB
Its 32 GB of LPDDR5x-SDRAM memory reach a transfer speed of 8533 MT/s and provide the capacity to work with professional applications and multitask. For storage, it features a 1 TB M.2 NVMe SSD with SED self-encryption.

32 GB of memory LPDDR5x-SDRAM
Memory form factor LPCAMM2
Transfer speed of 8533 MT/s
Maximum memory : 32 GB
M.2 NVMe SSD of 1 TB
Self-encrypting SED SSD
No optical drive

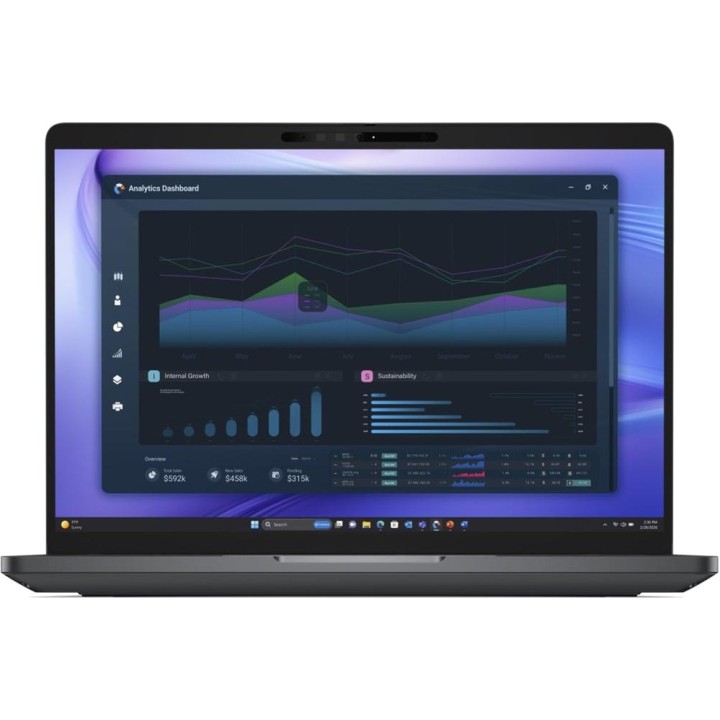

14-inch WUXGA display in 16:10
The 14-inch WUXGA display offers a resolution of 1920 x 1200 pixels and a 16:10 aspect ratio, providing more vertical space than a conventional 16:9 panel. Its anti-glare finish and 400 cd/m² brightness make viewing comfortable while working.

Diagonal: 35.6 cm (14 inches)
WUXGA resolution of 1920 x 1200 pixels
WVA panel with aspect ratio 16:10
Anti-glare, non-touch display
Brightness: 400 cd/m²
Pixel density: 162 ppi
Color gamut: 45%
Maximum refresh rate: 60 Hz
Typical contrast: 800:1

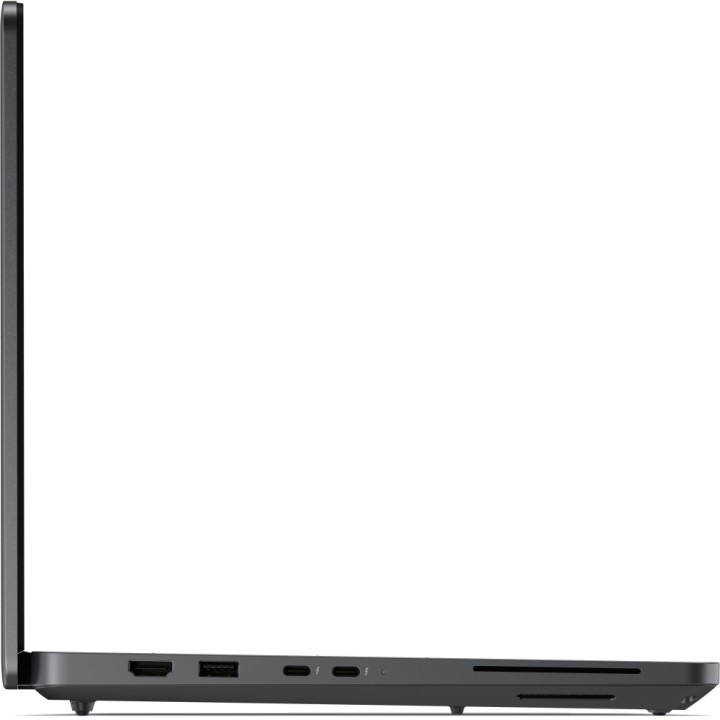

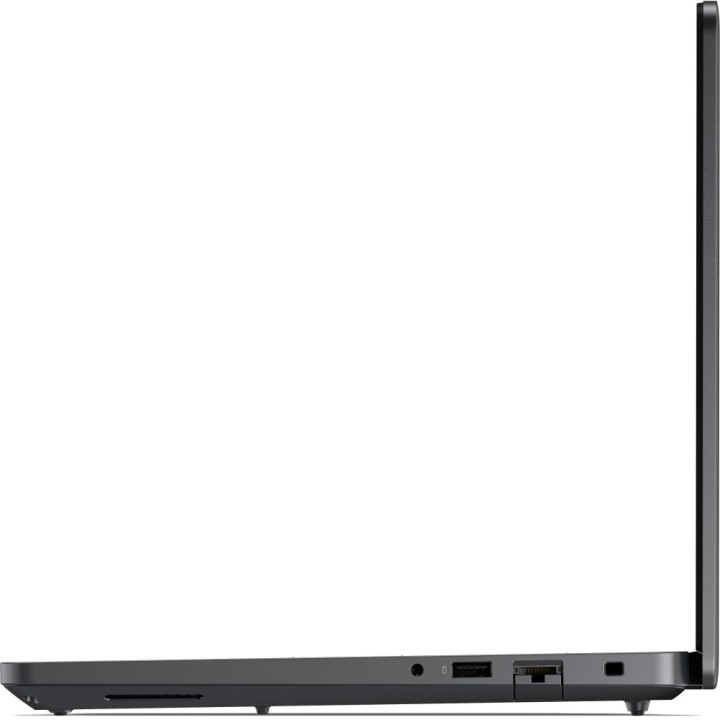

Wi-Fi 7, Ethernet and Thunderbolt 4
The Dell Pro Precision 5 14 features tri-band Wi-Fi 7 and Bluetooth, as well as Gigabit Ethernet for wired professional environments. Its two Thunderbolt 4 ports, HDMI 2.1 and USB Type-A expand the options for connecting displays, storage and other peripherals.

Tri-band Wi-Fi 7 (802.11be) at 2.4 GHz, 5 GHz and 6 GHz
2x2 antenna and Intel WLAN controller
Bluetooth
Ethernet 10/100/1000 Mbit/s with port RJ-45
2 Thunderbolt 4 ports
2 USB Type-A 3.2 Gen 1 ports
1 port HDMI 2.1
USB Type-C with DisplayPort Alternate Mode
PowerShare USB
Combined headphone and microphone jack
No mobile network connection

Quad HD camera and integrated audio
For video calls and remote collaboration, it features an 8.29 MP Quad HD front camera capable of capturing video at 30 fps, as well as an infrared camera. The system is rounded out with Realtek audio, two speakers and a dual-microphone setup.

Quad HD front camera with 8,29 MP
Video capture at 30 fps
IR infrared camera
Realtek sound chip ALC3333
2 built-in speakers of 5 W
2 microphones
HDR Camera, TNR and Presence Detection

Professional features and security
This model features 64-bit Windows 11 Pro and compatibility with the Intel vPro platform, along with features designed for managing and protecting professional equipment. It includes TPM 2.0, a smart card reader, a security cable slot and Control Vault 3+.

64-bit Windows 11 Pro
Intel vPro compatible
Trusted Platform Module TPM 2.0
Smart card reader
Breach-type security cable slot
Control Vault 3+
30-day Microsoft 365 trial

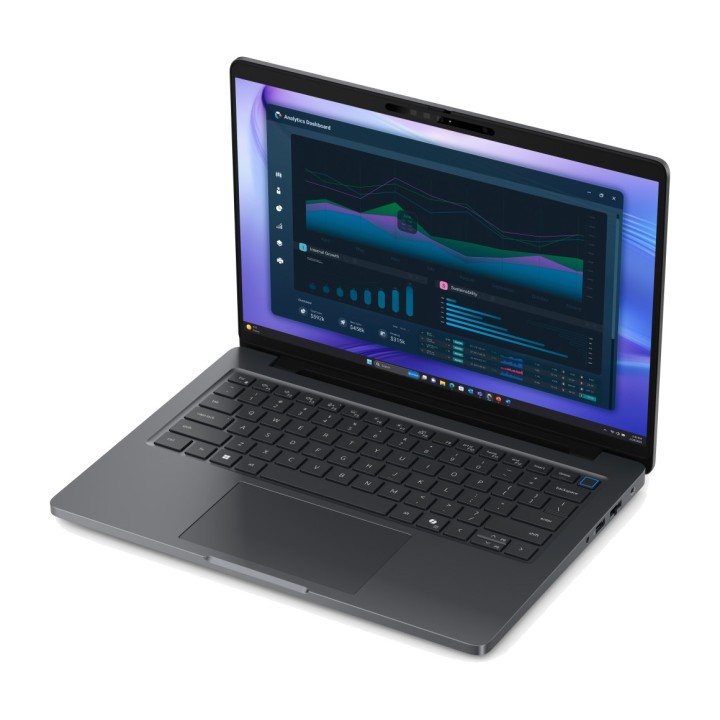

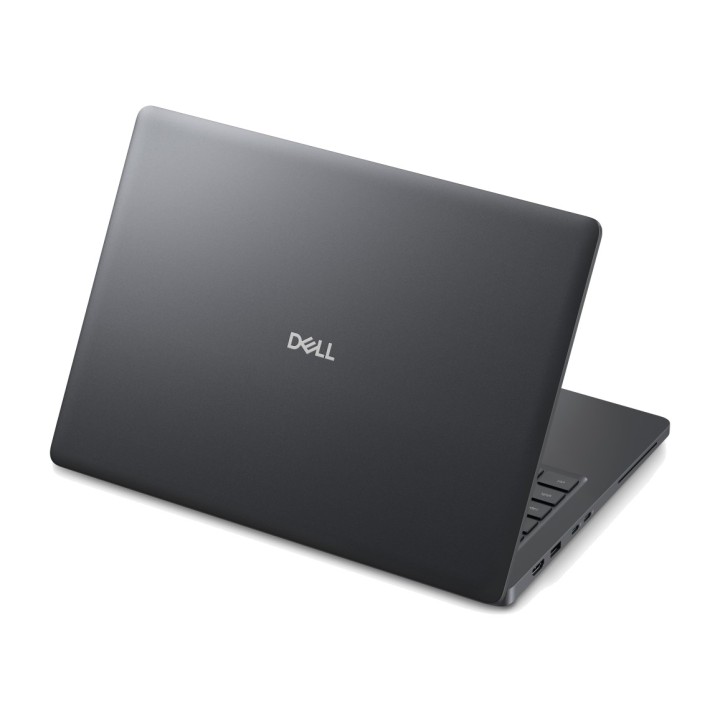

Backlit keyboard and professional design
Its clamshell-style mobile workstation form factor keeps dimensions compact for professional use in different locations. It features a touchpad, a backlit keyboard and a dedicated Copilot key.

Black finish
Backlit keyboard
Copilot key
Touchpad pointing device
Weight: 1,81 kg
Width: 313 mm
Depth: 227,3 mm
Front height: 1,4 cm
Rear height: 1,83 cm

Fast-charging battery
The 4-cell lithium-polymer battery supports fast charging and is compatible with Express Charge Boost. The device requires a maximum charging power of 100 W and supports USB power delivery at different voltage levels.

4-cell lithium-polymer battery
Battery voltage : 15,6 V
Recharge time: 3 hours
Fast charging and Express Charge Boost
Battery weight: 270 g
Required charging power: up to 100 W
AC adapter frequency: 50/60 Hz
Adapter input AC: 100-240 V
USB charging voltages: 5, 9, 15 and 20 V
Charging current USB: 3.25 A
AC power adapter not included

Other specifications
The Dell Pro Precision 5 14 is designed to operate within various ambient ranges and is ENERGY STAR and EPEAT Gold certified. Its specifications also include resistance values for vibration and shock during operation and storage.

Operating temperature : 0-35 °C
Storage temperature : -40-65 °C
Relative humidity during operation: 10-90%
Relative humidity during storage: 0-95%
Operating altitude: -15.2-3048 m
Non-operating altitude: -15.2-10668 m
Operating shock resistance : 110 G
Non-operating shock resistance : 160 G
Operating vibration : 0,66 G
Non-operating vibration : 1,3 G
ENERGY STAR and EPEAT Gold certifications
Volume (m ³): 0.0244
