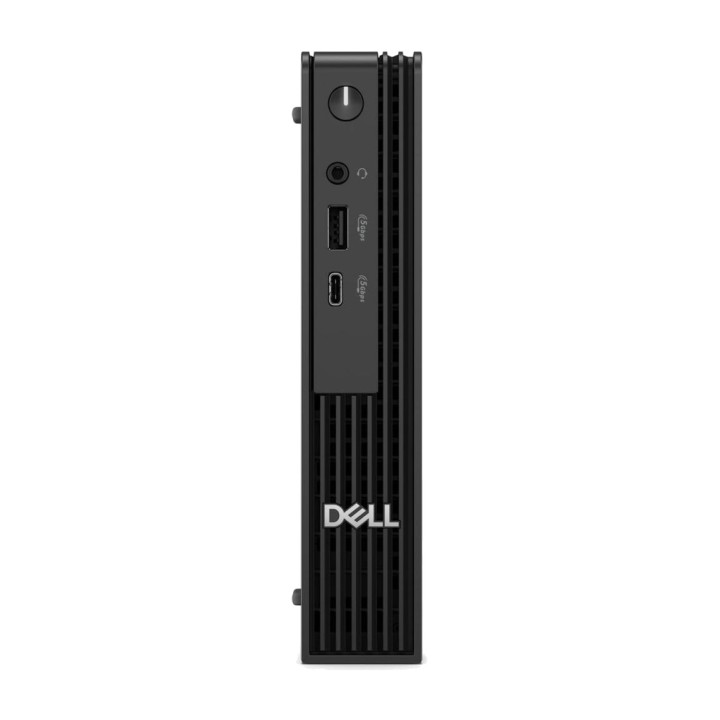

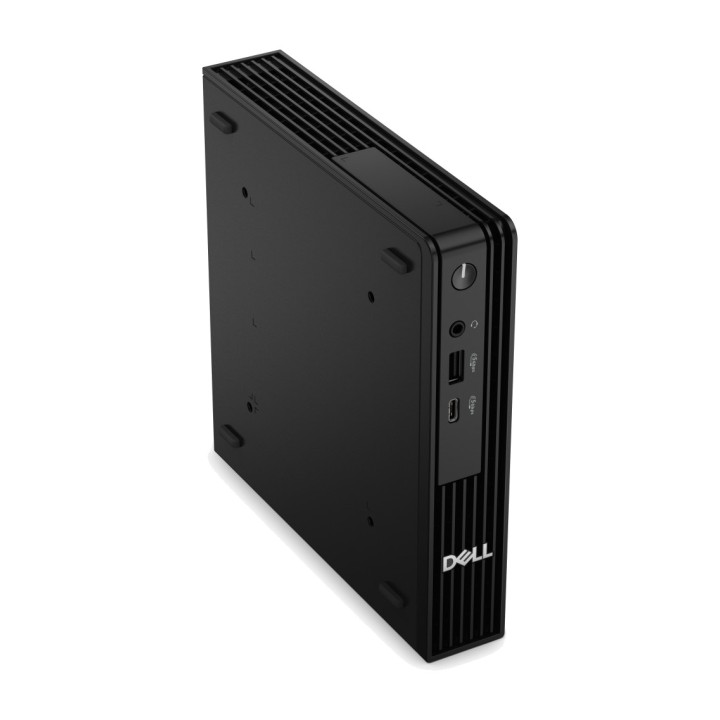

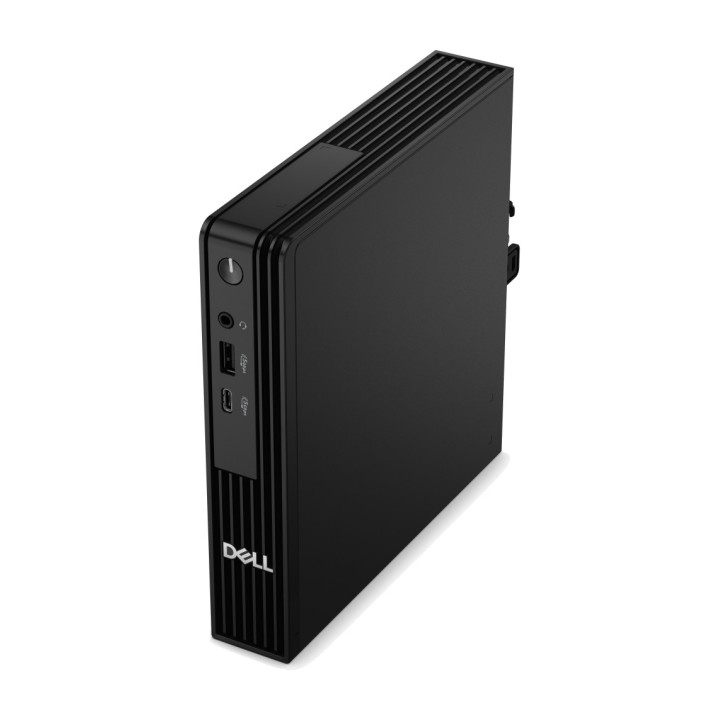

DELL Professional Mini PC PRO-ESSENTIAL MICRO-PVM1265 RYZEN-5-230 16GB 512GB-SSD W11P DSP0000041732

Dell Pro Essential features PVM1265
The Dell Pro Essential PVM1265 is an MFF-format Mini PC designed for professional environments, offices and workstations where performance and a compact size need to be combined. It features an AMD Ryzen™ 5 230 processor with 6 cores and 12 threads, 16 GB of DDR5 memory and a 512 GB NVMe SSD, as well as AMD Radeon 760M graphics and Wi-Fi 6 connectivity. It comes with 64-bit Windows 11 Pro.
AMD Ryzen™ 5 processor with 6 cores and 12 threads
The AMD Ryzen™ 5 230 processor from the Ryzen 200 series provides a balanced foundation for working with professional applications, browsing, office tools and simultaneous tasks. It has a base frequency of 3.5 GHz and can reach up to 4.9 GHz in turbo mode, with 6 MB of L2 cache and 16 MB of L3 cache.

AMD Ryzen processor ™ 5 230
6 cores and 12 threads
3.5 GHz base frequency
Turbo frequency of up to 4.9 GHz
6 MB of L2 cache and 16 MB of cache L3
1 processor installed
AMD SoC chipset

AMD Ryzen AI with integrated NPU
The system features an AMD Ryzen AI neural processing unit, designed to accelerate certain AI-related workloads. The processor delivers total performance of up to 31 TOPs, while the NPU core reaches up to 16 TOPs.

AMD Ryzen AI NPU
Total processor performance of up to 31 TOPs
NPU core performance up to 16 TOPs
Maximum GPU performance of 16 TOPs

Expandable 16 GB DDR5 memory
Its 16 GB of DDR5-SDRAM provide smooth performance in multitasking scenarios. The memory is configured as a 16 GB module, and the system has 2 SO-DIMM slots and supports up to 64 GB, allowing room for future upgrades.

16 GB of memory DDR5-SDRAM
Memory configuration : 1 x 16 GB
2 SO-DIMM slots
Maximum capacity of 64 GB
Memory transfer rate of 5600 MT/s

NVMe SSD of 512 GB
Storage is based on a 512 GB M.2 NVMe SSD, a suitable solution for fast response times in the operating system, applications and file access. The Dell Pro Essential PVM1265 includes an installed 512 GB SSD and has no optical drive.

Total storage capacity : 512 GB
SSD 512 GB
NVMe interface
Form factor M.2
1 SSD installed
No optical drive

Integrated AMD Radeon graphics 760M
The integrated AMD Radeon 760M graphics handle visual tasks without the need for a dedicated graphics card. This configuration keeps the system compact while providing graphics capabilities for typical visual tasks in a professional environment.

Integrated AMD Radeon graphics
AMD Radeon GPU 760M
Integrated GPU manufacturer: AMD
No discrete graphics adapter

Wi-Fi 6, Gigabit Ethernet and Bluetooth
To facilitate integration into both wired and wireless workstations, this Mini PC features Wi-Fi 6, Gigabit Ethernet and Bluetooth. Its MediaTek MT7920 WLAN controller uses an internal 2x2 antenna configuration and supports MU-MIMO technology.

Wi-Fi 6 (802.11ax)
MediaTek WLAN controller MT7920
Internal antenna 2x2
MU-MIMO
Bluetooth
10/100/1000 Mbit/s Ethernet
10/100/1000Base-T(X) technology

Connectivity ready for peripherals and displays

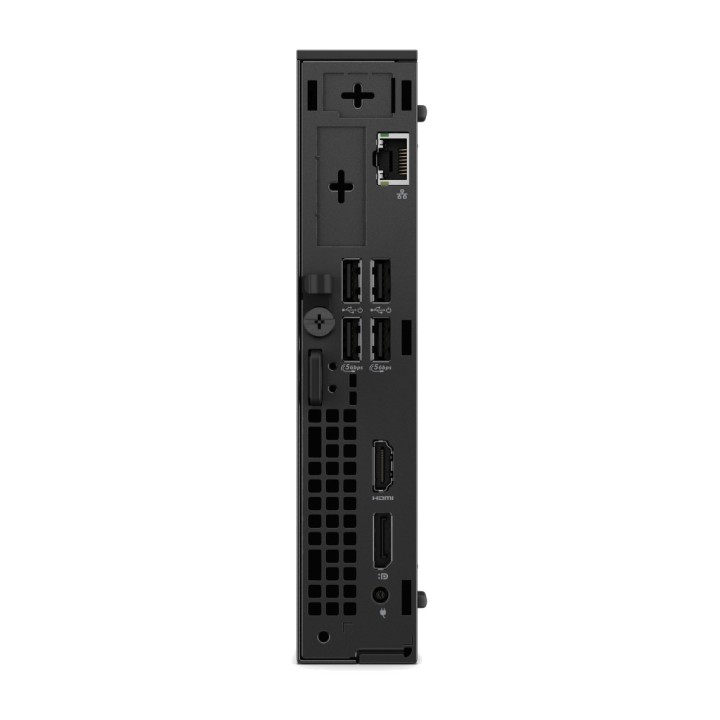

The Dell Pro Essential PVM1265 offers a selection of USB, HDMI, DisplayPort and RJ-45 connections for connecting peripherals, wired networks and monitors. Its connections include one USB-C 3.2 Gen 1 port, three USB-A 3.2 Gen 1 ports, and HDMI 2.1 and DisplayPort 1.4a outputs.

2 ports USB 2.0
3 USB-A 3.2 Gen 1 ports
1 USB-C 3.2 Gen 1 port
1 HDMI 2.1
1 DisplayPort 1.4a
1 Ethernet port RJ-45
Combined headphone and microphone jack
DC power input
4.5 mm cylindrical connector for AC adapter
No USB 3.2 Gen 2 or Thunderbolt 3 ports

Compact and lightweight Micro form factor
Its MFF chassis allows the computer to be installed in workspaces where a conventional desktop computer would take up too much room. Measuring 36 x 178 x 182 mm and weighing just 1.3 kg, it is especially compact for desks and professional workstations with limited space.

Product type: Mini PC
MFF chassis
COLOR BLACK
Width: 36 mm
Depth: 178 mm
Height: 182 mm
Weight: 1.3kg
Kensington security slot

Windows 11 Pro and security TPM 2.0
The system comes with 64-bit Windows 11 Pro, designed for professional and business use. It also integrates Trusted Platform Module (TPM) 2.0, complementing the security features available in the system.

Windows 11 Pro
64-bit architecture
TPM 2.0
1-year trial of McAfee® Business Protection
30-day Microsoft 365 trial

Audio and power
For audio, the system features a Realtek ALC3204 chip with high-definition audio. Its power system supports a wide input voltage range, making it easy to use in compatible installations.

Realtek sound chip ALC3204
High-definition audio
Input voltage : 100 - 240 V
Input frequency: 50 - 60 Hz

Other specifications
The Dell Pro Essential PVM1265 is specified to operate within various environmental ranges, with operating temperatures of 0 to 35 °C and defined conditions for humidity, altitude, vibration and shock resistance.

Operating temperature : 0 - 35 °C
Storage temperature : -40 - 65 °C
Relative humidity during operation : 10 - 90%
Relative humidity during storage : 0 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating vibration : 0,66 G
Non-operating vibration : 1,3 G
Operating shock resistance : 110 G
Non-operating shock resistance : 160 G
Volume (m ³): 0.0615
