DELL Professional Mini PC PRO-ESSENTIAL MICRO-PVM1265 RYZEN-5-230 8GB 256GB-SSD W11P DSP0000041726

Features of the Dell Pro Essential Micro PVM1265
The Dell Pro Essential Micro PVM1265 is a compact Mini PC designed for professional environments, offices and workstations where a good balance between performance and space efficiency is desired. It features an AMD Ryzen™ 5 230 processor with 6 cores and 12 threads, 8 GB of DDR5 memory and a 256 GB NVMe SSD, as well as Windows 11 Pro and comprehensive connectivity options.
AMD Ryzen™ 5 230 with 6 cores and 12 threads
Its AMD Ryzen™ 5 230 from the Ryzen 200 series provides the capacity to handle office applications, browsing, communications and various simultaneous tasks. It operates at a base frequency of 3,5 GHz and can reach up to 4,9 GHz in turbo mode, complemented by 6 MB of L2 cache and 16 MB of L3 cache.

Processor: AMD Ryzen ™ 5 230
Generation: AMD Ryzen 200 Series
6 cores and 12 threads
Base frequency: 3,5 GHz
Turbo frequency: up to 4,9 GHz
Air Filter L2: 6 MB
Air Filter L3: 16 MB
Chipset: AMD SoC

AI processing with AMD Ryzen AI
The system integrates an AMD Ryzen AI NPU, a unit dedicated to processing artificial intelligence workloads. The processor delivers total performance of up to 31 TOPs, with up to 16 TOPs from the NPU core and maximum GPU performance of 16 TOPs.

NPU: AMD Ryzen AI
Total processor performance: up to 31 TOPs
NPU core performance: up to 16 TOPs
Maximum GPU performance: 16 TOPs

Expandable DDR5 memory up to 64 GB
Its 8 GB of DDR5 memory at 5600 MT/s enable smooth performance for everyday tasks. The installed configuration uses one 8 GB module, and the system has two SO-DIMM slots, supporting a maximum capacity of 64 GB to facilitate future upgrades.

Installed memory : 8 GB DDR5-SDRAM
SETTING : 1 x 8 GB
Transfer rate: 5600 MT/s
2 SO-DIMM slots
Maximum capacity : 64 GB

NVMe SSD of 256 GB
Storage is provided by a 256 GB M.2 NVMe SSD, offering solid-state storage suitable for speeding up Windows startup, application launches and access to frequently used files.

Total capacity : 256 GB
Storage: SSD
NVMe interface
SSD form factor: M.2
1 SSD installed
No optical drive

Integrated AMD Radeon graphics 760M
The integrated AMD Radeon 760M graphics handle visuals without the need for a dedicated graphics card. The system also has HDMI and DisplayPort outputs, offering flexibility for connecting monitors and adapting it to different desktop configurations.

Integrated GPU: AMD Radeon 760M
Graphics family: AMD Radeon
1 x HDMI 2.1
1 x DisplayPort 1.4a
No dedicated graphics card

Wi-Fi 6, Gigabit Ethernet and Bluetooth
The Dell Pro Essential Micro offers Wi-Fi 6 and Gigabit Ethernet connectivity, allowing you to use wireless or wired connections according to the needs of the workplace. It also features Bluetooth, MU-MIMO technology and a MediaTek MT7920 WLAN controller with a 2x2 antenna configuration.

Wi-Fi 6 (802.11ax)
MediaTek WLAN controller MT7920
Internal antenna 2x2
MU-MIMO
Bluetooth
10/100/1000 Mbit/s Ethernet
10/100/1000Base-T(X) cabling

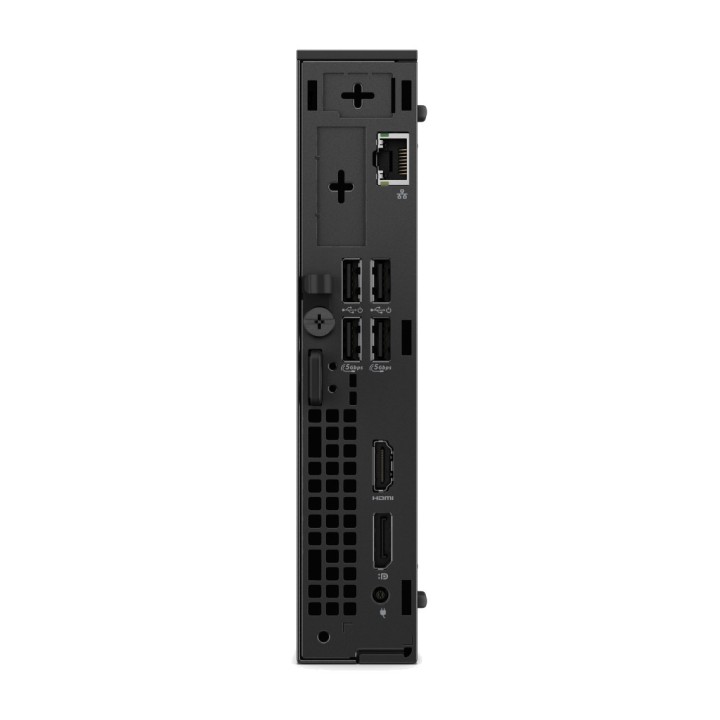

Wide range of ports
Despite its compact form factor, it features USB-A and USB-C, HDMI, DisplayPort and RJ-45 connections, making it easy to connect peripherals, external storage, displays and wired networks. It also has a combined headphone and microphone jack.

2 x USB 2.0
3 x USB-A 3.2 Gen 1
1 x USB-C 3.2 Gen 1
1 x DisplayPort 1.4a
1 x HDMI 2.1
1 x Ethernet RJ-45
Combined headphone and microphone jack
DC power input
4.5 mm barrel connector for AC adapter
No Thunderbolt 3 or USB 3.2 Gen 2

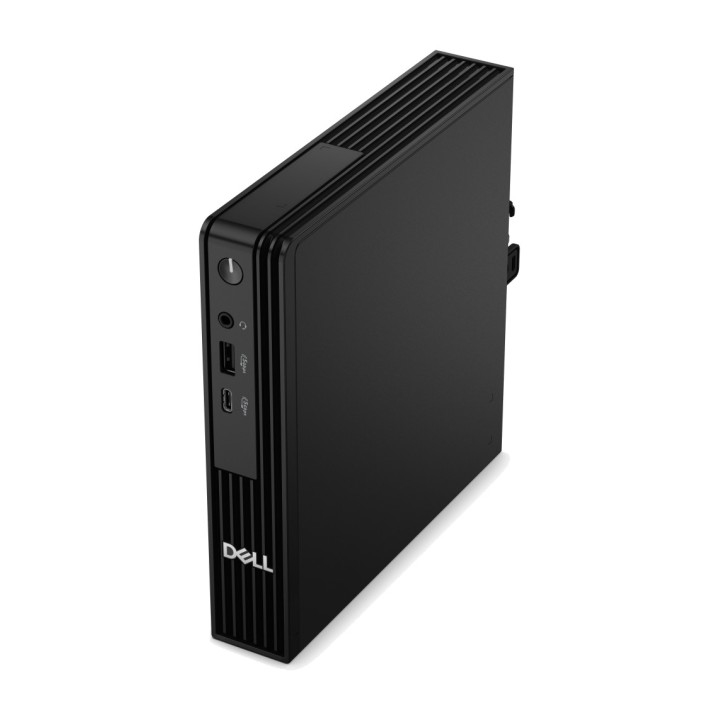

Compact Micro form factor to save space
Its MFF (Micro Form Factor) chassis measures just 36 x 178 x 182 mm and weighs 1.3 kg, making it especially practical for desks with limited space. The black finish maintains a discreet, professional appearance, while the Kensington slot allows you to attach a compatible security cable.

Product type: Mini PC
Chassis: MFF
COLOUR: BLACK
Width: 36 mm
Depth: 178 mm
Height: 182 mm
Weight: 1.3kg
Kensington security slot

Windows 11 Pro and security TPM 2.0
The system comes with 64-bit Windows 11 Pro, an edition designed for professional and business use. It also integrates Trusted Platform Module TPM 2.0 as part of its security features.

Operating system: Windows 11 Pro
Architecture: 64-bit
Trusted Platform Module : TPM 2.0
McAfee® Business Protection: 1-year trial
Microsoft 365: 30-day trial for activation

High-definition audio
For audio functions, it features the Realtek ALC3204 chip and a high-definition audio system, complementing its capabilities for communications and multimedia playback.

Sound chip: Realtek ALC3204
Audio system: high definition

Other specifications
The Dell Pro Essential Micro is designed to operate under different environmental conditions and supports a power input of 100 to 240 V and 50-60 Hz.

Input voltage : 100-240 V
Input frequency: 50-60 Hz
Operating temperature : 0-35 °C
Storage temperature : -40-65 °C
Relative humidity during operation: 10-90%
Relative humidity during storage: 0-95%
Operating altitude: -15.2-3048 m
Non-operating altitude: -15.2-10668 m
Operating vibration : 0,66 G
Non-operating vibration : 1,3 G
Operating shock : 110 G
Non-operating shocks : 160 G
Volume (m ³): 0.0615
