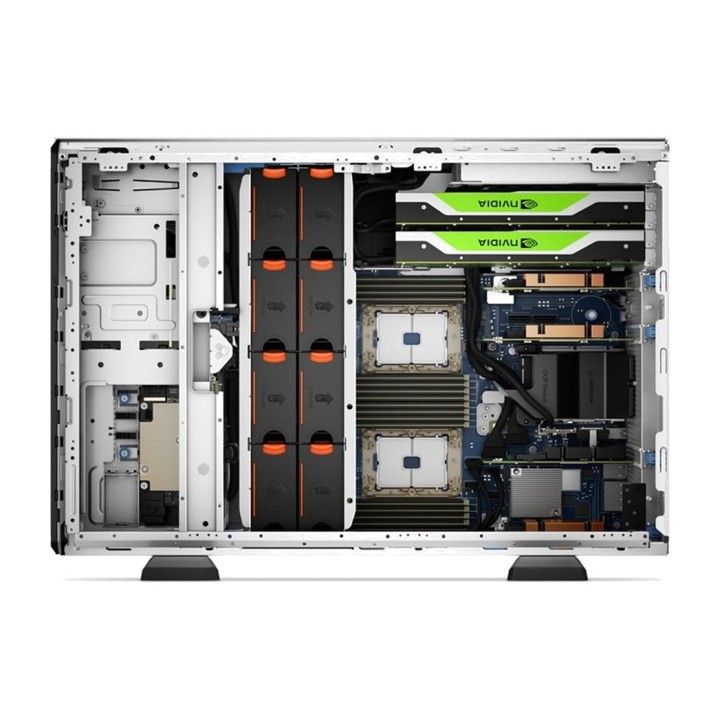

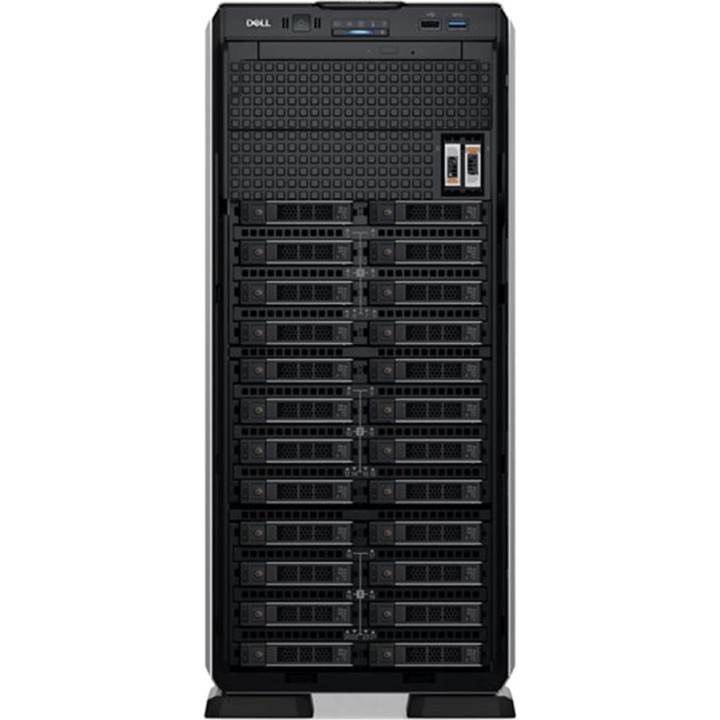

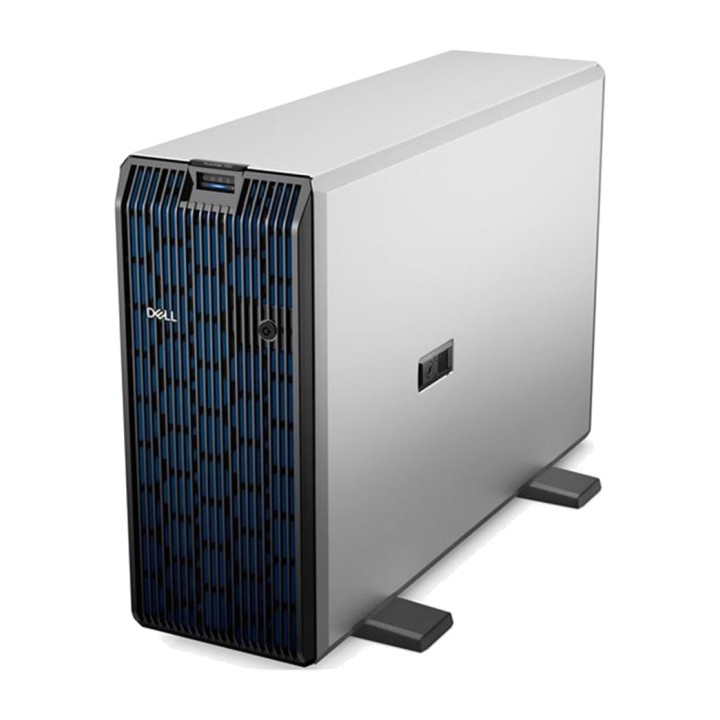

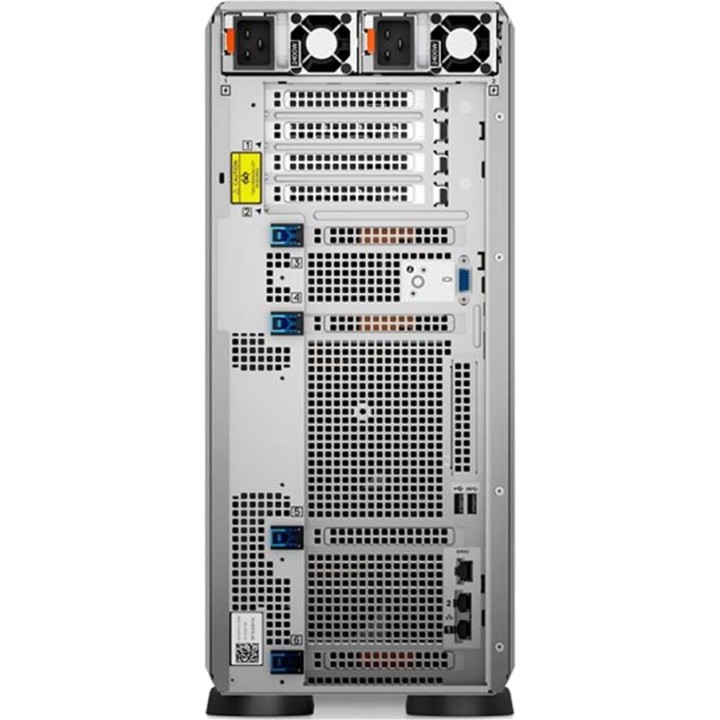

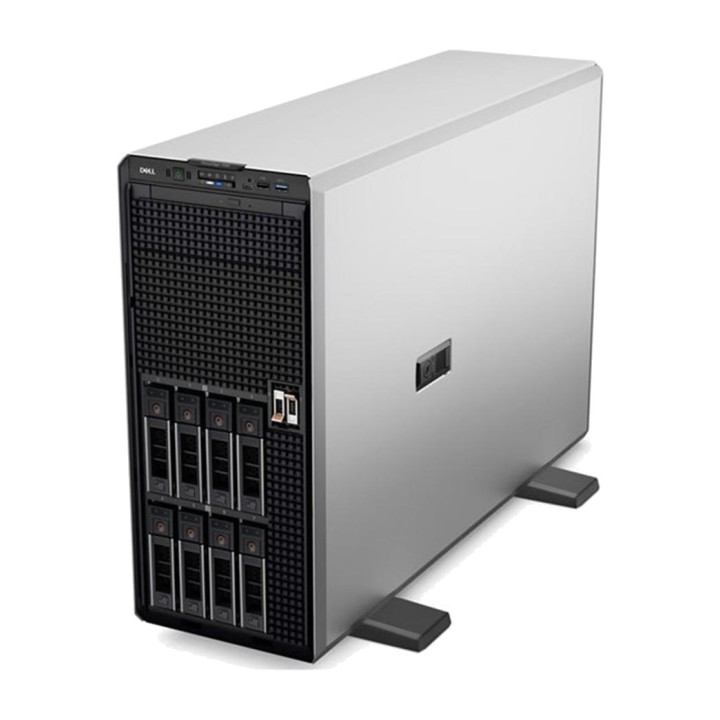

DELL Tower server POWEREDGE-T550 XEON-SILVER-4309Y 16GB 480GB-SSD 3X61G DSP0000023098

Data sheet
general
Type Server
Product form factor: Tower
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
2-way server scalability
Number of hot-swap bays: 8
COLOR BLACK
Processor / Chipset
Intel Xeon Silver CPU 4309Y
Clock speed: 2.8 GHz
Max. turbo speed: 3.6 GHz
Number of cores: 8 cores
No. CPU 1
Maximum number of CPU 2
CPU upgrade level: Upgradeable
Main processor features HT 105W
Cache memory
Installed size 12 MB
Cache per processor 12 MB
RAM MEMORY
Installed size: 16 GB / 64 GB (max.)
TECHNOLOGY DDR4 SDRAM
Effective memory speed: 2666 MHz
Rated memory speed 3200 MHz
288-pin DIMM form factor
Slots: 16 (total) / 15 (empty)
Features: Registered, dual rank
Configuration features 1 x 16 GB
HARD DISK
SSD type - hot-swap - 2.5"
CAPACITY 1 x 480 GB
Interface type SATA 6Gb/s
Features: 1 DWPD, Read Intensive, advanced format 512
Storage controller
TIPO 1
Storage controller name PERC H755 Front
optical storage
Type No optical drive
Monitor
Monitor type None.
Graphics controller
Graphics processor Matro x G200
Video memory 16 MB
Video interfaces VGA
Network connection
Interface type (bus) LAN-on-motherboard (LOM)
Ethernet ports: 2 x Gigabit Ethernet
Ethernet controller Broadcom BCM5720
Data link protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote management controller Integrated Dell Remote Access Controller 9 Enterprise 15G (i DRAC9 15G)
Expansion / Connectivity
Bays: 8 (total) / 7 (available) x hot-swap 3.5"
Interfaces: 2 x USB 2.0 (1 front, 1 rear)
2 x LAN (Gigabit Ethernet)
1 x management (dedicated iDRAC port)
1 x VGA (1 rear)
2 x USB 3.0 (1 front, 1 rear)
Miscellaneous
Included accessories: bezel, riser card, power cable (EU)
Standards compliance CCC, BIS
Pricing type Build To Plan (BTP)
Manufacturer sales program Dell Smart Selection, Dell Smart Value
Feeding
Device type Power supply - hot-pluggable
Power redundancy scheme 1+1 (with optional power supply)
Installed quantity 1
Maximum supported quantity 2
Required voltage CA 220 V
Power supplied 700 watts
80 PLUS certification 80 PLUS Titanium
Operating systems / Software
OS provided No operating system
Dimensions and weight
Width 20 cm
Depth 68.05 cm
Height 45.9 cm
Volume (m ³): 0.2374
