MSI Compact mini PC with VESA mounting CUBI-NUC-AI 1UMG ULTRA-5-125H 8GB 512GB-SSD DSP0000033162

MSI Cubi features NUC AI 1UMG-033ES
The MSI Cubi NUC AI 1UMG-033ES is a high-performance, compact and versatile mini PC, ideal for professional and educational environments or advanced users who need power in a small form factor. Equipped with a next-generation Intel Core Ultra processor, this system is designed to deliver smooth multitasking, advanced connectivity and support for 4K displays. Its quiet design, together with VESA mounting capability, makes it a perfect choice for minimalist desks or customised workstations.
Power with 14-core Intel Core Ultra
This model features the Intel Core Ultra 5 125H processor, with a 14-core hybrid architecture and speeds of up to 4.50 GHz. Its low 28 W power consumption provides an excellent balance between performance and energy efficiency, making it ideal for demanding tasks such as editing, design or light virtualisation.

Intel Core Ultra 5 125H processor (14 Cores, up to 4.50 GHz)
8 GB DDR5 memory at 5600 MHz (expandable up to 64 GB)
512 GB PCIe Gen NVMe SSD 4x4

High-level connectivity and versatile ports
Designed for connected environments, the Cubi NUC AI features dual 2.5G LAN, Wi-Fi 6E and Bluetooth 5.3, ensuring stable, high-speed connectivity. It also has a comprehensive range of 10 Gbps USB ports and Thunderbolt 4, allowing you to connect next-generation peripherals and 4K displays without limitations.

2 x Intel I226-V LAN (2.5 Gbps)
Integrated Wi-Fi 6E + Bluetooth 5.3
2 x Thunderbolt 4 (with DP 1.4 video output and power delivery)

4K video output and ultra-compact design
Thanks to its three HDMI 2.1 outputs and Thunderbolt 4 ports, this system can handle multi-monitor setups at 4K resolution and 60 Hz. All this is housed in a case measuring just 12 cm on each side, with a 100 x 100 mm VESA mounting bracket for installation behind a monitor.

3 HDMI 2.1 outputs (4K @ 60 Hz)
VESA mount included (100 x 100 mm)
Dimensions: 119.6 x 115.2 x 37.5 mm

Front and rear I/O ports
The Cubi NUC AI is equipped with a variety of ports that make it versatile and accessible in any desktop setup.

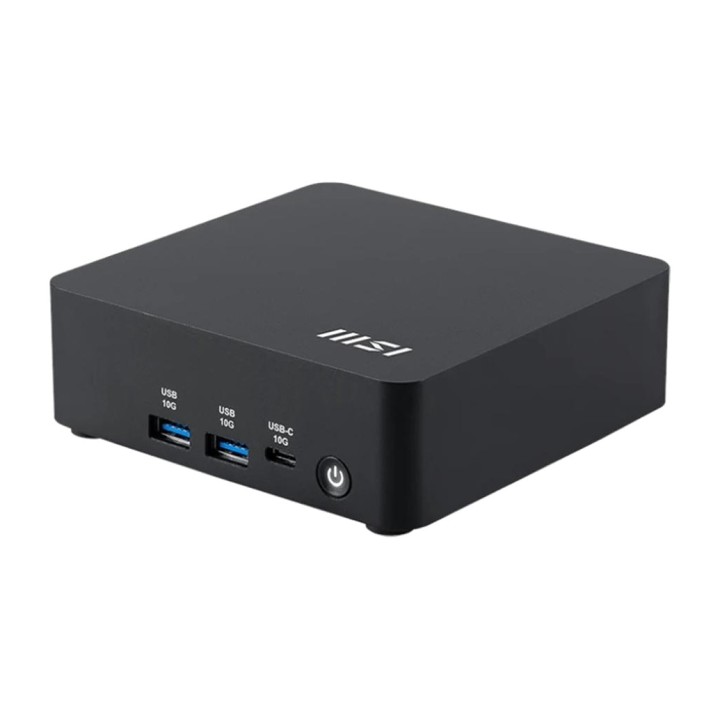

Front: 2 x USB 10 Gbps Type A, 1 x USB 10 Gbps Type C

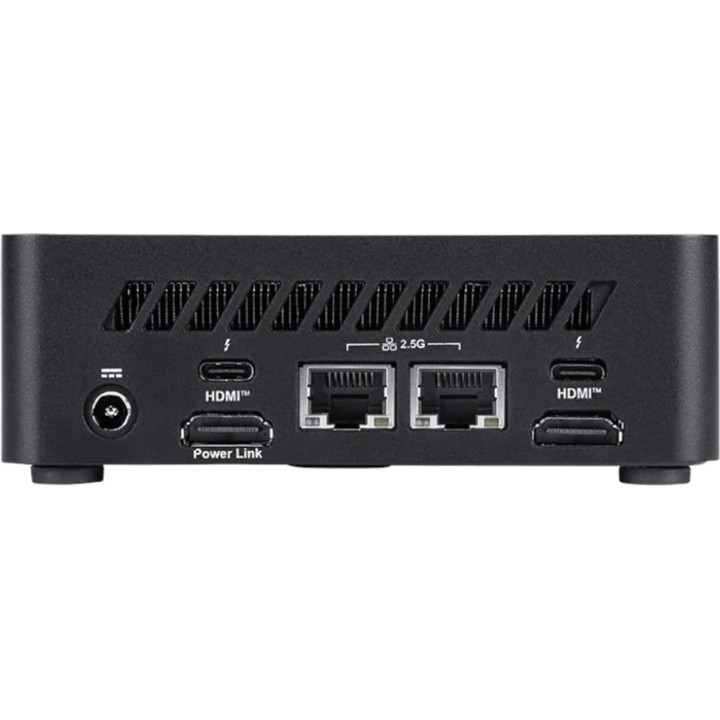

Rear: 3 x HDMI 2.1, 2 x Thunderbolt 4, 2 x RJ45 (2.5G), 1 x power connector

Other specifications

Operating system: Windows 11 Pro
Memory: 2 SO-DIMM slots (1 occupied, 1 free)
Storage type: M.2 2280 PCIe Gen 4x4
Volume (m ³): 0.0046
