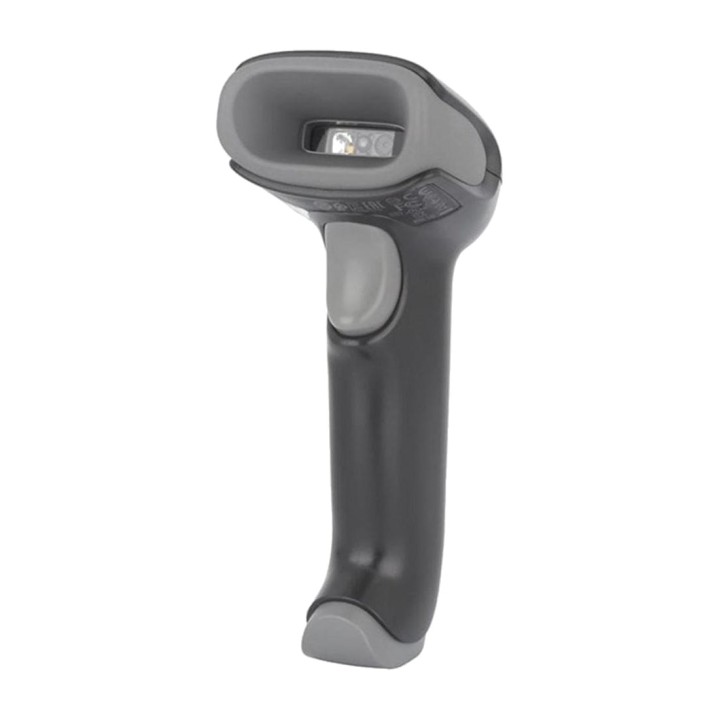

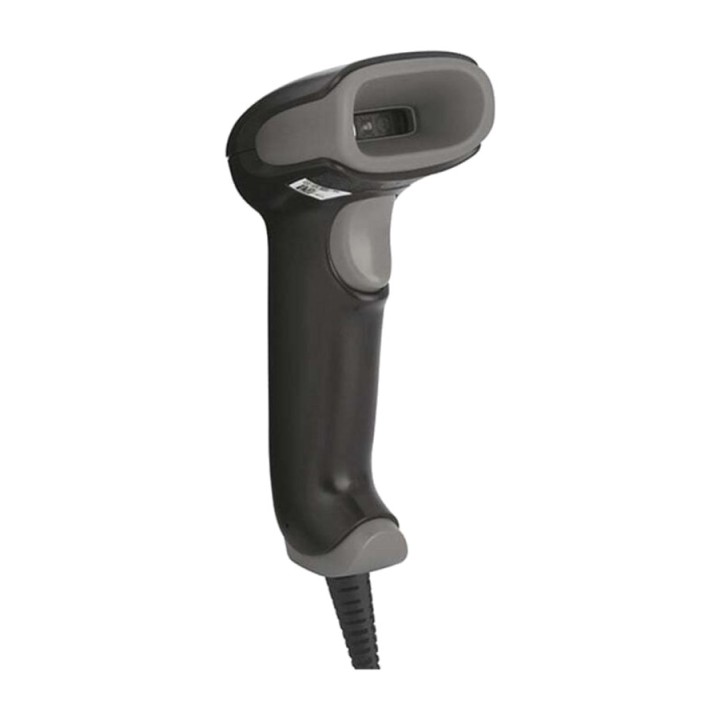

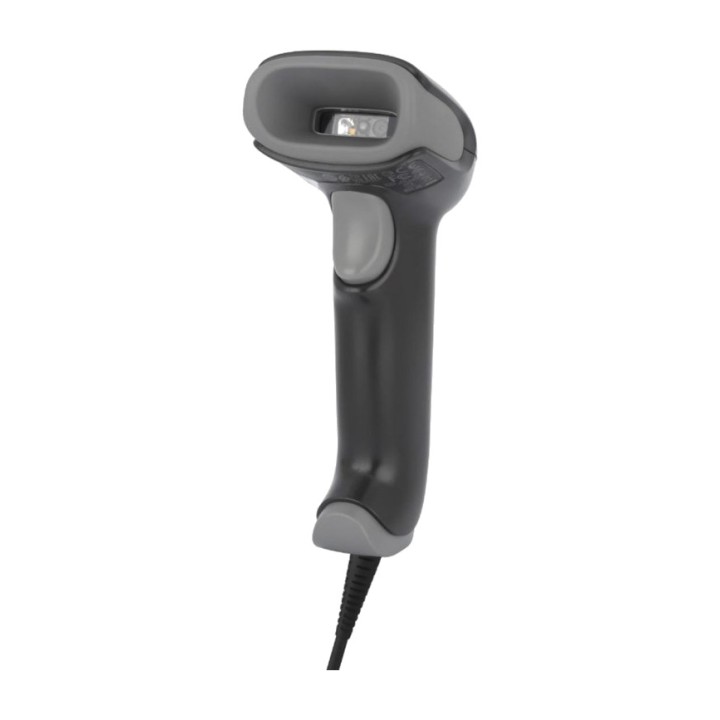

HONEYWELL Wired 2D barcode scanner VOYAGER-XP 1470G USB-1470G2D-2USB-1-EU MGS0000036340

Honeywell Voyager XP 1470g barcode scanner features
The Honeywell Voyager XP 1470g is a handheld barcode scanner designed to capture 1D and 2D codes, even when they are damaged, poorly printed or displayed on device screens. Its compact design, USB connection and IP52 rating make it a suitable solution for retail, warehouse and logistics environments where fast, reliable scanning is required.
1D and 2D scanning using Imager technology
Its Imager system with a 1040 x 720 pixel sensor can capture various barcode symbologies, including linear and matrix formats. It also offers a working distance of up to 40 cm, making it easier to scan labels without always having to position the scanner at close range.

Scanning mode: 1D/2D using Imager
Sensor resolution: 1040 x 720 pixels
1D symbologies: Code 39, PDF417, UPC-A and UPC-E
2D symbologies: Data Matrix and QR Code
Working distance: up to 40 cm

Wide angles for easier scanning
The Voyager XP 1470g provides wide scanning angles, allowing it to capture codes even when the scanner and label are not perfectly aligned. This flexibility helps speed up repetitive scanning tasks and makes everyday work more comfortable.

Longitudinal scanning angle: -180° to 180°
Tilt angle: -65° to 65°
Yaw scanning angle: -70° to 70°
Supported light levels: 0 to 100,000 lux, including direct sunlight
Integrated LED indicator

Durable design for professional environments
Designed to withstand frequent use, this scanner features IP52 protection and can withstand drops from heights of up to 1.80 metres. These features provide greater protection when used at points of sale, in warehouses and in other professional spaces where the device may be subject to intensive use.

Protection rating: IP52
Drop resistance: up to 1.80 m
Operating temperature: 0°C to 50°C
Storage temperature: -40°C to 60°C
Operating relative humidity : 0% - 95%

Simple and stable USB connection
Its wired USB connectivity makes it easy to integrate into a workstation. The included cable is 1.5 metres long, and USB provides the power required to operate the scanner.

Connectivity: wired USB
Cable length: 1.5m
USB-powered
consumption : 2 W
Power consumption in standby mode : 0,45 W
Input voltage : 4 - 5,5 V

Compact, comfortable format for everyday use
With dimensions of 62 x 82 x 169 mm and weighing just 130 g, the Honeywell Voyager XP 1470g has a compact format designed for easy handling during long shifts. Its black finish makes it easy to integrate into a variety of workstations.

Dimensions: 62 x 82 x 169 mm
Weight: 130g
COLOUR: BLACK
Type: handheld barcode scanner

Device management tools
The reader is compatible with Honeywell Operational Intelligence and Scanner Management Utility (SMU) tools. These solutions make it possible to manage device-related information and facilitate deployment, configuration and update tasks in professional environments.

Compatible with Honeywell Operational Intelligence
Compatible with Scanner Management Utility (SMU)
Tools for device management and configuration

Box contents

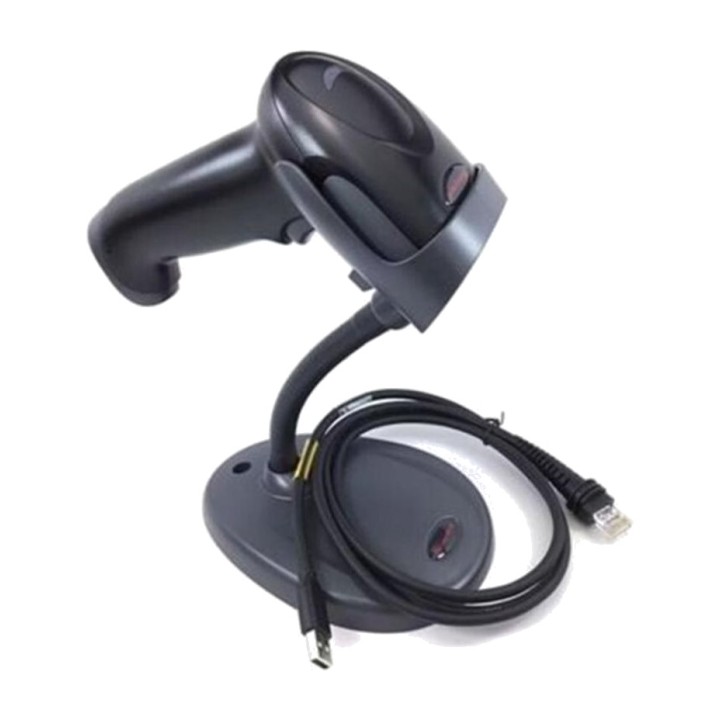

The Honeywell Voyager XP 1470g is supplied with the accessories needed for easy installation at the workstation, including a desktop stand and USB cable.

Honeywell Voyager XP 1470g reader
Desk mount
USB Cable
Volume (m ³): 0.0039
