WACOM Interactive signature and document display with pen DTU-1141 10,1" FULL HD MGS0000011908

DTU-1141B
The leading
eDocument and
eSignature solution
Product overview
DTU-1141B offers a seamless viewing and signing experience for
documents thanks to its
extra-slim 10.1-inch screen with full HD resolution.
It works as an external monitor but uses Wacom's patented pen technology
from Wacom to enable
writing and signing documents. It is ideal for
business applications that benefit
from employees working directly on the screen with a pen to,
for example, present forms to customers for them to view,
sign electronically, or add marks and annotations to
the documents. When not being used for signing,
it can display slides or advertising videos.
Outstanding features:
10.1-inch LCD screen featuring
full HD, full-colour resolution (1920x1080)
and a wide viewing angle.
Patented cordless, battery-free pen with
1024 pressure sensitivity levels to
deliver a high-quality signing/writing
experience.
Single USB cable connection,
which supplies video, power and USB data.
State-of-the-art encryption to ensure
transaction security.

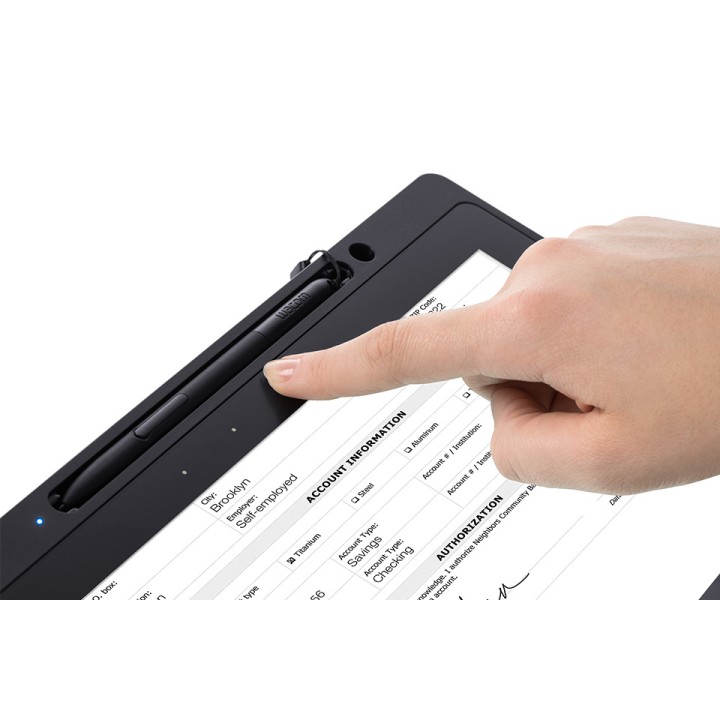

Four touch-sensitive ExpressKeys that
can be assigned to common functions.
Anti-glare tempered glass surface that
provides excellent durability and makes viewing easier
in different lighting conditions.
Unique hardware ID (UID) that allows
the identification of the exact unit used
in any transaction.
Kensington security slot for
securing the unit when necessary.
Standard VESA mount compatible with
mounts and arms from other brands.
GENERAL SPECIFICATIONS
Dimensions 11.1 x 8.3 x 0.4 inches
(W x H x D, excluding stand) (283 x 210 x 11 mm)
Weight (including stand) 1.8 pounds (800 grams)
Stand tilt 15
Power supply Via USB connection,
without the need for an AC adapter
Power consumption 5 W max., 1 W in idle mode
Communication USB 2.0 port (high speed)
Supported operating systems Windows 10/8.1/7 (32-bit, 64-bit)
Mac OSX 10.9 or later
LCD screen
Display AHVA display
Glass surface cover Matte tempered glass with coating
anti-glare Screen dimensions 8.8 x 5.0 inches (223 x 126 mm)
Aspect ratio 16:9
Native resolution Full HD, 1920 x 1080 pixels
Supported resolutions 800x600, 1366x768, 1024x768, 1280x800,
1440x900, 1920x1080
Viewing angle (horizontal/vertical) 170/170
Brightness 200 cd/m2 (typical)
Contrast ratio 1000:1 (typical)
Response time N/A
Colors 16.7 million
Tablet and pen
Technology Electromagnetic resonance (EMR)
Coordinate resolution 2540 lpi or 0.01 mm/pt
Accuracy 0.02 in./0.5 mm (center)
Reading speed 200 points per second (not interpolated)
Pressure levels 1024
Security lock slot Yes
Encryption AES 256/RSA 2048
Data security Real-time signature capture without internal memory
inside the tablet
Other data
Reading height 5 mm or more (center)
Pen holder Integrated pen compartment, pen holder
Mounting system VESA 75 mm
Software compatibility Compatible with signature software/
signature capture software E-signing and Wacom sign pro PDF, C++, .NET
and Java SDK/API available for developers
Drivers Wacom drivers required
and DisplayLink
Package contents DTU-1141B, pen, USB cable, quick start guide
quick, pen tether, 5 additional pen nibs
for the pen, nib removal tool
the nibs, 4 VESA mounting screws, accessory
for the USB plug
Volume (m ³): 0.0064
