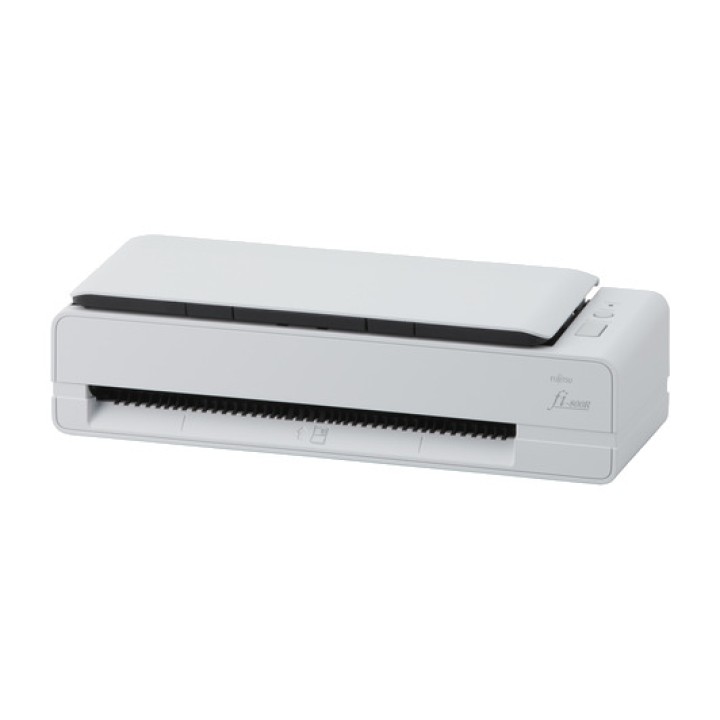

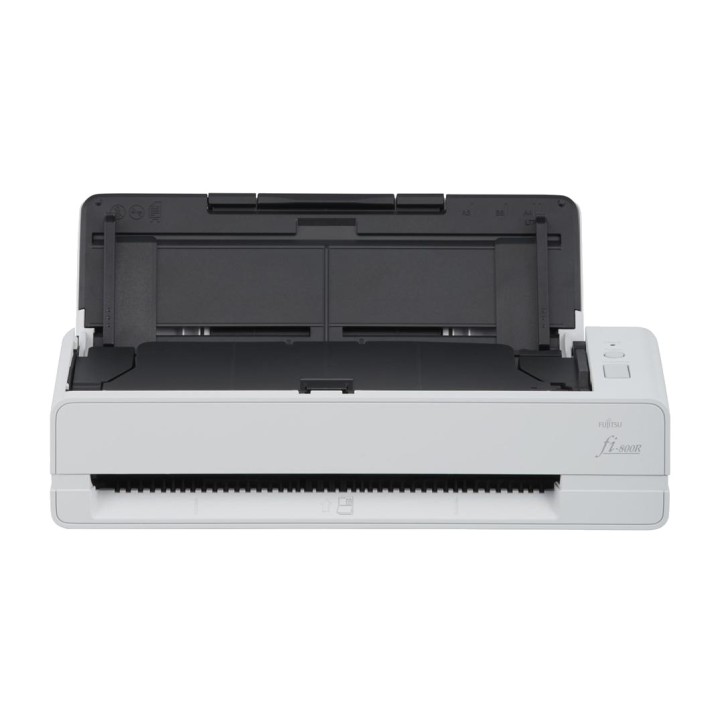

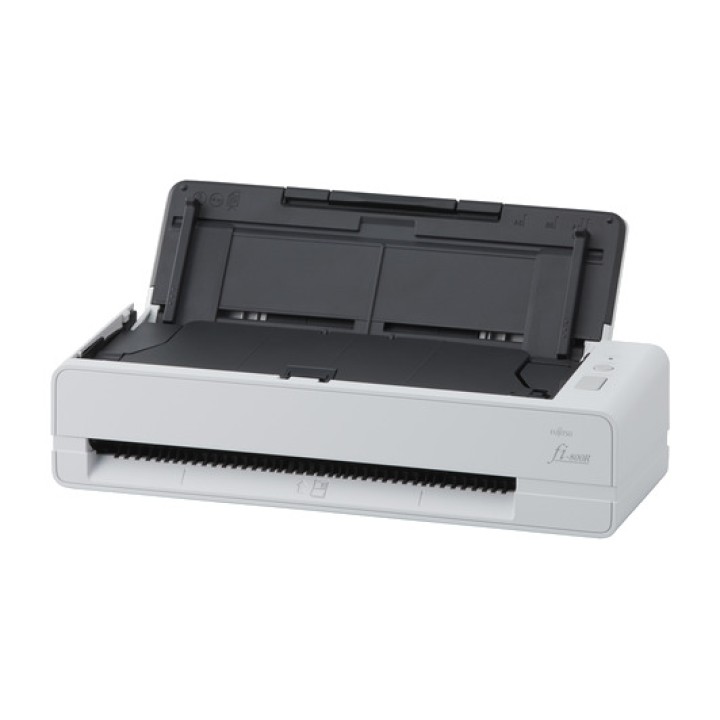

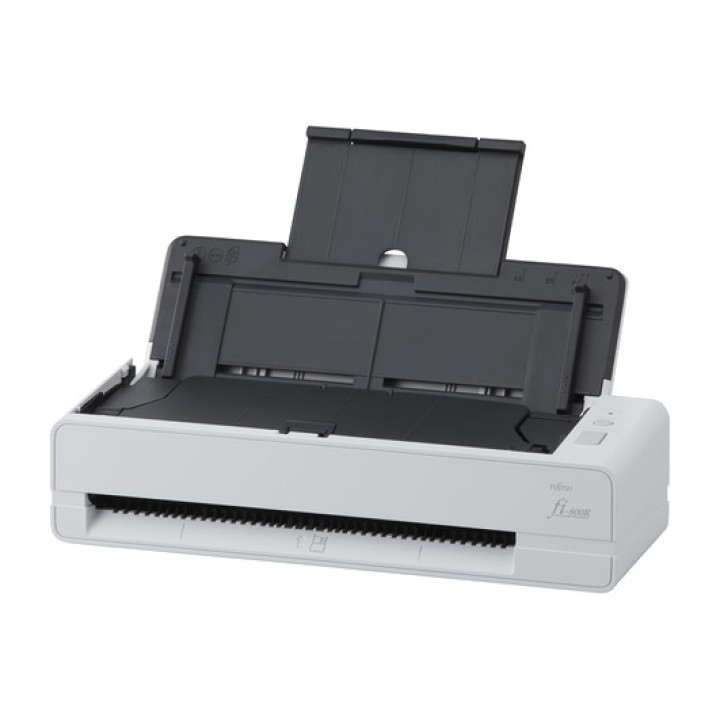

RICOH Compact duplex document scanner for counter use FI-800R A4 DSP0000036612

Features of the RICOH-FUJITSU fi Scanner -800R
The professional RICOH-FUJITSU fi-800R scanner is designed for demanding work environments that require a compact, fast and versatile device. Ideal for offices, customer reception areas or service points, this scanner combines automatic document feeding (ADF) with front manual feeding, allowing standard and special documents such as passports, ID cards or cards to be digitized without compromising on space or efficiency.
Fast scanning, duplex and professional quality
The fi-800R offers a scanning speed of up to 40 ppm in simplex and 80 ipm in duplex, with an optical resolution of 600 x 600 dpi. Its imaging technology is based on CIS sensors and RGB LED light, ensuring accurate capture in colour, greyscale or monochrome.

ADF speed: 40 ppm (simplex) / 80 ipm (duplex)
Optical resolution : 600 x 600 DPI
Colour modes: colour, greyscale, monochrome

Front feeding, ideal for passports and special documents
Thanks to its front manual feed tray, the fi-800R makes it easy to scan special documents such as passports, ID cards or cards. This feature makes it a perfect choice for customer reception areas, airlines or administrative services.

Supports thicknesses of up to 1.4 mm
ID card slot
Scans documents up to 5588 mm long

Ultra-compact design and efficient operation
At just 296 mm wide and weighing 2 kg, this scanner fits into tight spaces without compromising on performance. Its daily duty cycle of up to 4500 pages ensures reliable performance during demanding workdays.

Dimensions: 296 x 105 x 83 mm
Weight: 2kg
Maximum daily duty cycle: 4500 pages

Easy connectivity and low power consumption
The fi-800R connects via USB Type-B and is compatible with the main scanning drivers (ISIS, TWAIN, WIA). It also has energy certifications such as ENERGY STAR and very low power consumption in standby and off modes.

USB 1.1 / Type-B connection
Compatibility: ISIS, TWAIN, WIA
Standby mode: 1.7 W / Off : 0.15 W

Compatibility with multiple formats
This model supports various ISO paper sizes, including A4, A5, A6 and B5, as well as special sizes such as legal and letter, adapting to different digitisation needs in offices, public administrations or corporate environments.

Maximum scanning size: 216 x 5588 mm
Supported formats: A4, A5, A6, A7, A8, B5, B6, B7, B8, Legal, Letter
Colour depth: 24 bit (colour), 8 bit (greyscale), 1 bit (monochrome)

Sustainability and energy efficiency
The fi-800R complies with international efficiency and sustainability standards, including RoHS and ENERGY STAR certifications. Its power consumption is optimised for responsible everyday use.

Certifications: RoHS, ENERGY STAR
Input voltage : 100 - 240 V
Operating temperature : 5 – 35 °C

Other specifications

Image sensor: CIS
Light source: RGB LED
No built-in display
HS code: 84716070
Operating relative humidity : 20 – 80 %
Volume (m ³): 0.0128
