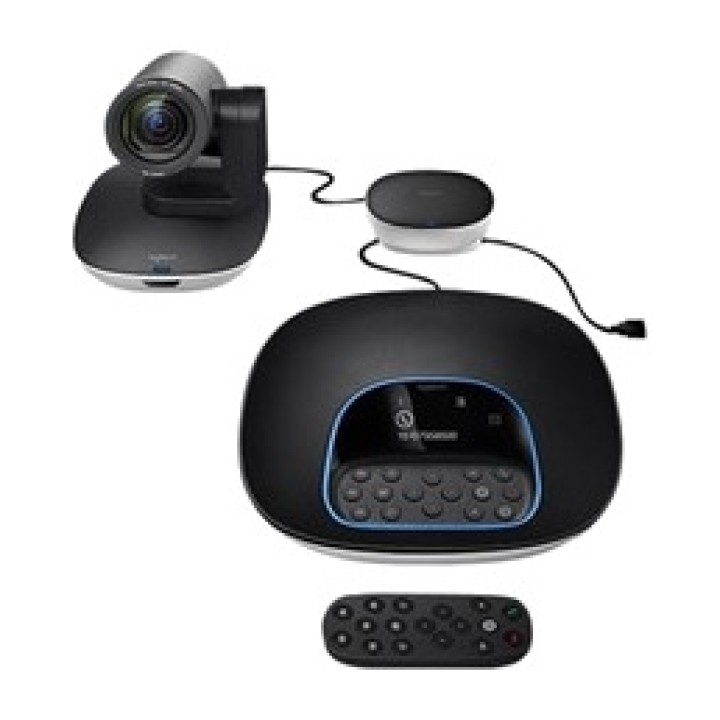

LOGITECH Video conferencing system for groups GROUP FULL HD 960-001057

Large groups:
Group is ideal for video conferencing with medium-sized and large groups. If the
room or group is really large, the optional expansion microphones
will extend the sound pickup range to 8,5 m (28 ft).
Sharp video
This video system delivers HD 1080p quality at 30 frames per
second.
Clear audio quality
Group has a full-duplex hands-free system that delivers
clear, highly intelligible sound.
Field of view of 90º
Everyone in the room is visible thanks to the field of view of 90º.
Focus on the speaker, material or whiteboard with mechanical pan of 260
degrees and 130-degree tilt
Remote control
There are two ways to control the camera’s pan, tilt and
zoom functions, as well as the volume and calls on the hands-free system:
using the hands-free system console or the remote control. The
remote control can be docked on the console when not in use, to prevent it from
getting lost.
5 preset camera options
The various preset camera options make it easy to frame and
focus on frequently used views, such as the meeting table, the
whiteboard and close-ups, with the option to return to each of the
views simply by pressing a button.

System requirements

Windows 7, 8.1 or 10
Mac OS X 10.7 or later

DIMENSIONS

Camera: 130 mm (5,12 in) x 170 mm (7,0 in) x 138 mm (5,40 in)
Weight: 585 g (1,31 lb)
Speakerphone: 240 mm (9,5 in) x 65 mm (2,5 in) x 240 mm (9,5 in)
Weight: 1.223 g (2,68 lb)
Hub: 94 mm (3,75 in) x 34 mm (1,3 in) x 74 mm (2,9 in)
Weight: 83 g (3,0 oz)
Remote control: 50 mm (2,0 in) x 120 mm (5,0 in) x 12 mm (0,5 in)
Weight: 51 g (2,0 oz)
Wall/table mount: 210 mm (8,27 in) x 120 mm (4,72 in) x 99 mm
(3,9 in)
Weight: 255 g (8,99 oz)
Expansion microphones: 83 mm (3,30 in) x 83 mm (3,30 in) x 21 mm (0,83
in)
Weight: 230 g (8,0 oz)

Warranty information

Two-year limited hardware warranty
Box contents

Inner tube
Speakerphone
Remote control
Two 5 m/16,4 ft cables to connect the speakerphone and the hub
Inner tube
3 m/9,8 ft cable between hub and PC
Velcro cable ties
Velcro to secure the hub to the table, powered hub
Power adapter with regional plugs
SUPPORT
Quick Start Guide
Warranty card.

specs

Download the Group data sheet
Camera:
Robotic pan fluid
Tilt and zoom
Control with remote control or Panoramic console 260
Handlebar angle 130
10x HD lossless zoom
Field of view of 90
Full HD 1080p 30 fps
H.264 UVC 1.5 with scalable video coding (SVC)
5 autofocus options
ConferenceCam product remote control (PTZ)
ZEISS lens certification
Kensington Security Slot
LED to confirm video streaming
Standard tripod adapter
Remote control:
Connectable, range of 8.5 m/28 ft
Hands-free system:
Full duplex
Acoustic echo cancellation
Noise reduction technology
Super-wideband audio
Bluetooth and NFC
LCD for caller ID and call duration, and other functions
RESPONSE
LED indicators for streaming, mute, hold and Bluetooth
Touch controls for answering/ending calls, controlling
volume and mute and Bluetooth, as well as a “home” preset and
PTZ remote control
Microphones (Tx)
Four omnidirectional microphones with a range of 6
metres (20 ft)
Frequency response: 100 Hz - 11 kHz
Sensitivity: -28 dB +/-3 dB
Distortion: <,5% at 200 Hz
Kensington Security Slot
Hub / Cable:
Central mountable hub for connecting all components
Adhesive solution included for under-table mounting
Two cables for connection between hub and camera/hands-free system
(length: 5 m/16 ft)
USB cable for connection to PC/Mac (length: 2 m/6.6 ft)
AC power adapter (length: 3 m/9.8 ft)
Support:
Dual-function mount for wall or elevated placement
on a table
Compatibility and tools:
COMPATIBLE WITH USB 2.0
UVC-compliant audio and video for compatibility with various
FITS
Compatibility with Skype for Business certified, Microsoft Lync,
Cisco Jabber and WebEx
Enhanced integration with Logitech Collaboration Program members
(LCP)
Downloadable diagnostic tool
On-site firmware update tool
Downloadable add-ons for advanced features
Volume (m ³): 0.0233
