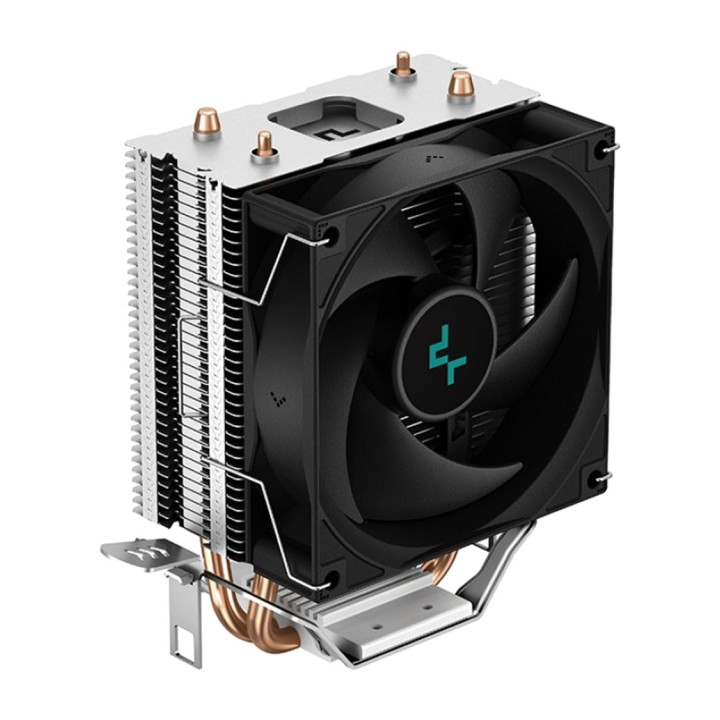

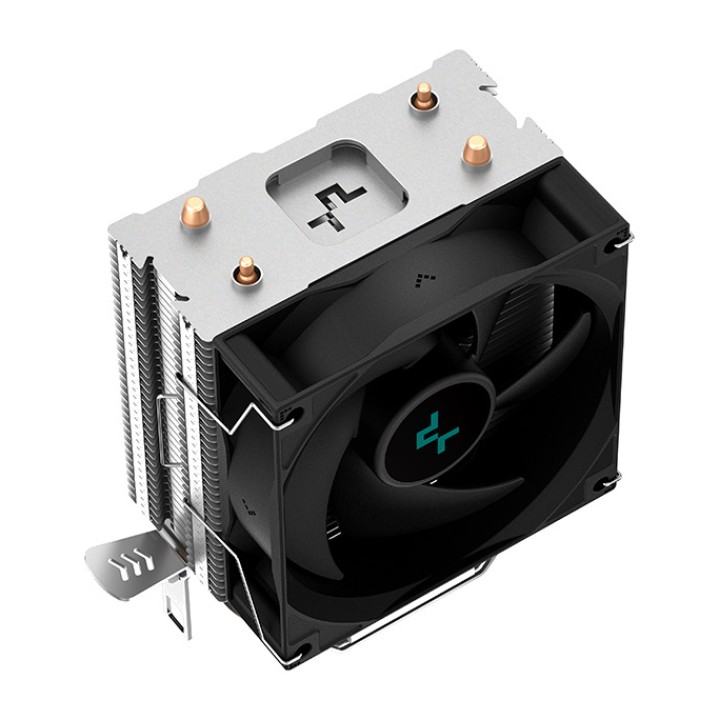

DEEPCOOL Air CPU cooler AG200 DSP0000014805

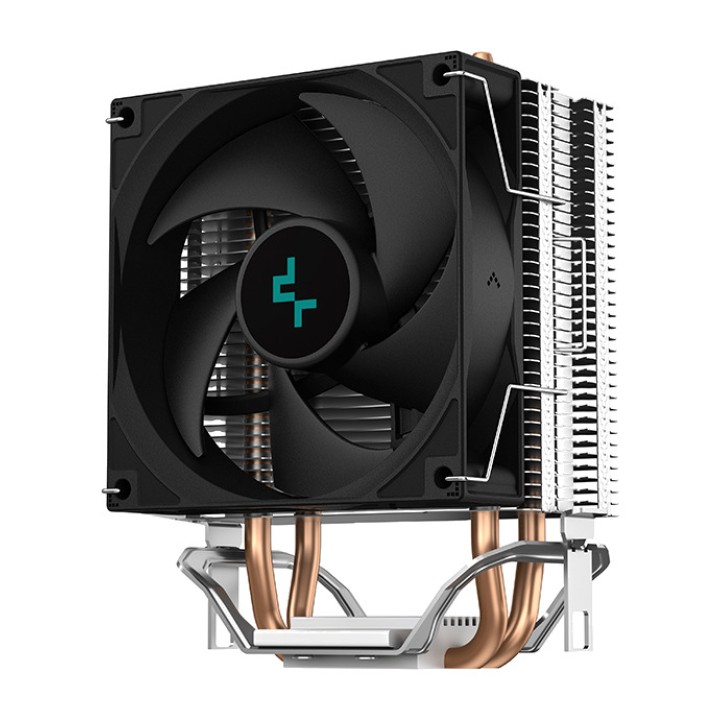

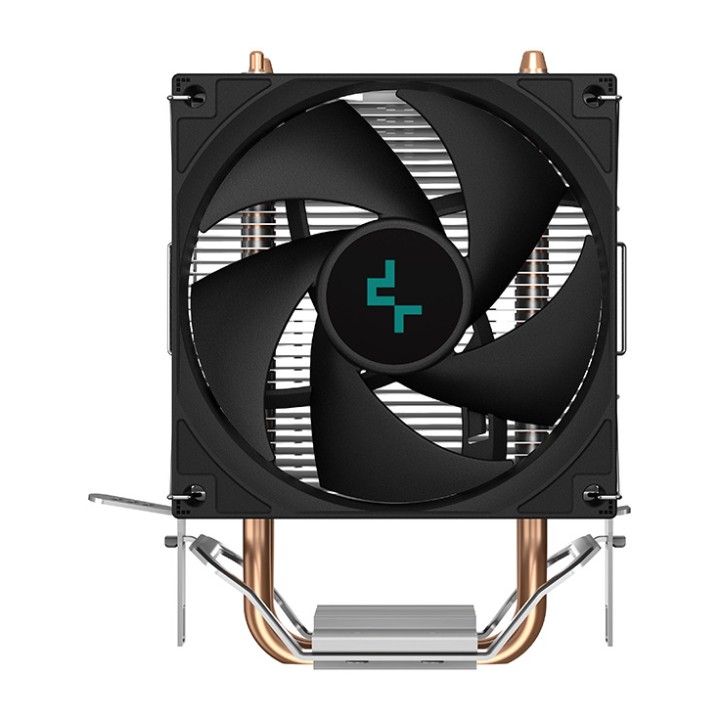

The AG200 is a compact single-tower CPU cooler that represents a next-generation upgrade to the classic entry-level GAMMAXX coolers, with improved appearance and efficiency
with a heat dissipation capacity of 100 W.
Characteristic:

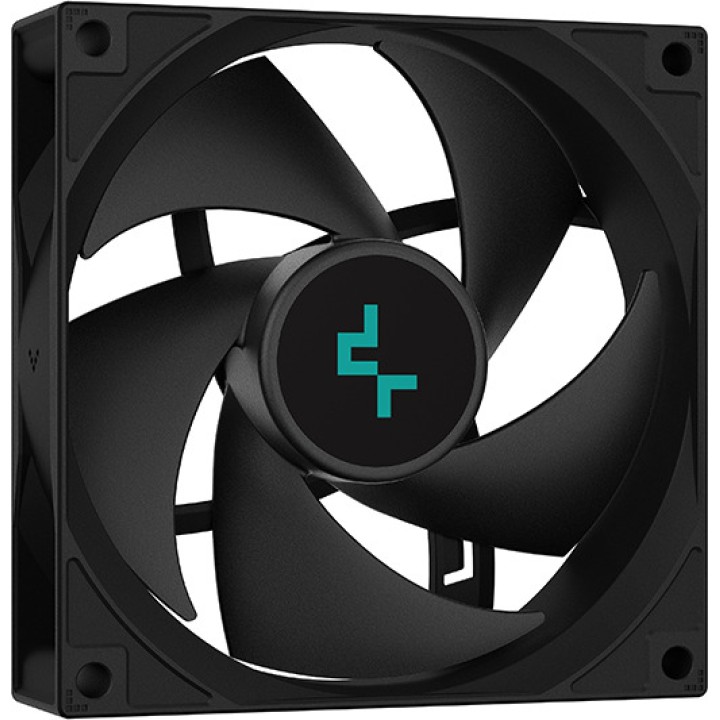

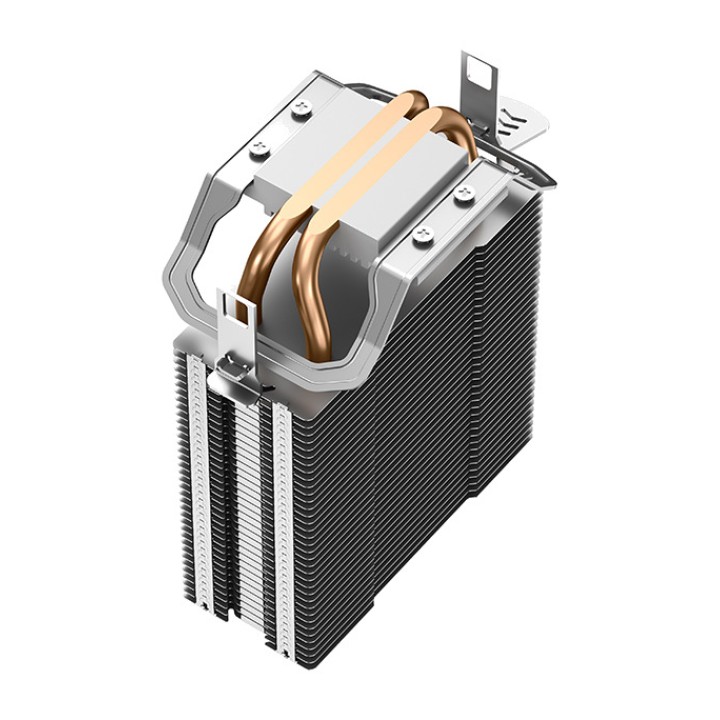

Efficient cooling power: Two direct-contact copper heat pipes transfer heat effectively for optimal dissipation through the heatsink tower. The fan
92 mm PWM generates balanced airflow for performance and quiet operation.

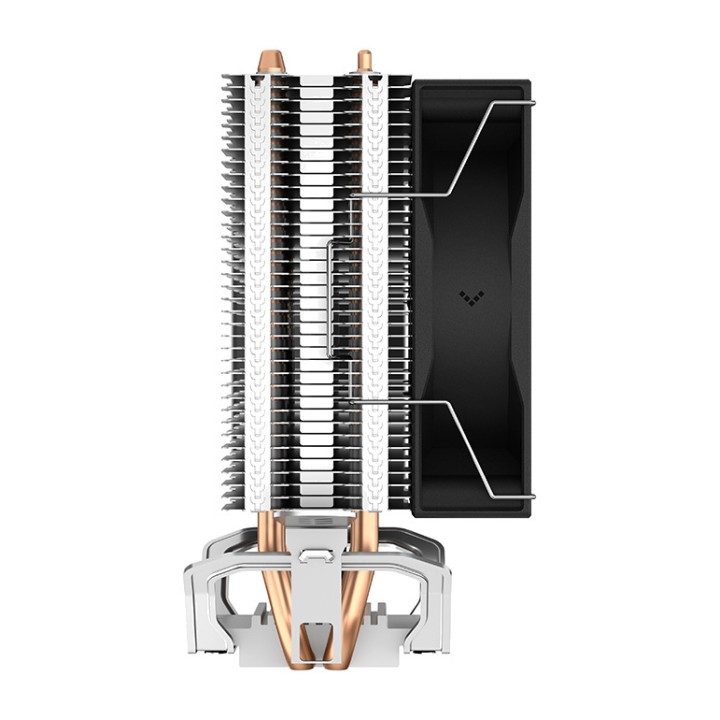

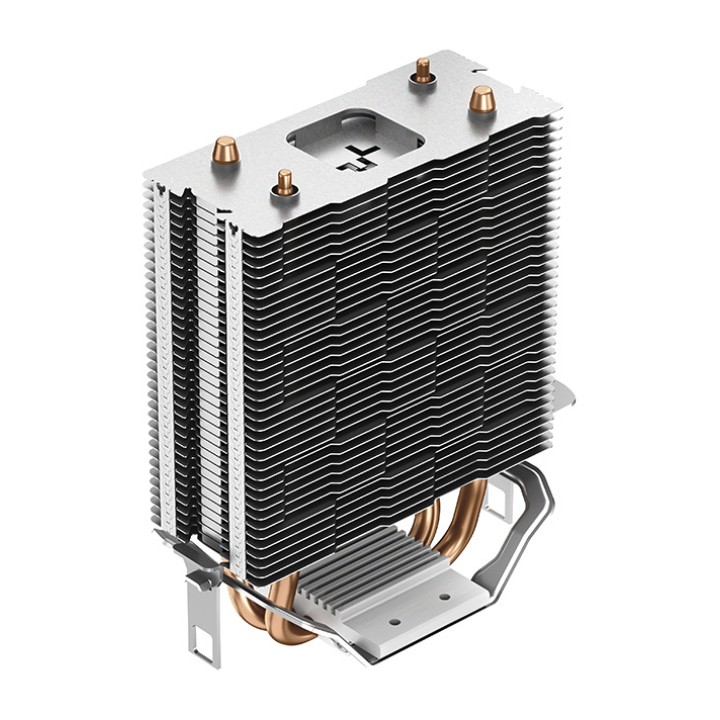

Familiar new look: The AG200 adopts a new design from the DeepCool family and features a unique fin array that packs each fin closely together for a neat and
sturdy.

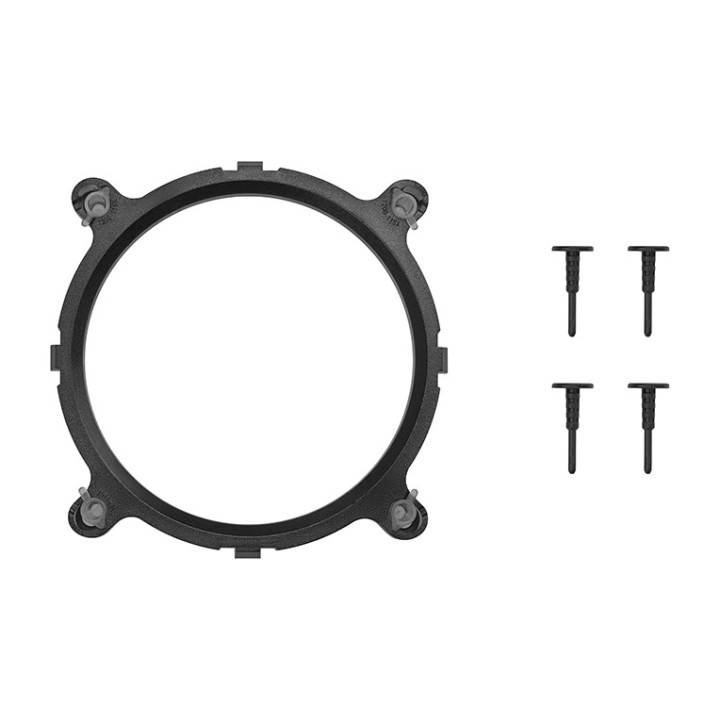

Easy installation: Compatible with multiple Intel and AMD socket platforms, with support for the latest changes. Ensure proper mounting pressure with the included brackets for a
perfect installation.

Specifications:

Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 9.2 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, AM4 socket, AM5 socket
Rotation speed (min .): 500 RPM
Rotation speed (max x.): 3050 RPM
Noise level (high speed): 30.5 dB
Maximum airflow: 36.75 cfm
Maximum air pressure: 2.89 mm H2O
Pulse-width modulation (PWM) support: Yes
Bearing type: hydraulic
Quantity per pack: 1 piece(s)

Design
Product colour: Aluminium, Black
Number of fans: 1 fan(s)
Number of fan blades : 5
Number of heat pipes : 2
Fan connector: 4-pin

Power control
Rated voltage : 12 V
Fan power consumption : 1,56 W
Rated current : 0,13 A

WEIGHT AND DIMENSIONS
Width: 119mm
Radiator width: 9.4 cm
Radiator depth: 13.3 cm
Radiator height: 5.7 cm
Depth: 133mm
Height: 77mm
Weight: 304 g
Fan dimensions (W x W x D): 92 x 92 x 25 mm
Heat pipe diameter: 6 mm

Package contents
Packaging type: Box
CPU socket spacer(s): Yes
Volume (m ³): 0.0025
