UNYKACH Compact CPU cooler for Intel and AMD UNYCOOL-H37 90MM DSP0000042381

Features of the UNYKAch UNYCOOL H37

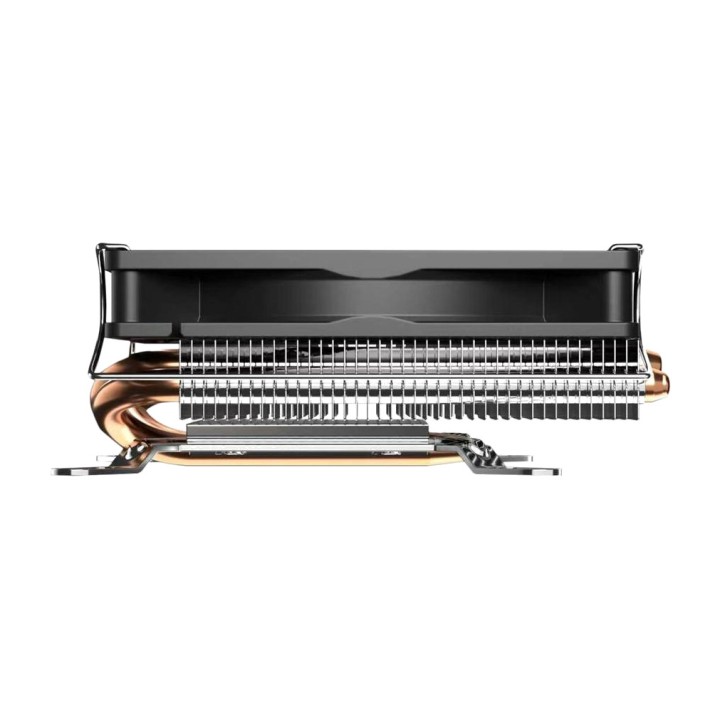

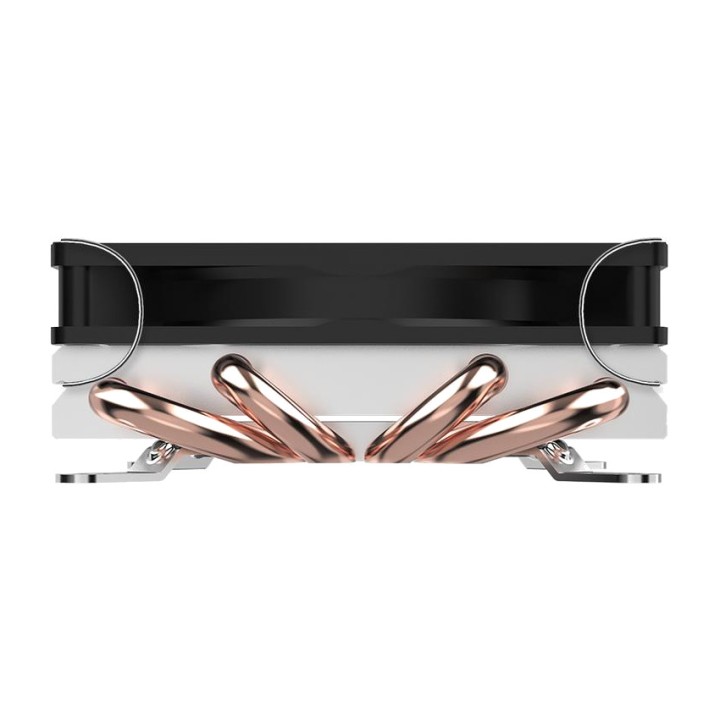

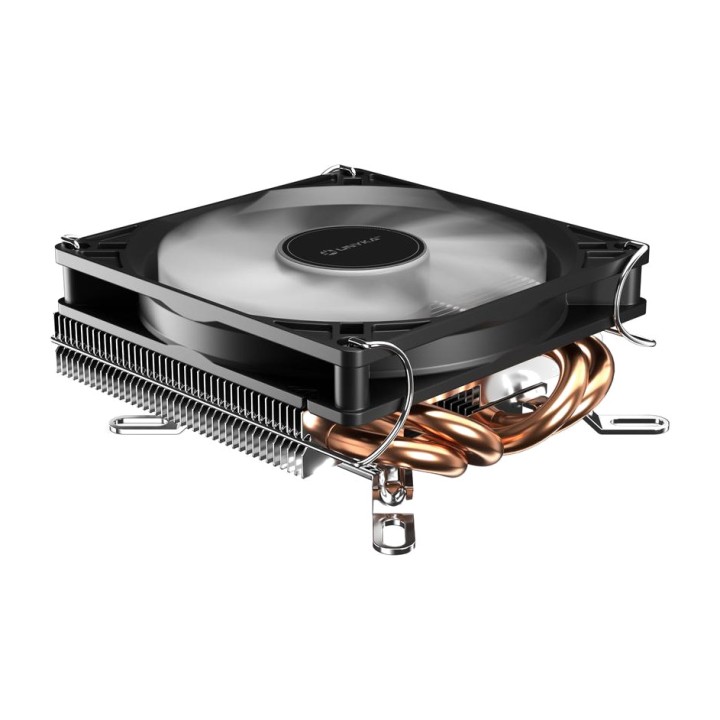

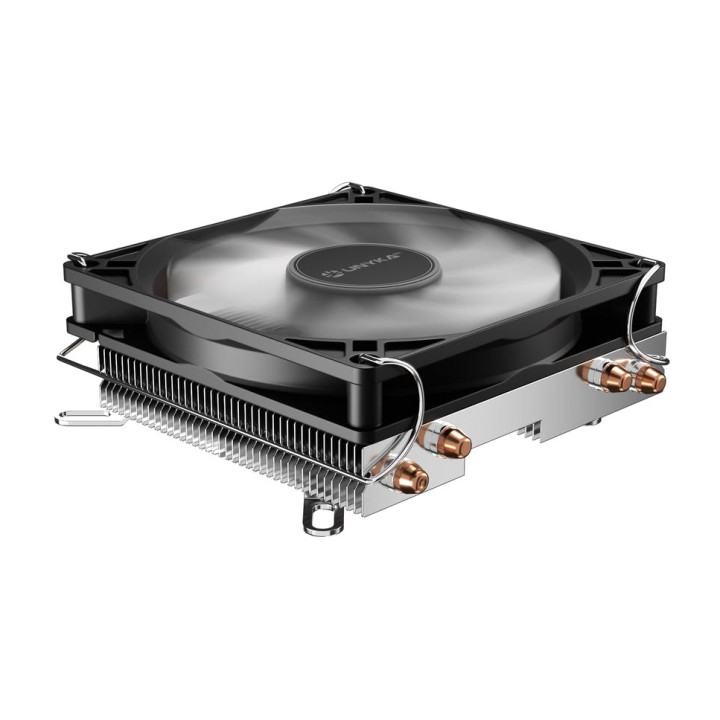

The UNYKAch UNYCOOL H37 is a compact air cooler for Intel and AMD processors, designed to provide efficient cooling in systems where available space is limited. Its low-profile design, 90 mm PWM fan and four copper heat pipes allow it to handle processors with a TDP of up to 130 W, making it particularly suitable for ITX systems, SFF systems, office computers and multimedia configurations.
Compact low-profile design
With dimensions of just 92 x 103 x 37 mm, the UNYCOOL H37 is easy to integrate into compact cases and configurations that make efficient use of interior space. Its height of 37 mm helps avoid interference with RAM and other nearby components, making it particularly practical for ITX systems and SFF (Small Form Factor) systems.

Dimensions: 92 x 103 x 37 mm
Heatsink height: 37 mm
Weight: 237 g
Color: black and white
Compact format suitable for low-profile configurations

Cooling for processors up to 130 W TDP
Its cooling system combines an extruded aluminum block with 40 fins and 4 copper heat pipes. This construction promotes the transfer of heat generated by the processor and its subsequent dissipation through the fan's airflow, supporting CPUs with a thermal design power of up to 130 W.

Supported TDP : 130 W
4 heat pipes
40 cooling fins
Aluminum and copper construction

90 mm PWM fan with 11 blades
The UNYCOOL H37 features a 90 mm fan with 11 blades and PWM control, capable of adjusting its operating speed between 800 and 3000 RPM according to cooling requirements. This allows it to increase airflow when processor load rises and reduce its speed when maximum performance is not required.

Fan diameter: 90 mm
Fan dimensions: 90 x 90 x 15 mm
Minimum speed : 800 RPM
Maximum speed : 3000 RPM
11 blades
Compatible with pulse-width modulation (PWM)
4-pin fan connector

Optimized airflow and controlled operation
The fan delivers a maximum airflow of 48.3 CFM and pressure of up to 3.24 mmH2O, helping to push air through the heatsink fins. At maximum speed, it produces a noise level of 33.6 dB and uses a hydraulic bearing with a mean time between failures of 40,000 hours.

Maximum air flow : 48,3 CFM
Maximum air pressure: 3.24 mm H2O
Noise level at high speed: 33.6 dB
Bearing type: hydraulic
Mean time between failures: 40,000 hours
Start-up voltage : 7 V

Wide compatibility with Intel and AMD sockets
Thanks to its multi-socket system, the UNYCOOL H37 is compatible with different generations of Intel and AMD processors. It can be installed on current platforms such as Intel LGA 1851 and LGA 1700 or AMD AM5, and also supports various sockets from previous generations.

Intel LGA 1851
Intel LGA 1700
Intel LGA 1200 (Socket H5)
Intel LGA 1151 (Socket H4)
Intel LGA 1150 (Socket H3)
Intel LGA 1155 (Socket H2)
Intel LGA 1156 (Socket H)
AMD Socket AM5
AMD Socket AM4

Installation ready for Intel and AMD platforms
The heatsink includes retention brackets, thermal compound and the necessary mounting accessories, making it easy to install on compatible Intel and AMD platforms. Its compact design also helps simplify installation in systems with limited space.

Retention brackets included
Thermal compound included
Mounting accessories included
Cable length: 0.27 m
Quantity per pack: 1 piece

Other specifications
The UNYCOOL H37 is CE and RoHS certified and is supplied in compact packaging that protects the unit and its accessories during transport.

Certificates of conformity: CE and RoHS
Package dimensions: 137 x 180 x 75 mm
Package volume: 1800 cm³
Package weight: 342 g
Main carton dimensions: 380 x 700 x 325 mm
Quantity per master carton: 30 pieces
Volume (m ³): 0.0023
