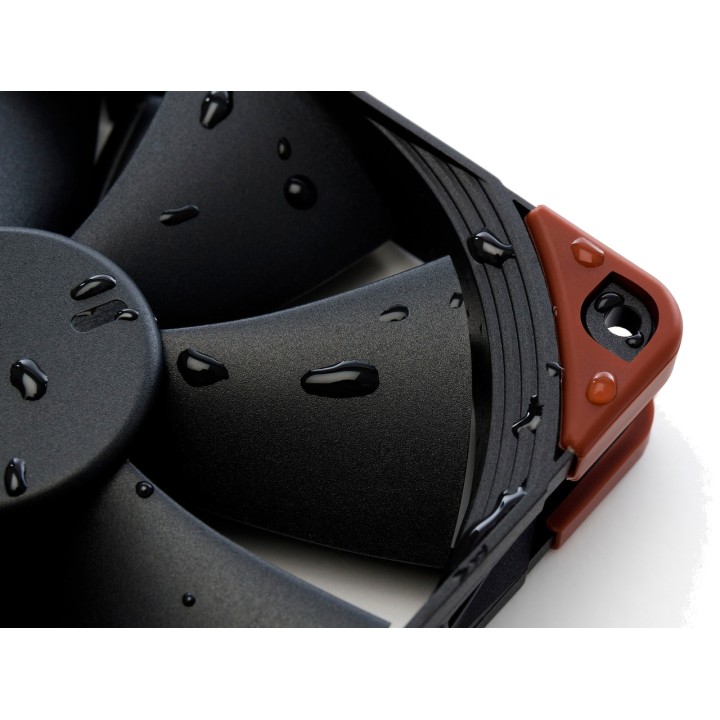

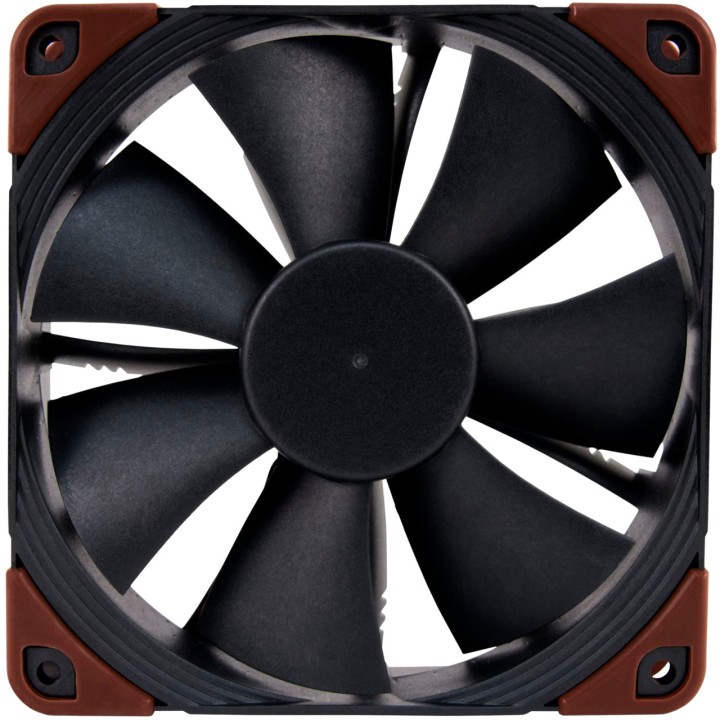

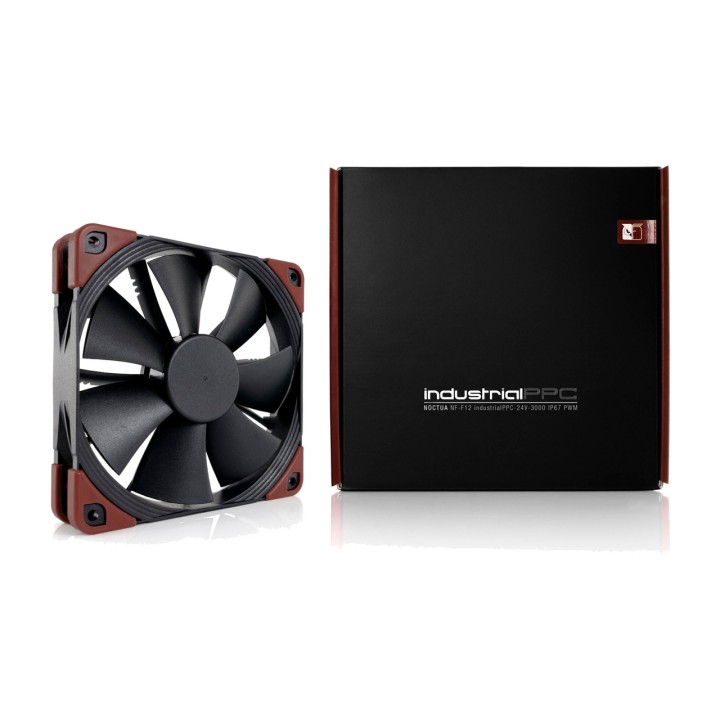

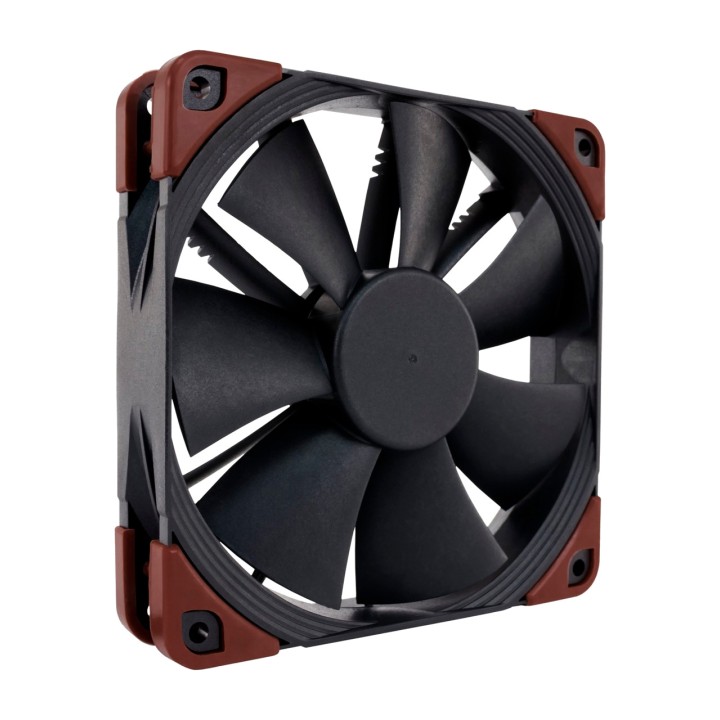

NOCTUA PC case fan NF-F12 INDUSTRIALPPC-24V-3000 SP IP67 PWM 120MM 1896384

The NF-F12 PPC-24V-3000 SP IP67 PWM industrial case fan is specifically designed for demanding industrial environments that require a high level of cooling. The NF-F12 industrialPPC (Protected Performance Cooling) offers greater performance and robustness than the original retail model. The 24V SP version includes the NE-FD5 integrated circuit, which provides highly efficient, single-phase fan control. It is therefore suitable for 24V applications in the industrial and automotive sectors. This fan can suppress inrush current. Its sophisticated design features extremely robust electronics that protect it from damage caused by surges, allowing it to operate safely even in industrial environments. With the aerodynamic efficiency of the NF-F12 and thanks to the high power of the single-phase motor, the industrialPPC SP version delivers improved airflow and pressure while keeping noise and power consumption low. Its housing, made of glass-fibre-reinforced polyamide, and certified water and dust protection ensure that the housing is not damaged. The bearing with SSO2 Bearing technology has an MTTF of more than 150,000 hours. Thanks to its renowned reliability, the NF-F12 industrialPPC is the ideal choice for the most demanding applications where increased airflow and uncompromising reliability are required.
Part number: NF-F12 industrial PPC-24V-3000
Type: Box Fan
Fixation: screw-mounted
Volume: 43,5 dB
Speed: 1,600 to 3,000 rpm
Fan storage : SSO 2
Airflow: 186.7 m³/h
Airflow: up to 7,63
Power connector: 4 pins PWM
Voltage range: 24 volts
Power consumption: 1.68 watts
Dimensions (LxWxH) - Fan 1: Quantity: 1 unit(s), Width: 120 mm, Height: 120 mm, Depth: 25 mm
