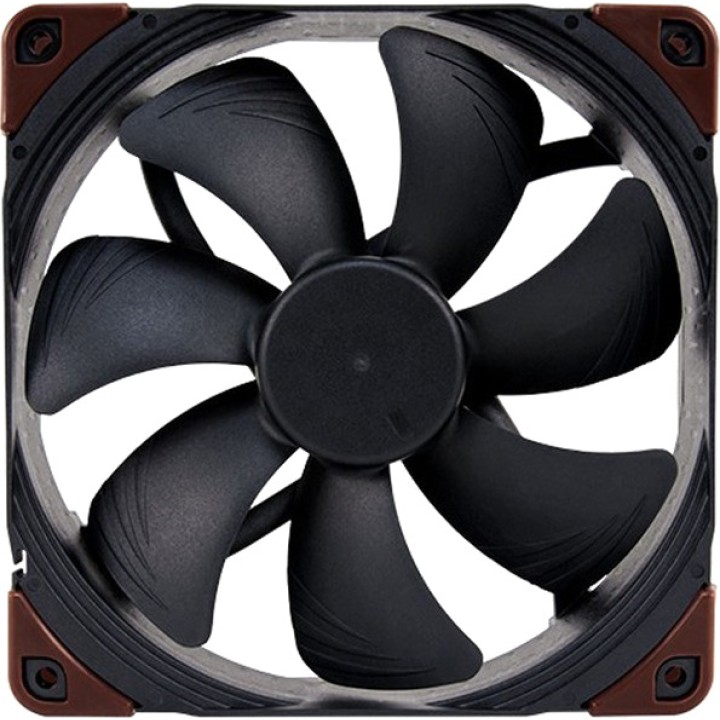

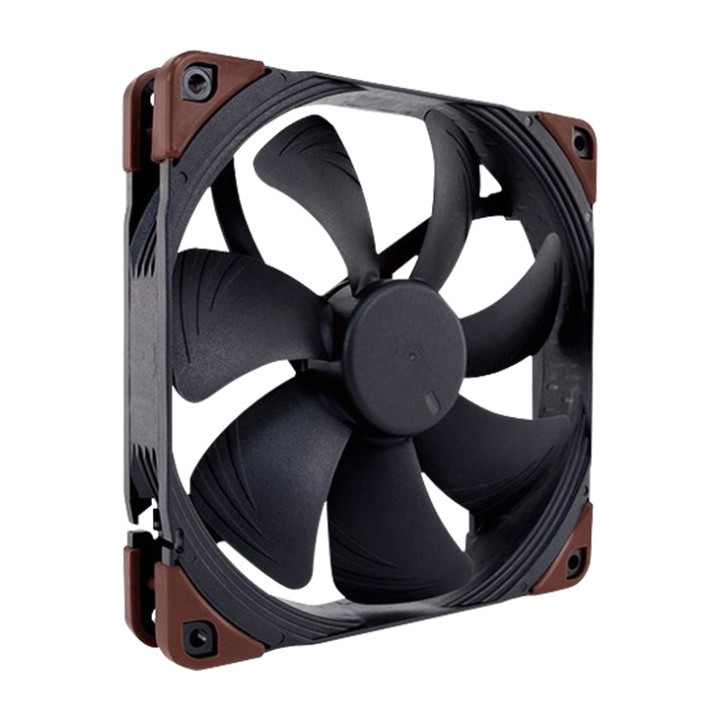

NOCTUA PC case fan NF-A14 INDUSTRIALPPC-3000 PWM 140MM 1142339

Designed for the most demanding industrial applications that require improved cooling performance and more advanced protection, Noctua's NF-A14 industrialPPC (Protected Performance Cooling) is a rugged, high-speed version of the company's award-winning model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a new three-phase motor, the industrialPPC version offers superior airflow and pressure performance while maintaining low noise and power consumption compared with high-speed fans. Its glass-fibre-reinforced polyamide construction and certified protection against water and dust make the NF-A14 industrialPPC suitable for use in extreme environments, while the renowned SSO2 bearings ensure a mean time between failures (MTBF) of more than 150,000 hours. This product comes with Noctua's proven reliability and a 6-year manufacturer's warranty, making the NF-A14 industrialPPC the ideal choice for the most demanding applications requiring higher airflow and maximum reliability. Award-winning NF-A14 design Having received more than 100 awards and recommendations from the international press, Noctua's NF-A14 has become the best and safest choice for 140 mm cooling requirements. Its renowned efficiency has convinced tens of thousands of customers around the world. 3000 rpm industrialPPC version With twice the speed of the 1500 rpm version, the NF-A14 industrialPPC-3000 delivers extreme airflow and pressure performance. The robust polyamide construction characteristic of the industrialPPC series and its advanced protection features make this fan ideal for the most demanding industrial applications. Three-phase motor design While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase, 6-slot design, which provides a smoother transition between slots and thus enables even smoother, quieter operation, reduced vibration and unprecedented energy efficiency. Improved energy efficiency While the standard NF-A14 is one of the most efficient 140 mm, 1500 rpm fans, the industrialPPC version with its three-phase motor offers a further 10% reduction in power consumption compared with the 2000 rpm version. Glass-fibre-reinforced polyamide construction Both the rotor and frame of Noctua's industrialPPC fans are made entirely of glass-fibre-reinforced polyamide. This makes the fans even more robust and resistant than standard glass-fibre-reinforced PBT fans. Certified IP52 water and dust protection Thanks to a special coating covering the motor and printed circuit board (PCB), the NF-A14 industrialPPC has an IP52 protection rating. This means it is not only highly resistant to dust, but also resistant to water droplets, equivalent to 3 mm of precipitation per minute. Flow Acceleration Channels The NF-A14 rotor features Flow Acceleration Channels on the suction side. By increasing airflow velocity in the crucial outer regions of the blades, this measure reduces flow separation on the suction side, resulting in greater efficiency and lower vortex noise. AAO frame Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads, as well as the stepped inlet design and internal surface microstructures (both Noctua proprietary technologies), which further optimise the fan's acoustic efficiency and performance. Stepped inlet design Noctua's stepped inlet design adds turbulence at the air inlet to facilitate the transition from laminar to turbulent flow, reducing tonal inlet noise, improving flow attachment and increasing suction capacity, especially in space-constrained environments. Internal surface microstructures As the fan blade tips interact with the boundary layer created by the internal surface microstructures, flow separation from the suction side of the blades is significantly reduced, resulting in lower blade-passing noise, improved airflow and greater pressure efficiency. Integrated anti-vibration pads The integrated anti-vibration pads, made of extra-soft silicone, minimise the transmission of even the smallest vibrations while maintaining compatibility with all standard mounting systems and fan clips used on heatsinks. SSO2 bearings The NF-A14 industrialPPC features the second, further optimised generation of Noctua's renowned and efficient SSO bearings. With SSO2, the rear magnet is positioned closer to the axis to provide improved stability, precision and durability. Metal bearing To ensure the highest possible manufacturing precision, minimal tolerance and excellent long-term stability, the NF-A14 industrialPPC features a CNC-milled bearing made entirely of brass. Custom-designed PWM IC with SCD Providing fully automatic PWM speed control, the NF-A14 industrialPPC uses the NE-FD2 PWM IC, specially designed by Noctua for three-phase motors. The NE-FD2 integrates Noctua's patented Smooth Commutation Drive (SCD) technology, which suppresses PWM switching noise and therefore makes the fan quieter at lower speeds. 6-year manufacturer's warranty Noctua fans are known for their impeccable quality and long service life. Like all Noctua fans, the NF-A14 industrialPPC has a mean time between failures of more than 150,000 hours and a full 6-year manufacturer's warranty. Customisable for industry customers At the request of industry customers, certain features, certifications, packaging options and accessories can be customised. For example, we can offer 24V versions, different connectors and speeds, different cable lengths, or UL and TÜV certifications. Please feel free to contact us to request these customisable options.
Part number: NF-A14 i PPC-3000 PWM
Type: Box Fan
Fixation: screw-mounted
Volume: 41,3 dB
Speed: 800 to 3,000 rpm
Fan storage : SSO 2
Airflow: 269,3 m³/h
Airflow: up to 6,58
Power connector: 4 pins PWM
Voltage range: 12 volts
Power consumption: 6.6 watts
Dimensions (LxWxH) - Fan 1: Quantity: 1 unit(s), Width: 140 mm, Height: 140 mm, Depth: 25 mm
GPU heat sink weight - Total: 321 grams
