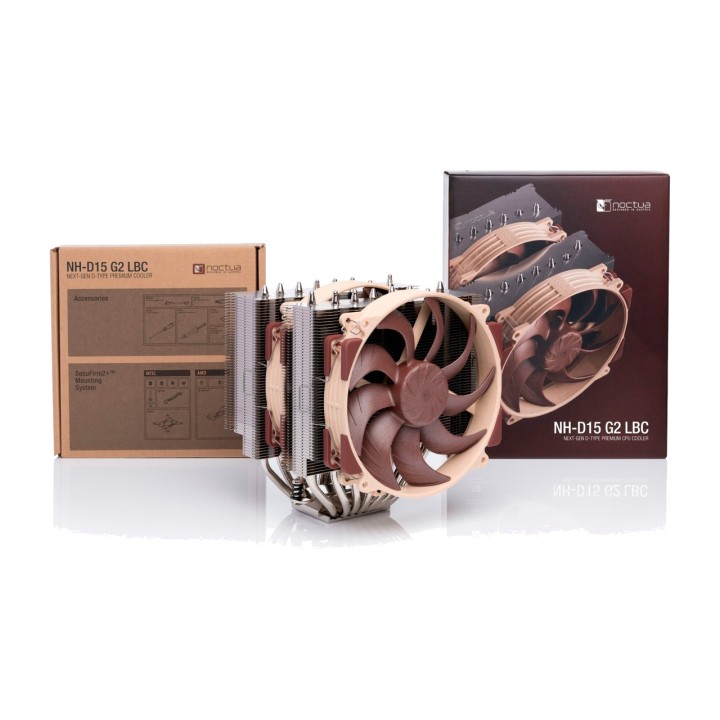

NOCTUA Air CPU cooler NH-D15 G2 LBC 100067141

The NH-D15 G2 LBC is the improved second generation of the iconic Noctua NH-D15. Featuring two state-of-the-art NF-A14x25r G2 PWM fans with speed offset, eight heatpipes and asymmetrical heatsink towers, it achieves even higher cooling performance than its predecessor while maintaining excellent quietness. The low base convexity (LBC) version has been optimised for relatively flat processors and offers excellent contact quality on AMD AM5 CPUs, even when the included offset mounting option is not used. In addition to its higher performance, the NH-D15 G2 LBC also offers improved compatibility thanks to its stepped design and no longer overhangs the top PCIe x16 slot on most current motherboards. The high-quality complete package of the NH-D15 G2 LBC is rounded off by the proven SecuFirm2 professional mounting system, which includes the supplied NM-SD1 screwdriver and the even more powerful NT-H2 thermal paste.
Part number : NH-D15 G2 LBC
CPU Cooler with Fan
CPU cooler design: Dual tower
Socket : AM4, AM5
Mounting: For ATX motherboards, screw-mounted
Volume: 19,7 dB up to 24,8 dB
CPU - Up to max. TDP of: 228 watts
with temperature sensor: Thermal paste cushion
Speed: 1.250 up to 1.500 rpm
Material: Aluminium, Copper, Nickel
Connected heat pipes: 16 pcs.
Fan storage : SSO 2
Airflow: 127,1 m³/h - 155,6 m³/h
Airflow: by 1,3 up to 2,56
Power connector: 4 pins PWM
Voltage range: 12 volts
Power consumption: 2.28 watts
Dimensions (LxWxH) - Fan 1: Quantity: 2 unit(s), Width: 140 mm, Height: 140 mm, Depth: 25 mm
GPU heatsink weight - CPU cooler: 1.180 grams
