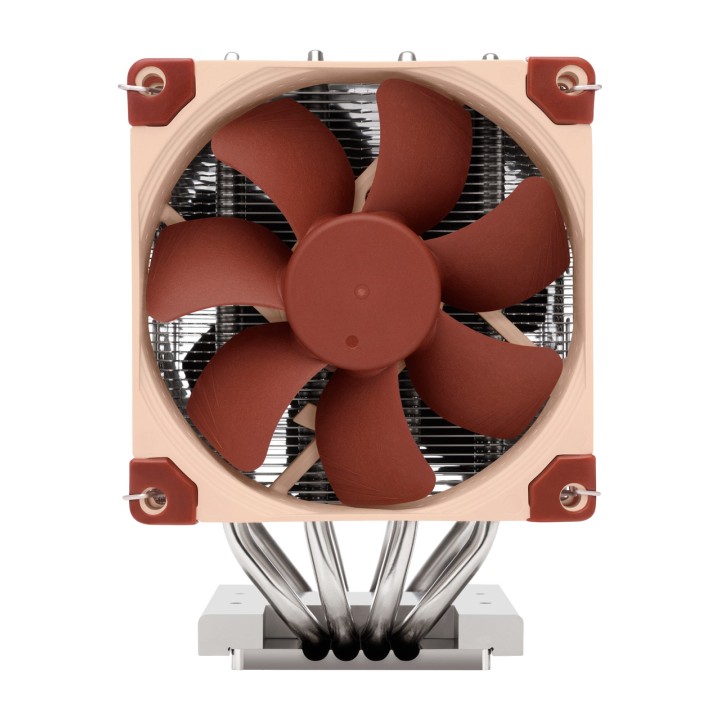

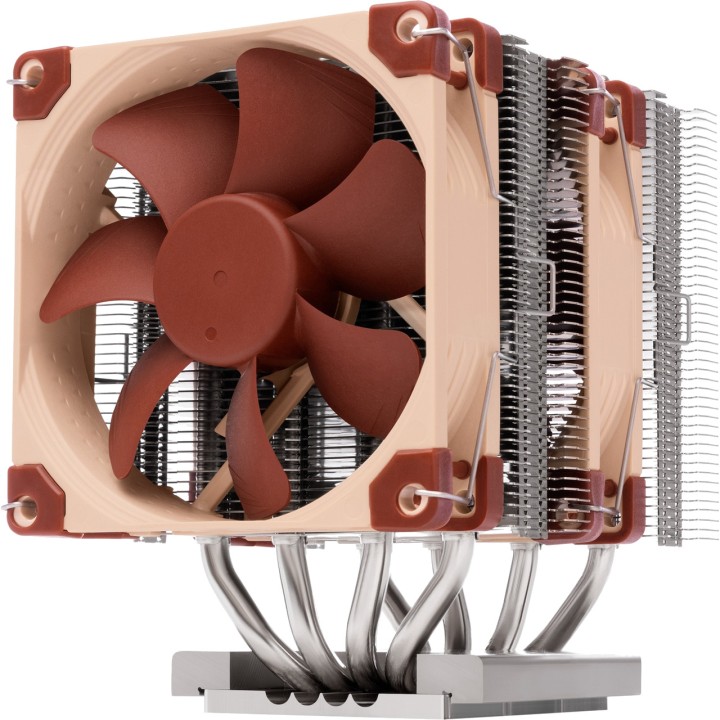

NOCTUA Server CPU cooler NH-D9 TR5-SP6 4U 100020806

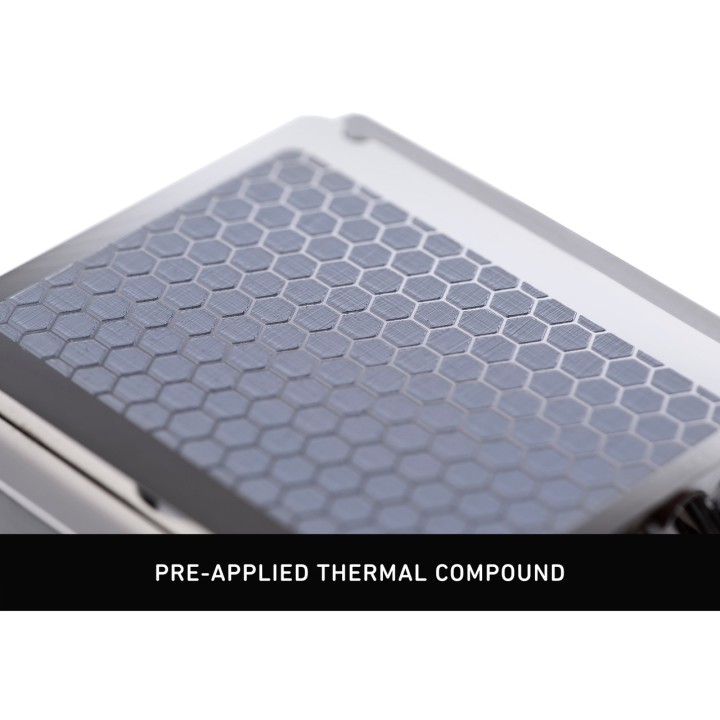

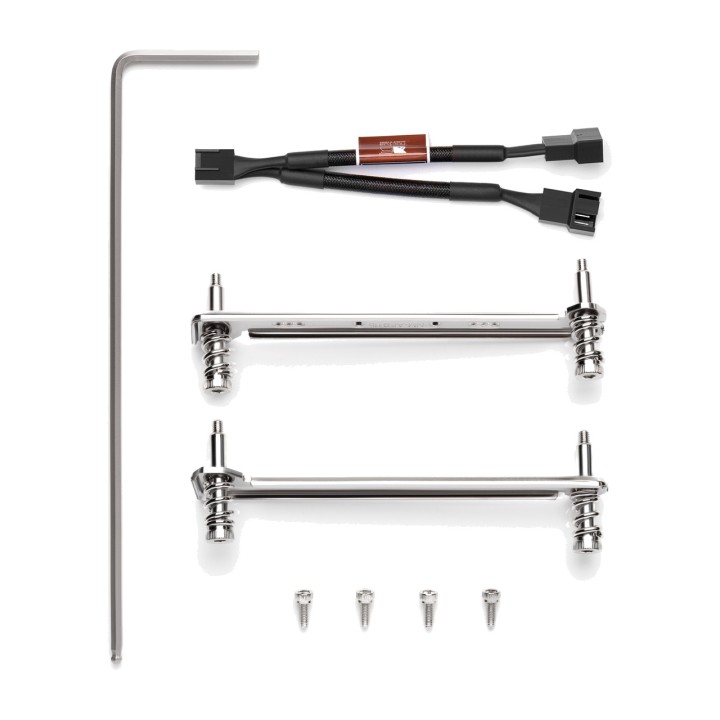

The NH-D9 TR5-SP6 4U is a quiet 92 mm CPU cooler for workstations and servers with AMD Threadripper and Epyc processors using TR5/SP6 (sTRX5/sWRX9) sockets. Based on the proven design of the DX model, with a dual-tower heatsink and a contact area covering the entire heat spreader, the TR5-SP6 uses two award-winning 92 mm NF-A9 PWM fans in the high-speed variant, controlled by PWM, to achieve high performance and excellent acoustics. The airflow direction of the NH-D9 is parallel to the base's longitudinal axis, making it ideal for enclosures where hot air is dissipated in that direction. Complete with pre-applied NT-H2 thermal paste and the SecuFirm2 professional mounting system for TR5/SP6, adapted to the platform's higher pressure specifications, the NH-D9 TR5-SP6 4U is a premium all-in-one package for quiet cooling of TR5-based Threadripper workstations and SP6-based Epyc servers in 4U chassis.
Part number : NH-D9 TR5-SP6 4U
CPU Cooler with Fan
CPU cooler design: Dual tower
Socket: SP6, sTRX5, s WRX9
Fixation: screw-mounted
Volume: 30.6 dB
CPU - Up to max. TDP of: 134 watts
with temperature sensor: Thermal paste cushion
Speed: 400 to 2,500 rpm
Material: Aluminum, Copper
Connected heat pipes: 8 pcs.
Fan storage : SSO 2
Airflow: 96.3 m³/h
Power consumption: 1.68 watts
Dimensions (LxWxD) - Fan 1: Number: 2 unit(s), Width: 92 mm, Height: 25 mm, Depth: 92 mm
