ALPHACOOL AIO liquid cooling for CPU EISBAER-PRO HPE AURORA 360MM 1888838

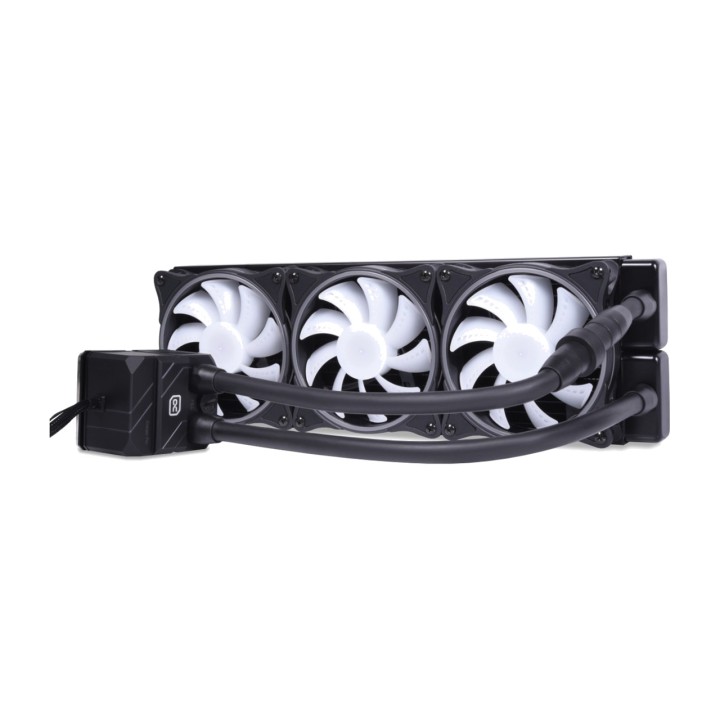

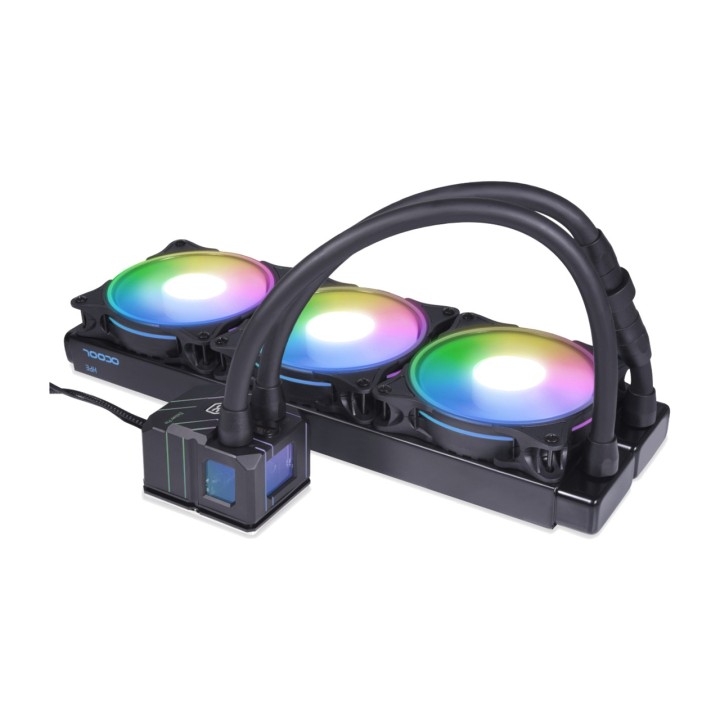

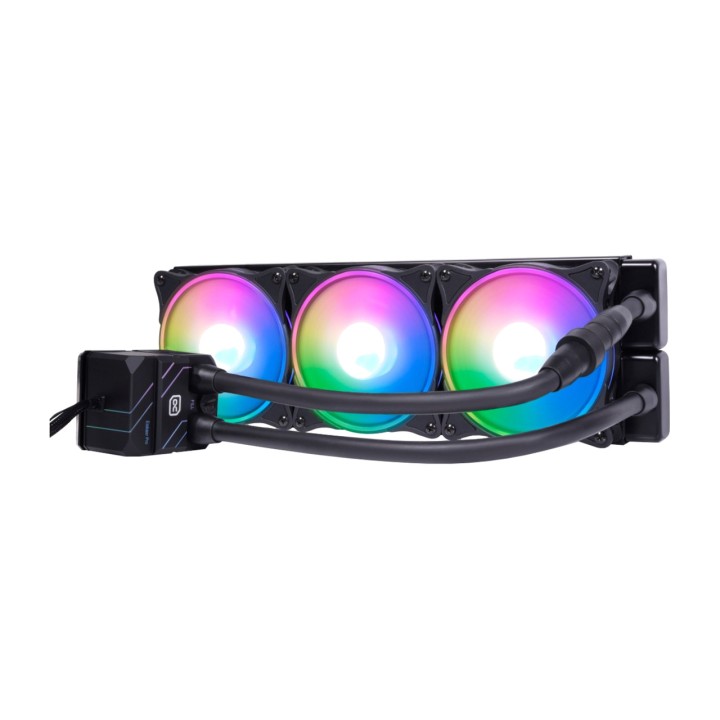

The HPE Aurora 360 Eisbaer Pro CPU AIO water cooling system features the extremely powerful NexXxos HPE Performance full-copper radiator, equipped with high-performance 120 mm Aurora Rise fans. All the components used come from the classic DIY water-cooling sector and are also used for the most part in enterprise server products. The Alphacool Eisbaer Pro HPE Aurora 360 AIO CPU cooler is a powerful all-in-one water-cooling system that is as easy to install as an AIO, but offers the performance of a pre-assembled, pre-filled custom loop. The HPE NexXxos ST30 radiator uses the same materials as previous NexXxos models, but takes things a step further technically. Thanks to its denser internal structure, the number of water channels and copper fins could be increased. This means that a greater volume of water is in direct contact with the cooling fins, greatly improving heat transfer. The increased number of fin rows and their shorter length also make much more efficient use of the cooling surface. At higher ambient temperatures and fan speeds, the performance gap compared with standard NexXxoS radiators even increases progressively. The radiator base covers the entire area of the respective processors. The cooling-fin surface extends over all known processor cores, measuring approximately 55 x 42 mm. This makes it possible to flood all the hot spots on a CPU directly with water and cool them optimally. The cooling fins are 0.4 mm thick and are also spaced an optimal 0.4 mm apart. A total of 58 cooling fins are present on the radiator base. The radiator base is only 3 mm thick, which means that heat reaches the water as quickly as possible and can be dissipated. The Eisbaer Pro Aurora cooler uses the very compact and small DC-LT 2 pump. It provides enough power to integrate other components, such as GPU water blocks or radiators, into the water loop. The Alphacool Rise Aurora fan offers a wide control range as well as excellent digital aRGB LED lighting. The individually controllable 5V aRGB LEDs, combined with the fan's special design, create unique effects. The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. It also offers zero-RPM control, allowing the fan to be regulated down to 0 rpm, after which it starts at approx. 350 rpm. At 800 rpm, the fan is almost silent, while still providing good airflow (118,9 m³ / h) together with high static pressure (3,17 mm / H2O). The hose fittings come from the standard DIY segment and therefore use a G1/4" thread. They can therefore be replaced very easily. The black TPV hose, like the fittings, comes from the Alphacool ES series, which is mainly installed in servers and workstations. The hose does not require plasticisers and, unlike classic PVC hoses, does not deform even at high temperatures. The quick-release coupling is not made of heavy brass, but of extremely lightweight, durable and robust nylon. The quick-release coupling is compatible with many other models in the Alphacool product range.
Part number: 13074
Type: Liquid Cooling Kit
Socket: 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2011, 2011-3, 2066, 3647, AM4, SP3, 3647, sTRX4, s WRX8, AM5
Volume: 31,5 dB
with temperature sensor: Thermal paste pad, LED lighting
LED lighting: yes
Speed: 2,500 rpm
Material: Copper, Brass
Airflow: up to 3,17
Radiador size: 3x 120 mm
Pump - Input voltage: from 6 to 13.5 volts
Closed system: Closed system

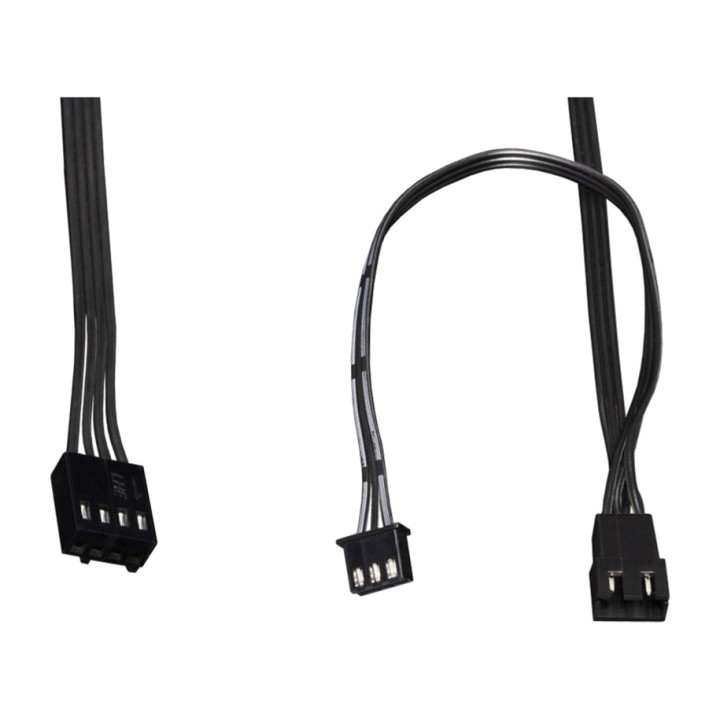

Power connector: 4 pins PWM
Voltage range: 12 volts
Dimensions (LxWxH) - Fan 1: Quantity: 3 unit(s), Width: 120 mm, Height: 120 mm, Depth: 25 mm
