ALPHACOOL AIO liquid cooling for CPU CORE OCEAN T38 280MM 13053 1855657

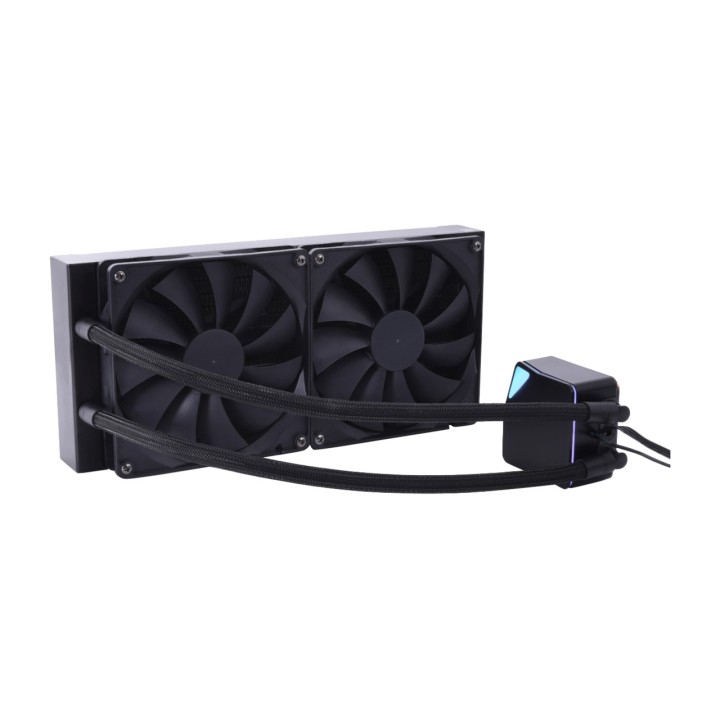

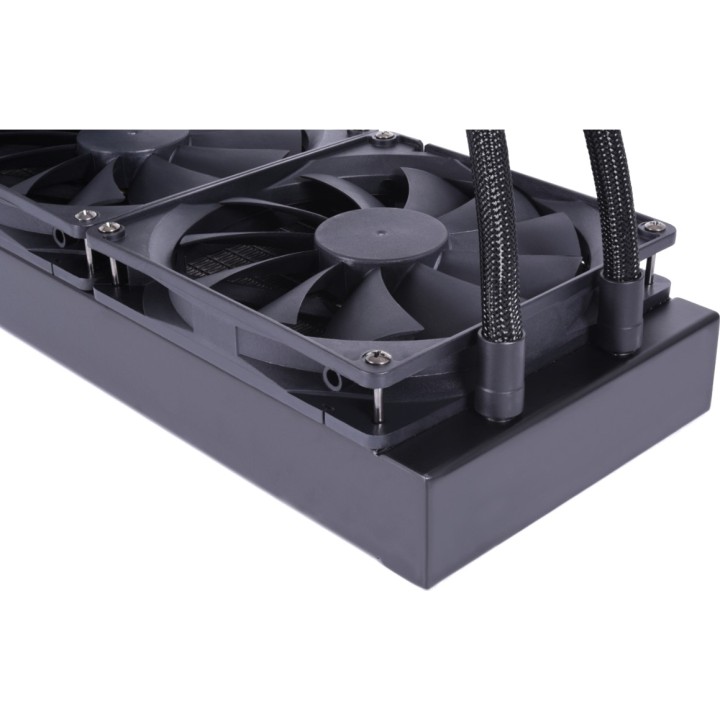

The Alphacool Core Ocean T38 AIO 280mm is an all-in-one solution that provides an entry into performance-oriented CPU water cooling thanks to its excellent price-performance ratio. The difference compared to the Eisbaer CPU AiO is that the Ocean All-in-One is not expandable. It does not support adding additional components such as GPU coolers, radiators or expansion tanks. However, this is not necessary. The selection of components and the design of the Core Ocean ensure a long service life with low maintenance for water cooling all common conventional AMD and Intel sockets. Compared to Alphacool's all-copper models, the T38 aluminium radiator has additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the water flow inside the radiator. Thanks to its low height of 38 mm, the radiator with its single-sided fan assembly fits in narrower cases and enables powerful CPU water cooling. The fan can be controlled from 0 to 2000 rpm via the 4-pin PWM connector. The cable is 40 cm long. This allows you to connect the fan to the motherboard or a dedicated controller without additional adapter cables or extensions. At 2000 rpm, it delivers an airflow of 92.3 CFM, together with a high static pressure of 2.53 mm/H2O. This makes the fan perfect for installation on radiators in a water-cooling system. As with all Alphacool products, the radiator base is made of copper and features very fine cooling fins distributed across the entire base. A jet plate ensures accelerated flow through the cooling fins, increasing cooling capacity. The water flow is optimised so that all areas of the radiator base are cooled evenly. The cooler is compatible with all common conventional AMD and Intel sockets. The installed pump has a speed range of 2500 - 3500 RPM (+/- 10%) and can be controlled via PWM. The pump is connected to the motherboard or an external controller via the existing 4-pin fan connector. This allows the pump's speed range to be controlled and monitored. The FEP hoses are 40 cm long, sleeved and very flexible. The 360° swivel fittings on the radiator and the radiator are permanently installed and cannot be replaced. However, the combination of hose and fitting allows the AiO to be positioned very flexibly, even in a narrow PC case.
Part number: 13053
Type: Liquid Cooling Kit
Socket : 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2066, AM4, AM5
Fixation: screw-mounted
Volume: 34.3 dB to 36 dB
Speed: 2.000 rpm
Material: Aluminum
Fan storage: Hydraulic
Airflow: 92.3 cfm
Airflow: up to 2,53
Radiator size: 2x 140 mm
Pump - Speeds: 2,500 rpm, 3,500 rpm
Closed system: Closed system
Power connector: 4 pins PWM
Voltage range: 7 - 14 volts
Dimensions (LxWxH) - Fan 1: Quantity: 2 unit(s), Width: 140 mm, Height: 140 mm, Depth: 25 mm
