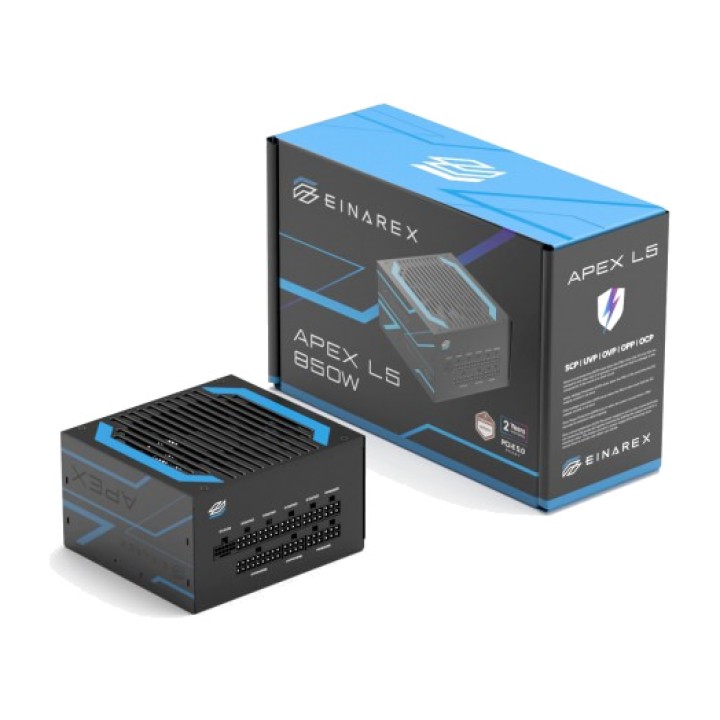

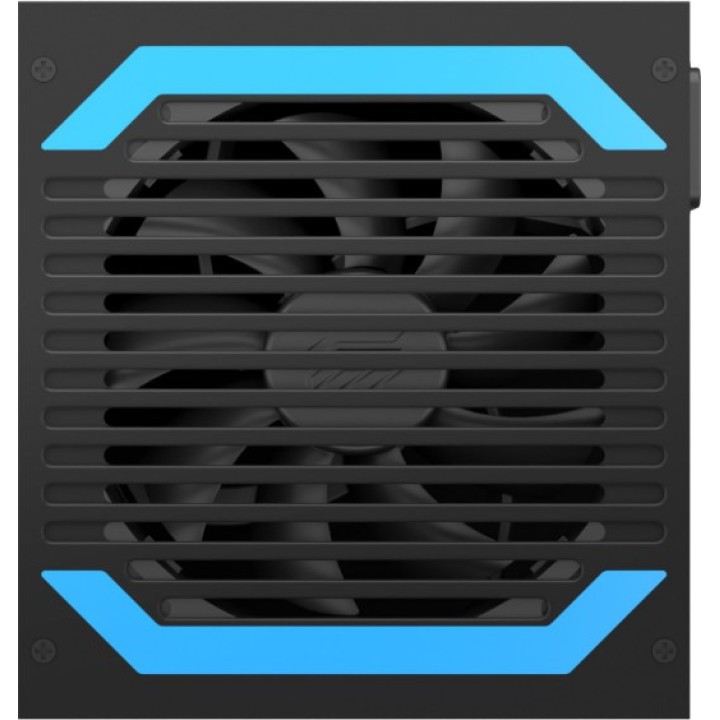

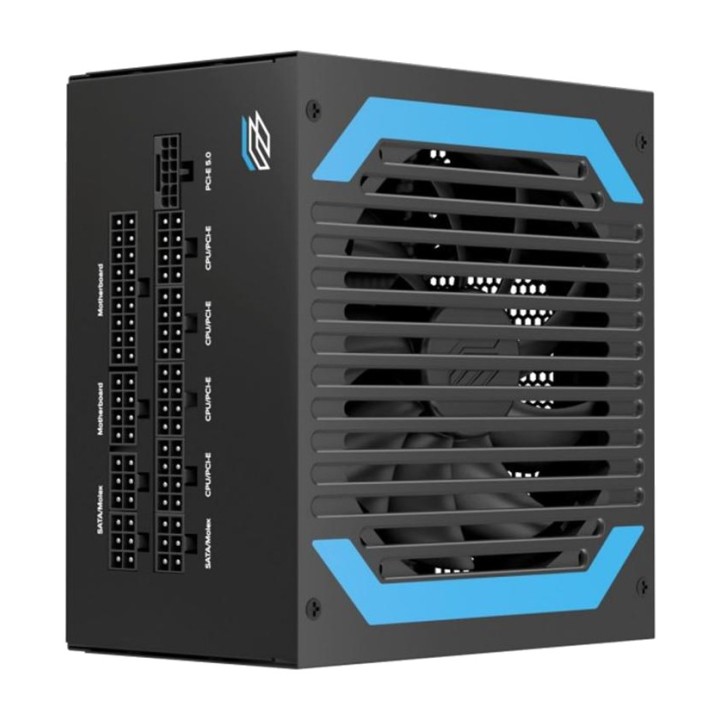

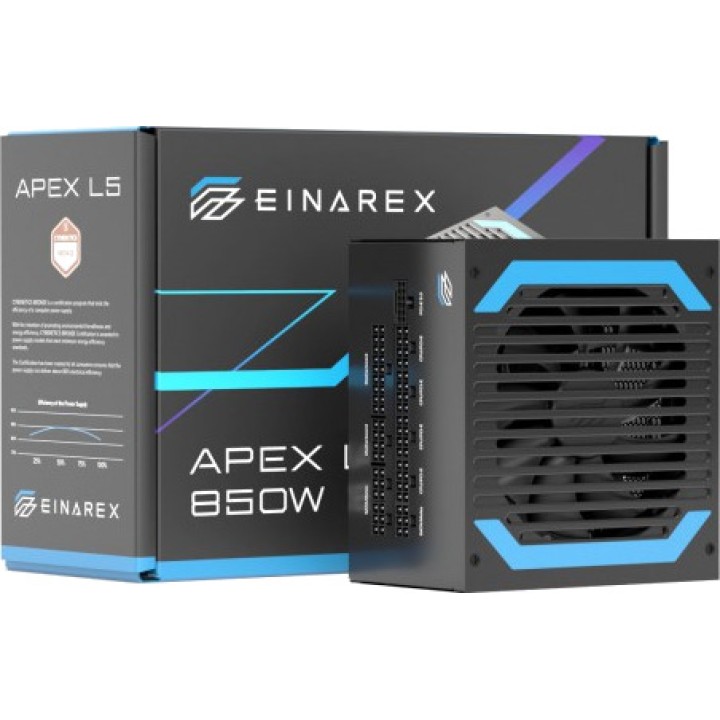

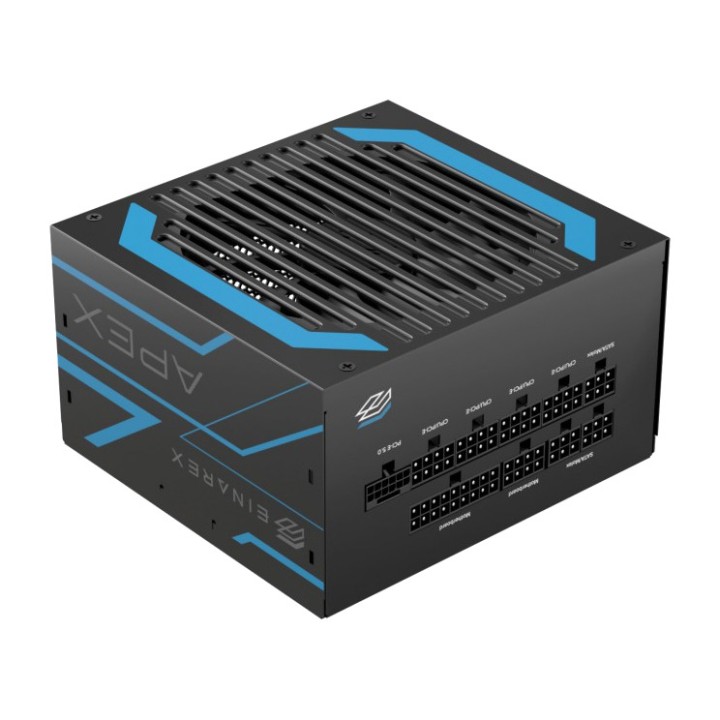

EINAREX Modular ATX power supply for PC APEX-L5 850W DSP0000043317

Features of the Einarex Aplex L5 80+ Bronze 3.1 Full Modular 850W ATX Power Supply
The Einarex Aplex L5 850W is an ATX power supply designed for high-performance systems that require stable, efficient and safe power. With Cybenetics Bronze certification, ATX 3.1 compatibility and a fully modular design, it offers a versatile solution for gaming setups and demanding workstations. Its extensive connectivity and electrical protection systems make it possible to build a powerful, well-organised system.
850W power and Bronze efficiency
With 850W of power, the Einarex Aplex L5 is ready to power systems with high-performance processors and graphics cards. Its Cybenetics Bronze certification attests to its energy efficiency, while the Active PFC system helps optimise energy use and the power supply’s electrical operation.

Total power: 850W.
Efficiency certification: Cybenetics Bronze.
Format: Intel ATX 12V.
Power factor correction: Active PFC.
AC input: 100-240V AC, 6-12A, 47-63Hz.

ATX 3.1 compatibility and connectivity 12V-2x6
ATX 3.1 compatibility allows this power supply to be integrated into modern systems that require power delivery suited to the latest generations of components. It features a 12+4-pin 12V-2x6 connector for compatible graphics cards, as well as traditional PCI Express connections for greater flexibility when choosing hardware.

STANDARD : ATX 3.1.
12V-2x6 connector: 1 x 12+4-pin.
PCI-E connectors: 3 x 8/6-pin.
EPS12V connectors: 2 x 8/4-pin.

Full Modular design for an organised build
Its fully modular cabling system lets you connect only the cables required by each configuration. This makes component installation easier, reduces the build-up of unnecessary cables and helps keep the inside of the case clearer, improving organisation and airflow.

Cable type: Full Modular.
Main connector: 1 x 24-pin ATX.
SATA connectors: 6 units.
Peripheral connectors: 2 x 4-pin.
Advantage: flexible installation and improved cable management.

Electrical protections for greater safety
The Einarex Aplex L5 features a set of electrical protections designed to prevent damage caused by abnormal operating conditions. These functions help protect both the power supply and connected components against situations such as overloads, voltage fluctuations, overcurrent or short circuits.

OPP: over-power protection.
OVP: overvoltage protection.
UVP: undervoltage protection.
SCP: short-circuit protection.
OCP: overcurrent protection.
Active PFC: active power factor correction.

Compact form factor and safety certifications
With dimensions of 140 x 150 x 86 mm, this power supply features an ATX form factor that makes it easy to fit into compatible cases. It also has various safety and compliance certifications, confirming that it meets the regulatory requirements applicable to electronic equipment.

Dimensions: 140 x 150 x 86 mm.
Form factor: Intel ATX 12V.
Safety and compliance certifications: CE, RoHS, UKCA, CB and FCC.
Efficiency certification: Cybenetics Bronze.
Volume (m ³): 0.0064
